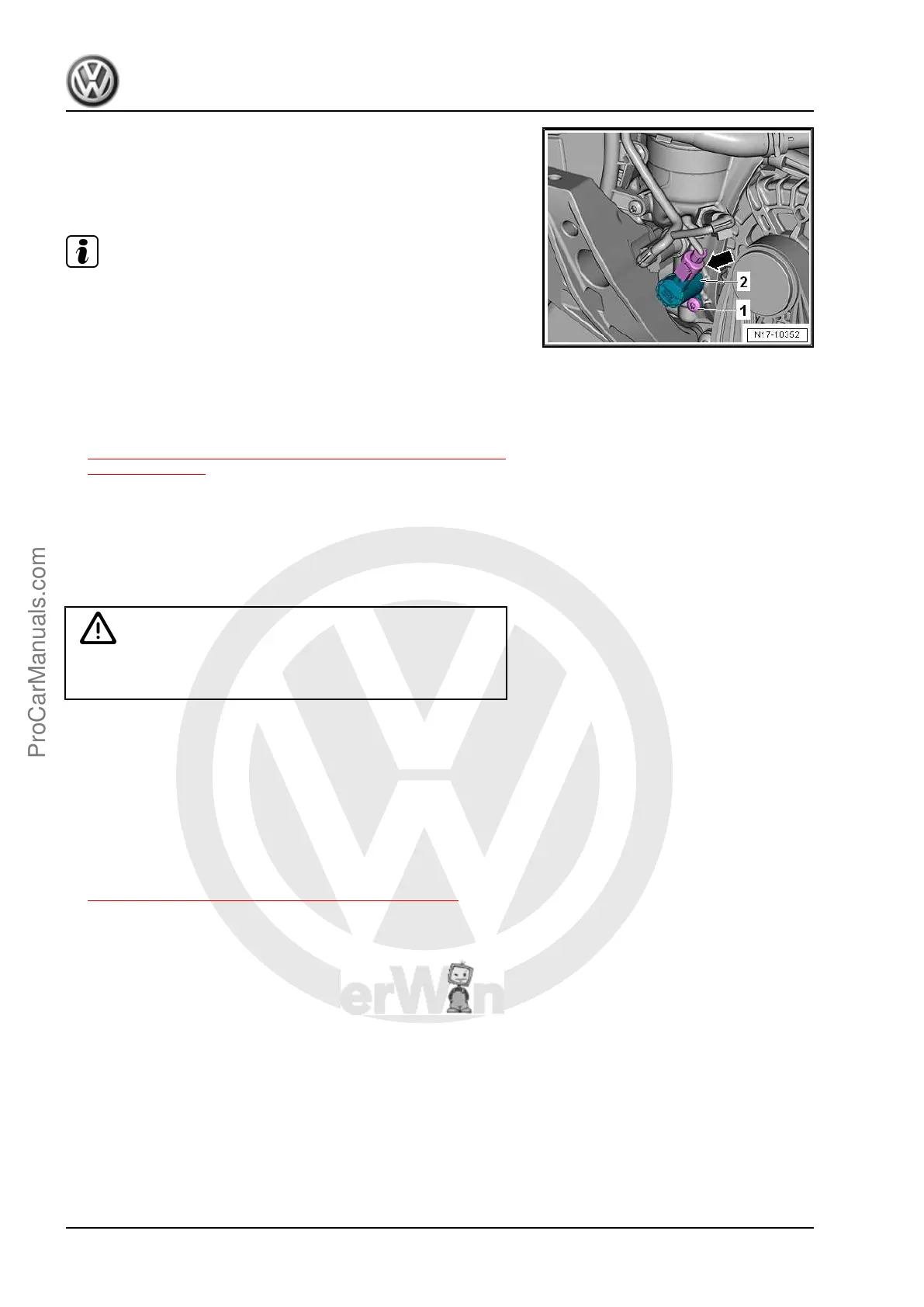

– Remove the bolt -1- and remove the Piston Cooling Nozzle
Control Valve - N522- -2-.
Installing
Install in reverse order of removal. Note the following:
Note
♦
Replace the O-rings.
♦
To prevent oil loss insert the Piston Cooling Nozzle Control
Valve - N522- immediately in the opening.
– Check the oil level. Refer to ⇒ Maintenance ; Booklet 36.1 ;
Procedure Descriptions; Engine Oil Level, Checking .
Tightening Specifications
♦ Refer to
⇒ 4.2 Overview - Oil Pressure Switch/Oil Pressure Regulator
Valve, page 198
4.8 Oil Pressure Regulation Valve - N428- ,
Removing and Installing
Special tools and workshop equipment required
♦ Used Oil Collection and Extraction Unit - SMN372500-
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ O-ring - Oil Pressure Regulation Valve
♦ Bolt - Oil Pressure Regulation Valve
Removing
– Remove the noise insulation. Refer to ⇒ Body Exterior; Rep.
Gr. 66 ; Noise Insulation; Overview - Noise Insulation .
– Remove the ribbed belt. Refer to
⇒ 1.2 Ribbed Belt, Removing and Installing, page 46 .
– Place the Used Oil Collection and Extraction Unit -
SMN372500- under the engine.
– Disconnect the connector -1-.
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
206 Rep. Gr.17 - Lubrication
