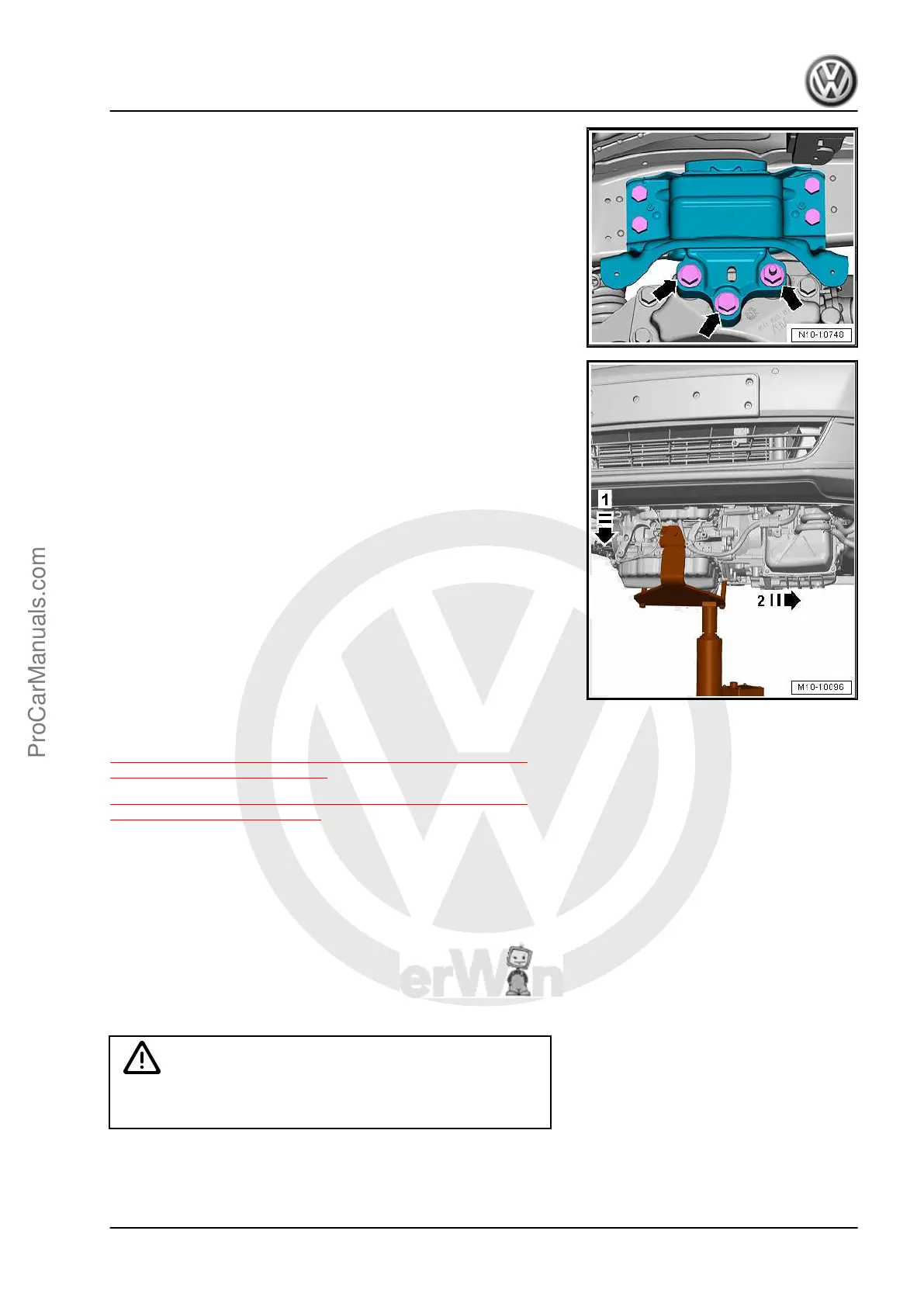

– Remove the transmission mount bolts -arrows- completely.
– Carefully lower the engine/transmission sub-assembly in di‐
rection of -arrow 1-.
– Carefully guide the engine/transmission sub-assembly for‐
ward and out to the left in direction of -arrow 2-.
1.2 Engine and Transmission, Separating
⇒ 1.2.1 Engine and Transmission, Separating, Vehicles with
Manual Transmission, page 19 .
⇒ 1.2.2 Engine and Transmission, Separating, Vehicles with
DSG® Transmission, page 21 .
1.2.1 Engine and Transmission, Separating,
Vehicles with Manual Transmission
Special tools and workshop equipment required
♦ Engine Support Bridge - Additional Hooks (2 pc.) - 10-222A/
2-
♦ Shop Crane - VAS6100-
♦ Transmission Lift Hook - T40013-
♦ Engine/Gearbox Jack - Engine Support - T10359A-
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Bolts - Transmission Mount
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
1. Engine, Removing and Installing 19
