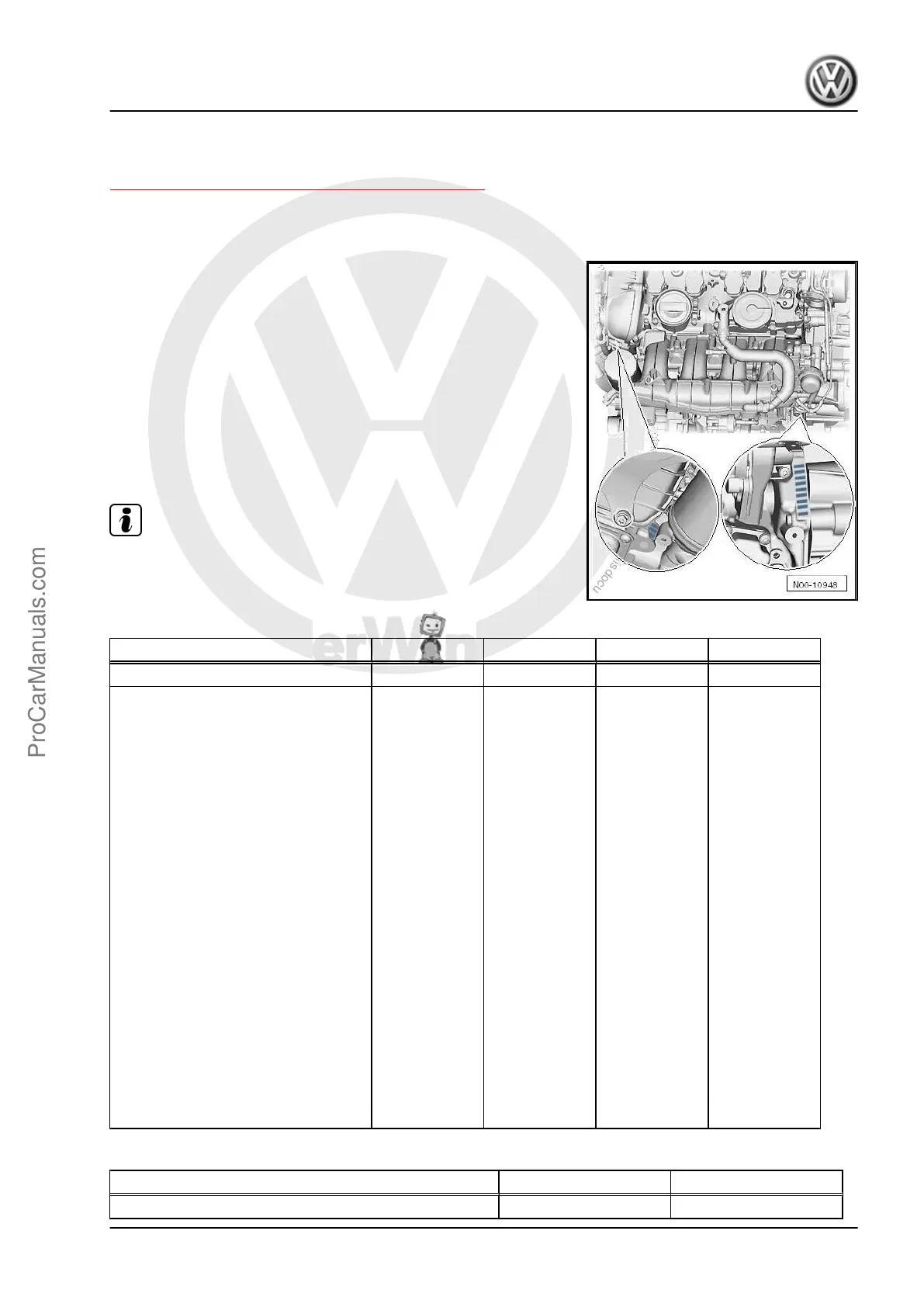

2 Identification
⇒ 2.1 Engine Number/Engine Characteristics, page 3
2.1 Engine Number/Engine Characteristics
Engine Number
The engine number (engine codes and serial number) are lo‐
cated at the engine/transmission joint.
The engine code is also printed behind the oil filter on the cylinder
block.
There is also a label glued to the timing chain cover with the en‐
gine code and serial number.
The first three digits describe the mechanical structure of the en‐
gine and are still stamped on the engine. The fourth digit de‐
scribes the engine output and torque and depends on the engine
control module. Four-digit engine codes are found on the type
plate and vehicle data label. It can also be read via the Engine
Control Module (ECM).
Note
Vehicle data label locations. Refer to ⇒ Maintenance ; Booklet
36.1 ; General Information; Vehicle Data Label
Engine Data
Code Letters CXBA CXBB CNSA CNSB
Manufactured from 07/2014 07/2014 07/2014 07/2014
Emissions values SULEV SULEV SULEV SULEV
Displacement liter 1.8 1.8 1.8 1.8
Output kW at RPM 125 at 4800 to
6200
125 at 4520 to
6250
125 at 4800 to
6200
125 at 4500 to
6200
Torque Nm at RPM 250 at 1500 to
4700
270 at 1600 to
4200
250 at 1500 to
4700
270 at 1500 to
4400
Bore diameter in mm 82.5 82.5 82.5 82.5
Stroke mm 84.1 84.1 84.1 84.1
Compression ratio 9.6:1 9.6:1 9.6:1 9.6:1
RON 95 95 95 95
Fuel Injection System Direct fuel in‐
jection
Direct fuel in‐
jection
Direct fuel in‐
jection
Direct fuel in‐
jection
Ignition se‐
quence
1-3-4-2 1-3-4-2 1-3-4-2 1-3-4-2
Turbocharger Turbocharger Turbocharger Turbocharger Turbocharger
Variable valve timing Intake and ex‐
haust camshaft
Intake and ex‐
haust camshaft
Intake and ex‐
haust camshaft
Intake and ex‐
haust camshaft
Valve stroke
adjustment
No No No No
Secondary Air Injection (AIR) Yes No Yes Yes
Valves per cylinder 4 4 4 4
Oil pressure control Yes Yes Yes Yes
Code Letters CXCA CNTA
Manufactured from 07/2014 From 11/2013
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
2. Identification 3
