❑ For the dual-mass flywheel
Note
Only six bolts are installed, two bolt openings remain open.

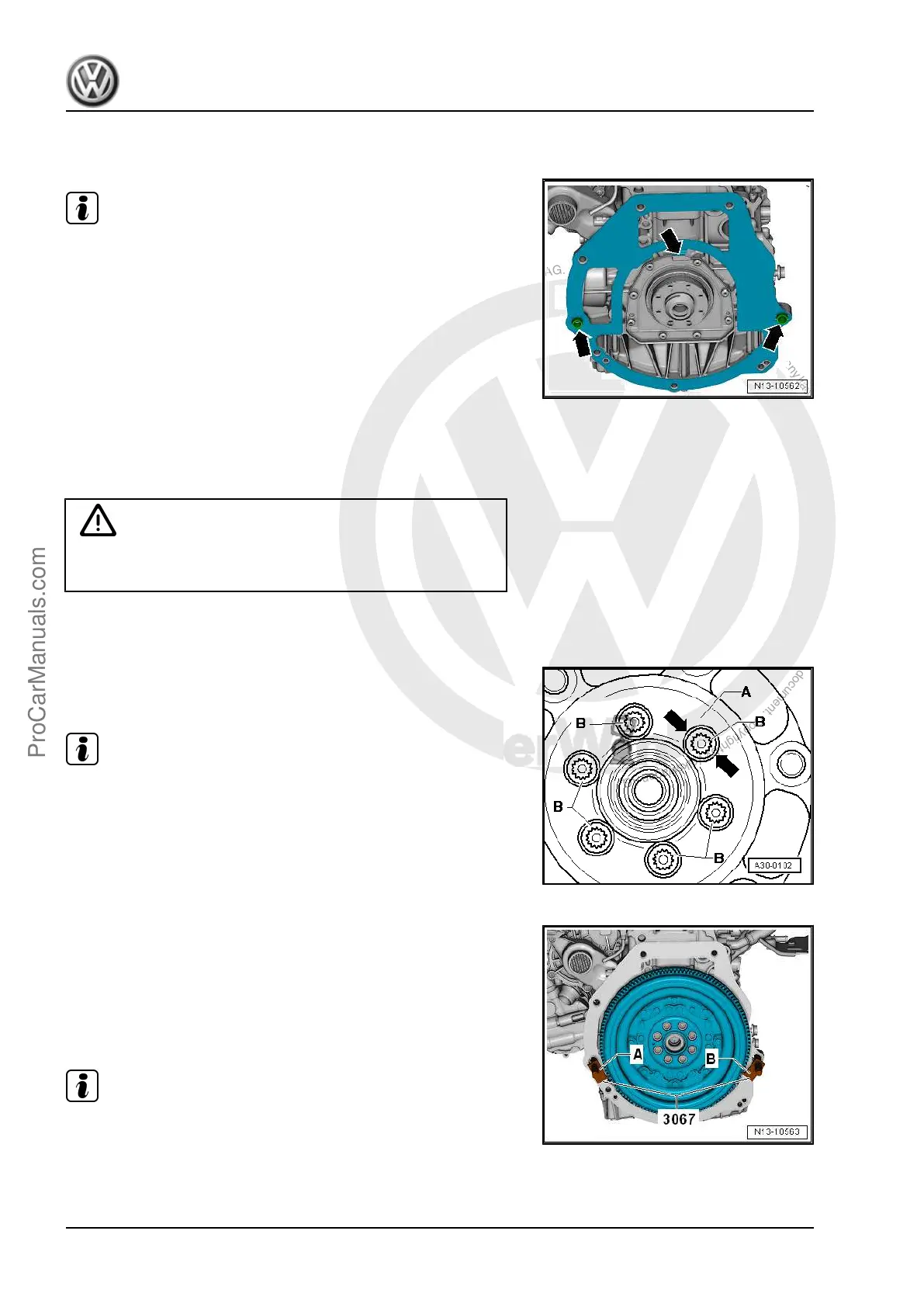

Installing Intermediate Plate
– Hook in intermediate plate at sealing flange and push it onto
the alignment sleeves -arrows-.
2.2 Flywheel, Removing and Installing
Special tools and workshop equipment required
♦ Flywheel Retainer - 3067-
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Bolts - Flywheel
Removing
• The transmission is removed.
Note
♦
Remove the bolts -B- by hand. Do not use an air-powered or
impact wrench.
♦
When removing bolts, ensure bolt head does not come in con‐
tact with the flywheel.
♦
Turn the flywheel -A- until the bolts -B- line up with the holes
-arrows-.
– Insert the Flywheel Retainer - 3067- into the hole in the cylin‐
der block -B-.
– Loosen and remove bolts for flywheel.
Installing
Install in reverse order of removal. Note the following:
Note
Replace the bolts that were tightened with an additional turn.
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
58 Rep. Gr.13 - Crankshaft, Cylinder Block
