OxyCRG (OCRG) Monitoring

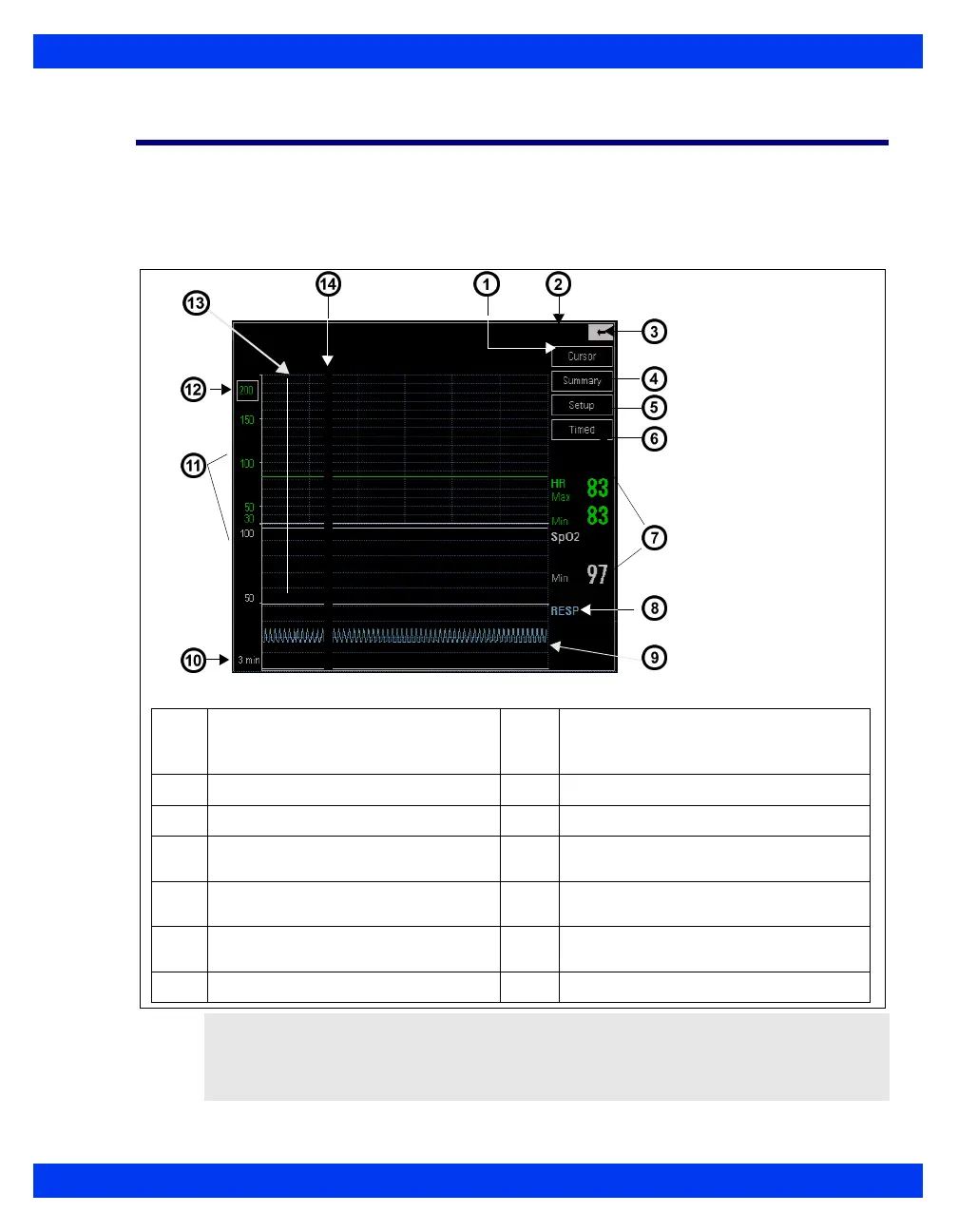

The monitor can display an oxycardiorespirogram (OxyCRG, or OCRG) in neonatal
mode. The OCRG displays three or six minutes of a continuously updated beat-to-beat
Heart Rate trend (bbHR), SpO
2
or tpO
2
/O
2
* trend, and respiration/etCO
2
waveform,
as well as apnea events. The monitor continues to update main screen parameters,
announce alarms, and initiate alarm recordings.
NOTE: When two tpO
2
/CO
2
pods are connected, each displays a parameter box on
the main screen. The labels of the second pod are marked by an asterisk (*), hence the
parameter label tpO
2
*. (For screen display, the tpO
2
/CO
2
parameter label is sometimes
shortened to tpO
2
.)
11:23:26
1
Activate cursor
8
Respiration/etCO
2
label (Apnea label
appears when an apnea event occurs
and is displayed.)
2
Cursor time
9
Respiration/etCO
2
waveform
3
Exit OCRG display
10
Time base
4
Display OCRG Review, Summary
menu (see page 12-10)
11
Values at cursor time
5
Display OCRG Setup Menu (see
page 12-12)
12
Scale
6
Trigger a timed recording of
displayed parameters
13
Cursor
7
Current parameter values
14
Eraser bar
