HARDWARE S ETUP
VF8 DELTA/DELTA XL/KAPPA 23-7
Hardware Setup

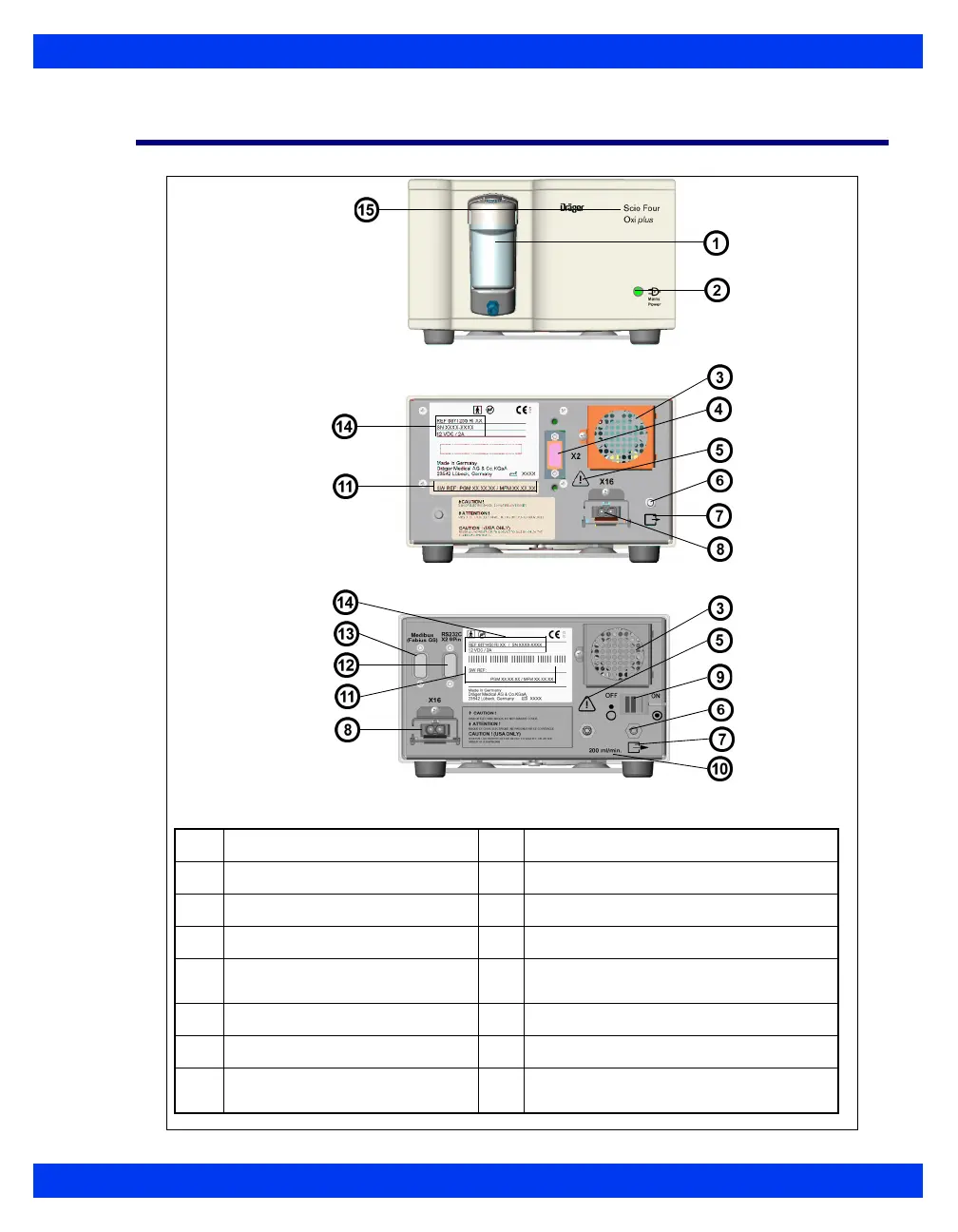

Scio Module Front Panel
1 Water trap 9 ON/OFF switch
2 External power indicator 10 Flow rate label
3 Fan exhaust screen 11 Software version label
4 X2 connector 12 RS232C connector (X2 9 pin)
5 Safety label: “Attention! Consult
the accompanying document.”
13 Medibus connector
6 Exhaust port 14 Hardware version label
7 Safety label: “Gas out” 15 Model name (example only)
8 External power supply
connector
Scio Module 6871255 Back Panel
Scio Module 6871450 Back Panel
