C.O. SETUP - HARDWARE
VF8 DELTA/DELTA XL/KAPPA 15-5
C.O. Setup - Hardware
The Hemo2, Hemo4, MPod – Quad Hemo and HemoMed pods are used with the
monitor for cardiac output monitoring. The following illustration shows a typical
cardiac output setup using the HemoMed pod:
NOTE: Hemo2 and Hemo4 pods have an additional and clearly marked connector for
body temperature monitoring only. For more information on hemodynamic pods, see
page 14-6.

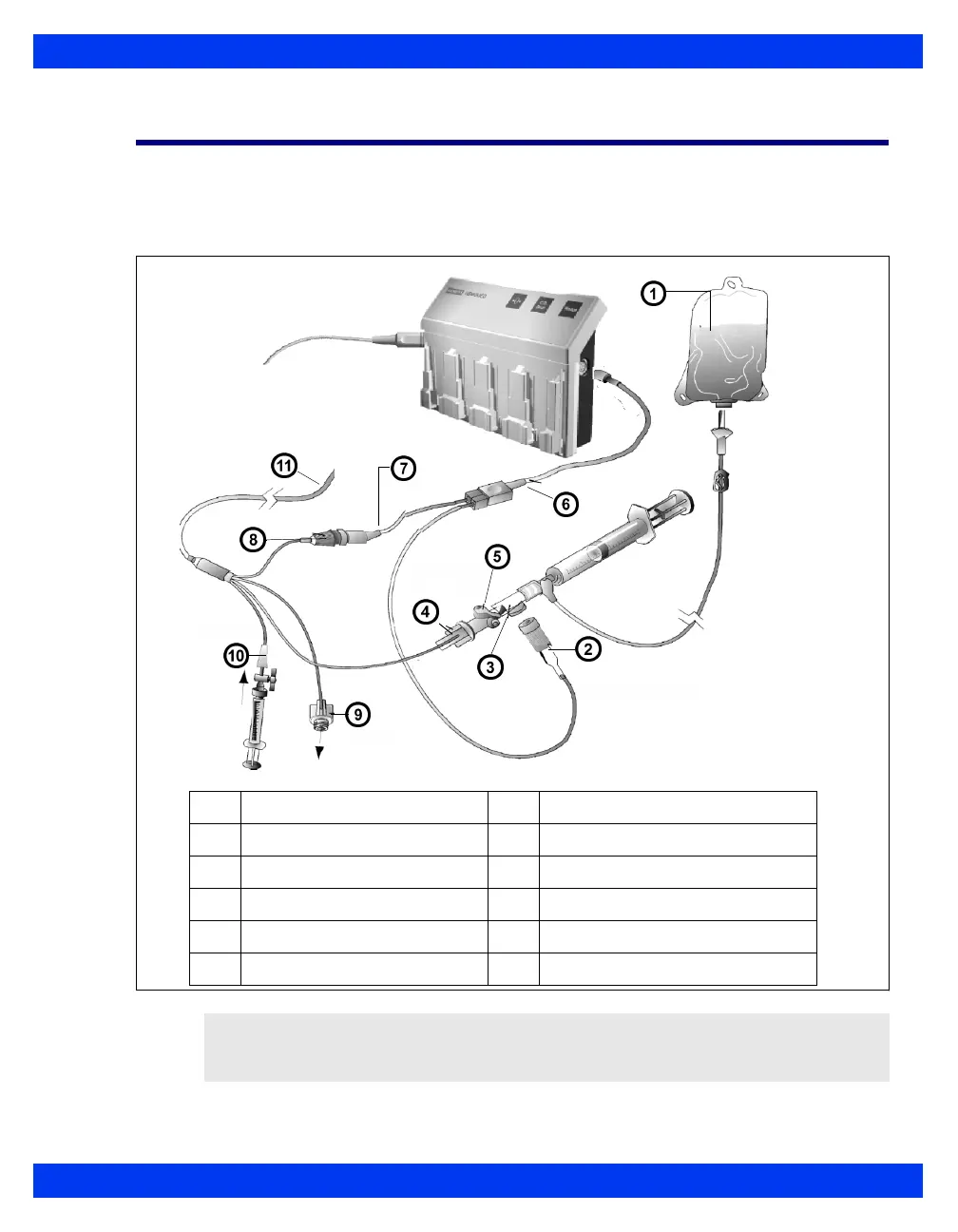

HemoMed setup for
Cardiac Output
1
Injectate solution
7
C.O. catheter cable
2
Injectate temperature probe
8
Thermistor port
3
Thermistor T-piece
9
Distal lumen
4
Proximal lumen
10
Balloon lumen
5
Stopcock
11
Thermodilution catheter
6
C.O. Y-cable
