ESPIRATORY MECHANICS
Display Features
You can configure the monitor to display waveforms, ventilation loops, and numerical
values calculated by the etCO
2
/Respiratory Mechanics pod. The following illustration

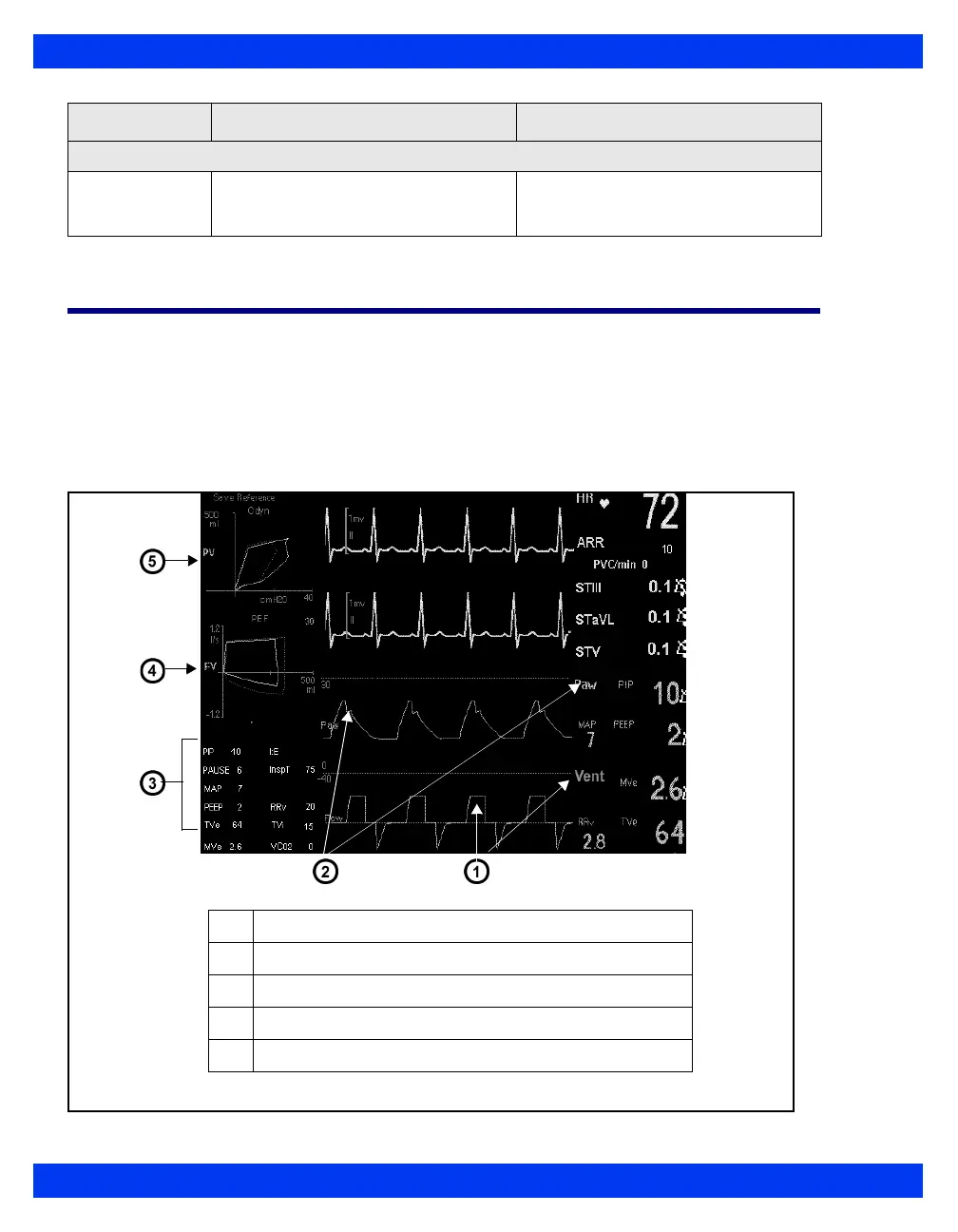

shows a typical main screen layout when the etCO
2
/Respiratory Mechanics pod is
connected. The number and screen position of the parameter boxes depends on your
configuration of the Main Screen menu. See page 2-5 for instructions on configuring
the main screen.
Split Screen Configures the main screen to display
ventilator or trend data and standard
waveforms and parameters.
OFF, 60 Min Trends, 10 Min Trends,
Ventilation
Function Description Settings
VENT Setup Menu
1
Flow/volume (Vent) waveform and parameter box
2
Airway pressure (Paw) waveform and parameter box
3
Ventilation parameters
4
Flow/volume loop
5
Pressure/volume loop
