14-10 DELTA/DELTA XL/KAPPA VF8
14 I
NVASIVE BLOOD PRESSURE
IBP Y-Cables
The IBP Y-cable increases the monitoring capabilities of the Hemo2 or Hemo4 pod or
allows two IBP parameters to be measured without a hemodynamic pod. When
plugged into the monitor, the Y-cable can accommodate up to two transducers, letting
you take two IBP measurements simultaneously. The monitor automatically assigns
P1a-d, P2a-d and P3a-d as temporary pressure labels when pressure transducers are
initially connected. These temporary pressure labels must be relabeled with an
appropriate permanent label corresponding to the pressure site being monitored.
To connect the IBP Y-cable to the monitor
1. Plug a transducer into the intermediate cable as shown.
2. Plug the other end of the intermediate cable into the Y-cable (7 or 10 pin).
3. Repeat steps 1 and 2 for a second transducer.
4. Plug Y-cable into a hemodynamic pod or into the monitor.
NOTE: For a complete list of Dräger IBP accessories available with this product, see
page C-19.

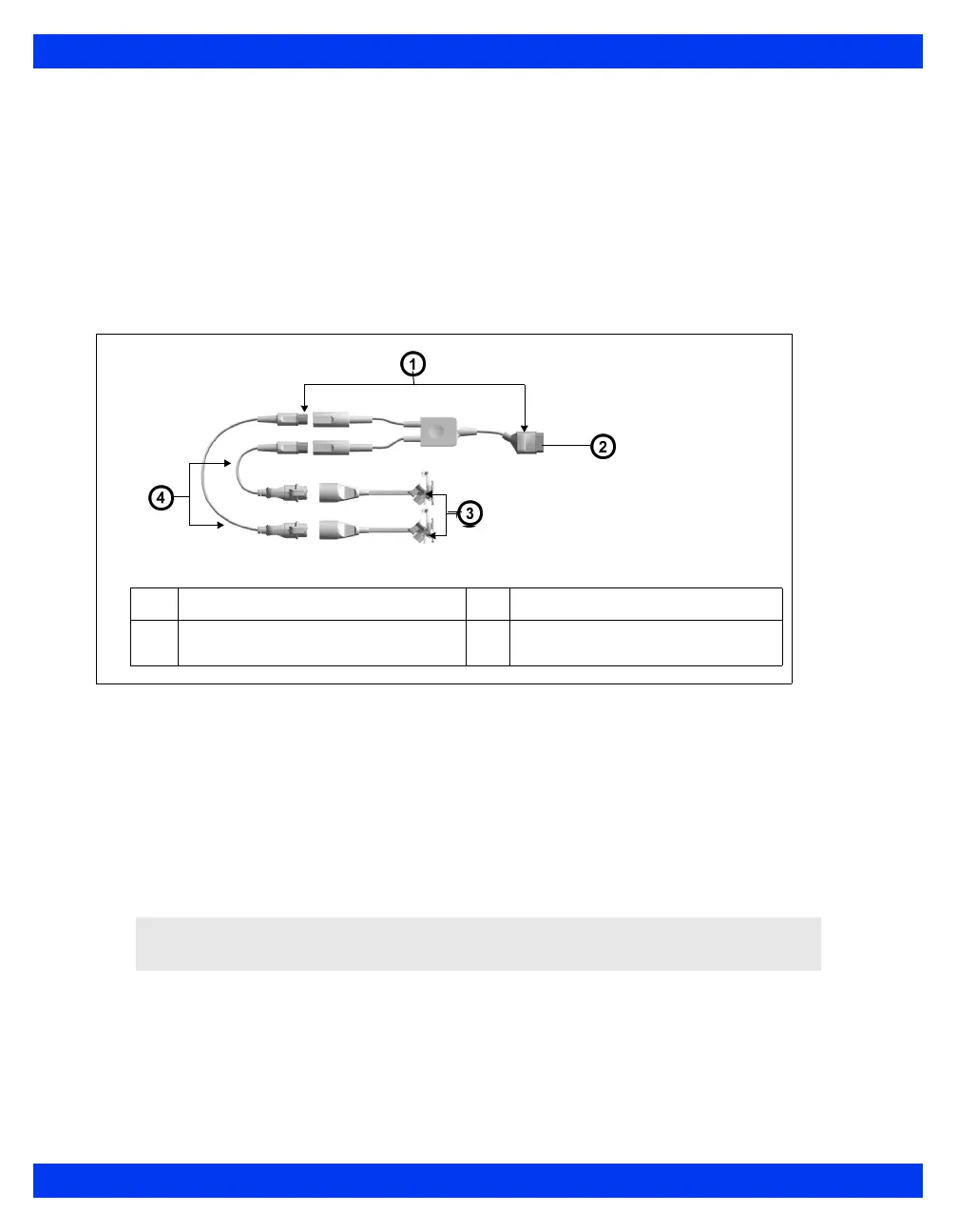

1
IBP Y-cable
3
IBP transducers
2
Plug into hemomed connector on
monitor
4 Intermediate cables
To Next Page
