Dräger Infinity Kappa User Manual

CONNECTION
VF8 DELTA/DELTA XL/KAPPA 20-3
Connection
Ports and outlets are clearly marked on the front of the Microstream pod. Use these
labels as a guide when connecting the pod to the monitor and accessories.
Monitor - Pod Connection
1. Plug one end of the connecting cable into either of the two PodCom
connectors on the monitor (the second PodCom connector is optional on the
Delta).
2. Plug the other end of the cable into the Microstream pod.
Accessory connection
Select the appropriate sample line according to your monitoring needs.
NOTE: For a complete list of Microstream accessories provided by Dräger for this
product, see page C-24.

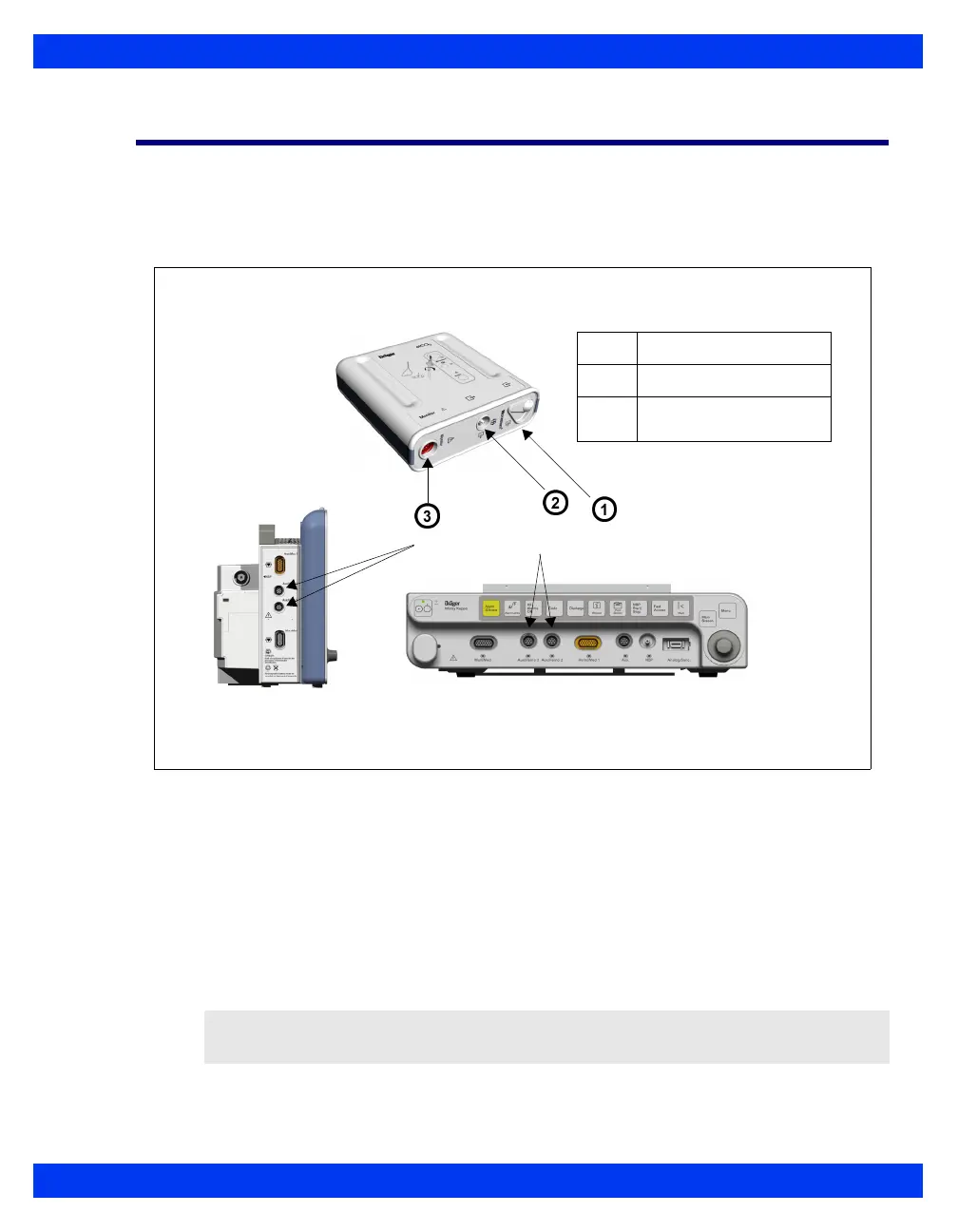

1
Accessory connection
2
Exhaust port
3
PodCom connection
to monitor
PodCom connectors
Kappa (front)
Delta/Delta XL (left side)
Infinity etCO2 Microstream Pod
