24-4 DELTA/DELTA XL/KAPPA VF8
24 N
EUROMUSCULAR TRANSMISSION (NMT) MONITORING

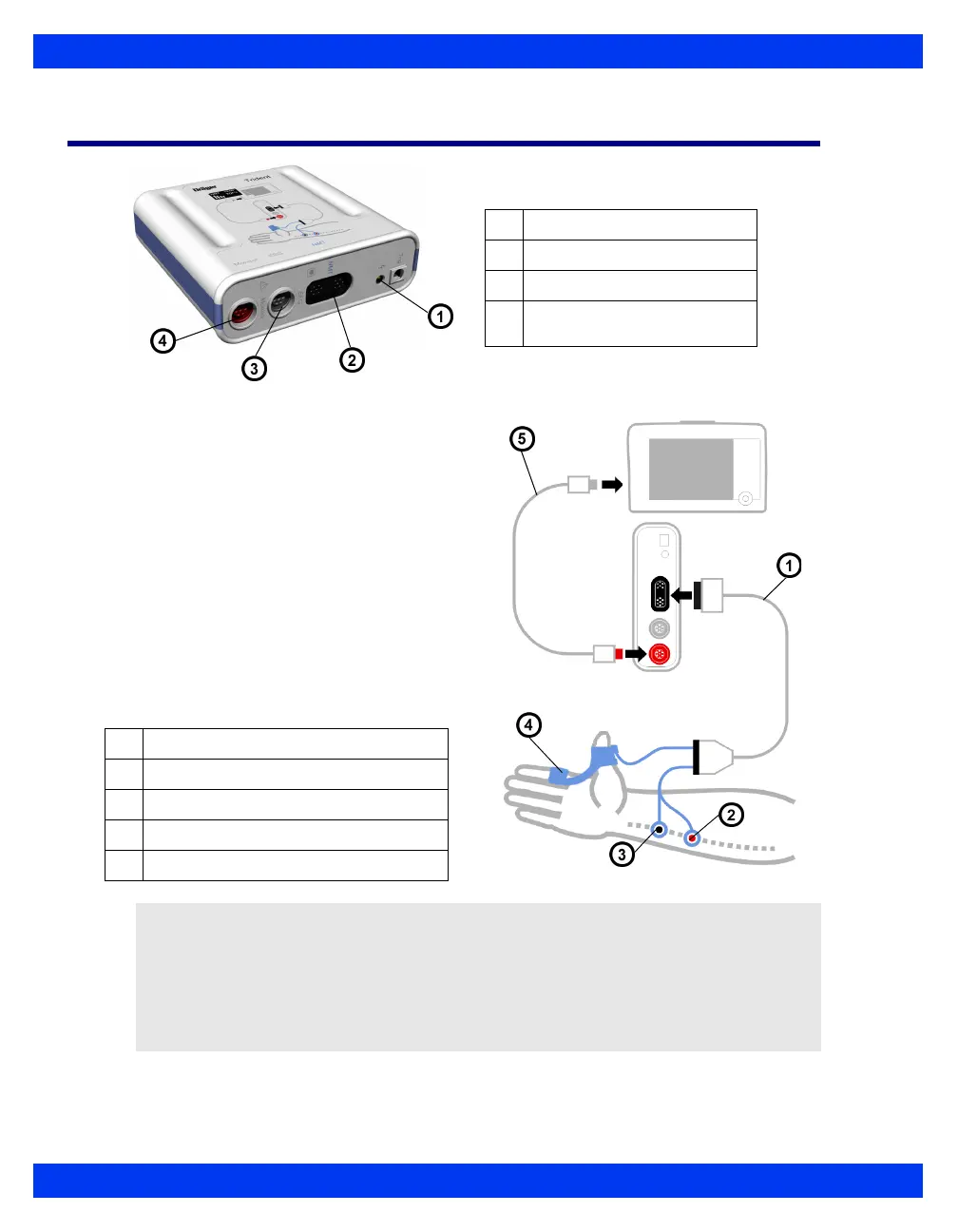

Connections
1. Attach the distal (black) and proximal
(red) electrodes above the Ulnar
nerve as shown (3 to 5 cm. apart).
2. Connect the Trident pod with the
PodCom cable to the monitor’s
PodCom connector.
3. Apply the NMT hand adaptor.
4. Connect electrode and sensor cables
to the NMT cable (if applicable).
5. Connect the NMT cable to the
Trident pod (NMT connector).
1 NMT intermediate cable
2 Red (positive) electrode grabber
3 Black (negative) electrode grabber
4 NMT hand adapter
5 PodCom cable
NOTE:
Check that the thumb can move unconstrained before applying NMT sensor.
An EEG or BisX pod can connect to the monitor directly or via the NMT pod's
EEG connector. See chapter 11 for details about EEG monitoring and chapter
25 for details about BISx monitoring.
Use the provided hand adaptor straps to secure the hand adaptor.
1 Stimulus Indicator (LED)
2 NMT Cable connection port
3 To EEG pod or BISx pod
4 PodCom connection (to
monitor)
