Dräger Infinity Kappa User Manual

HARDWARE S ETUP
VF8 DELTA/DELTA XL/KAPPA 23-9
Cable Connections
The Scio module connects to the Delta/Delta XL monitor directly, or via an Infinity
Docking Station (IDS). The module connects to the Kappa monitor directly, or via the
Scio/Independent Surgical Display (ISD) connector.
There are three ways to connect the Scio module to the monitor:
1. To the IDS/Kappa – via a Scio connecting cable (PN: 7876878 or 7876886) in
the X3/Scio-ISD connector.
2. To the IDS/Kappa – via a Scio connecting cable (PN: 78 76 878 or 7876886)
with a Scio “Y” cable (MS13749) in the X3/Scio-ISD connector.
3. To the Delta/Delta XL/Kappa monitor - directly via the Scio Direct Connect
cable (PN: 6871581) in the X8 connector.

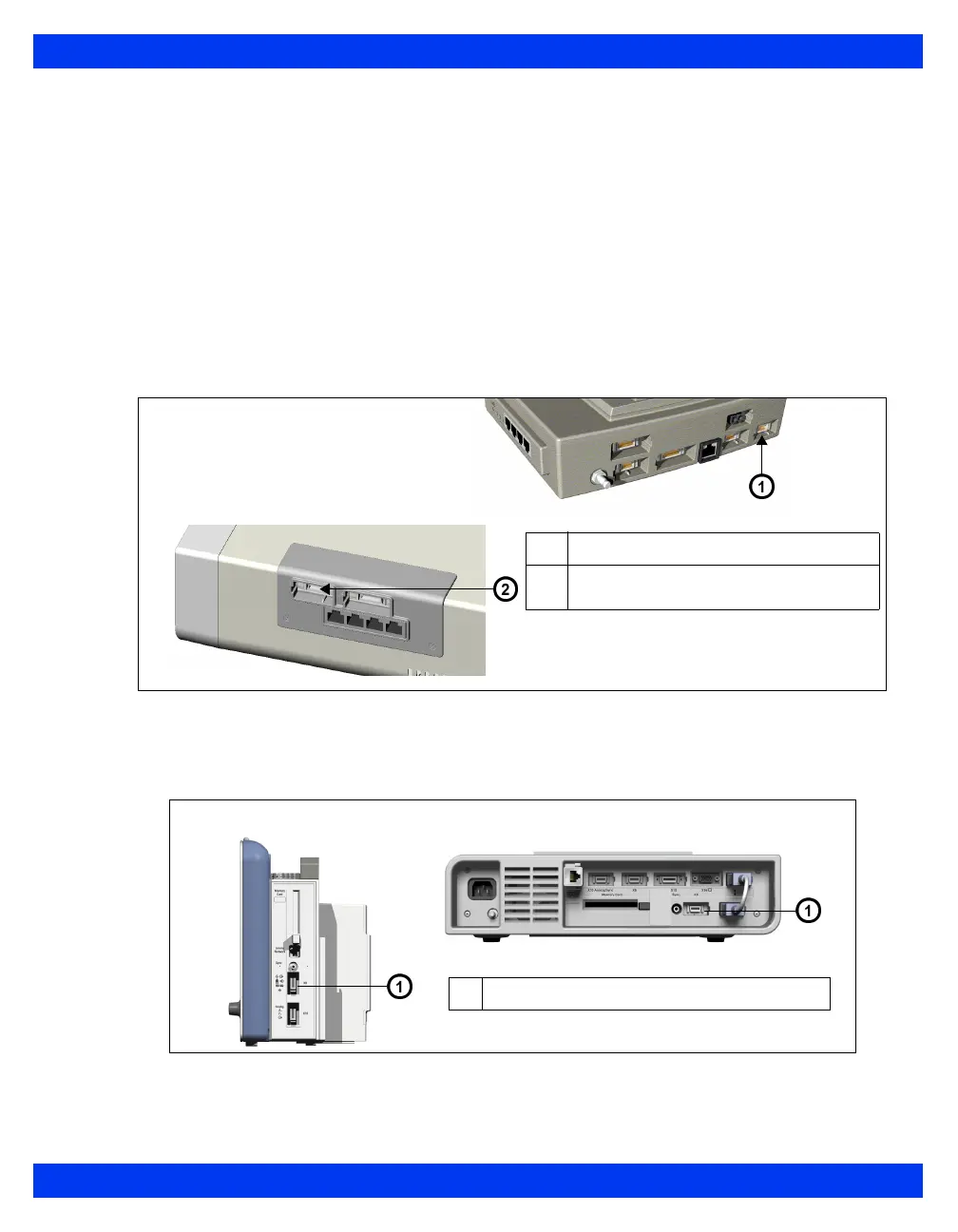

Kappa (Left View)
1
Scio connector cable connector (X3)
2
Scio-Independent Surgical Display
(ISD) connector
IDS (Rear View)
Kappa (Rear View)
Delta/Delta XL (Right View)
1
Scio Direct Connect cable connector (X8)
