HP 8560E Service Manual

110 Chapter2
Adjustment Procedures
15. External Mixer Amplitude Adjustment
15. External Mixer Amplitude Adjustment
Assembly Adjusted
A15 RF assembly
Related Performance Test
IF Input Amplitude Accuracy
Description
The slope of the flatness compensation amplifiers is determined. The
user-loaded conversion losses for K-band are recorded and reset to 30
dB. A 310.7 MHz signal is applied to the power sensor and the power
level of the source is adjusted for a −30 dBm reading. The signal is then
applied to the IF INPUT. The flatness compensation amplifiers are then
adjusted (via DACs) to place the displayed signal at the reference level.
Only the determination of the Flatness Compensation Amplifier slope
is performed if the HP 8560E/EC has Option 002.

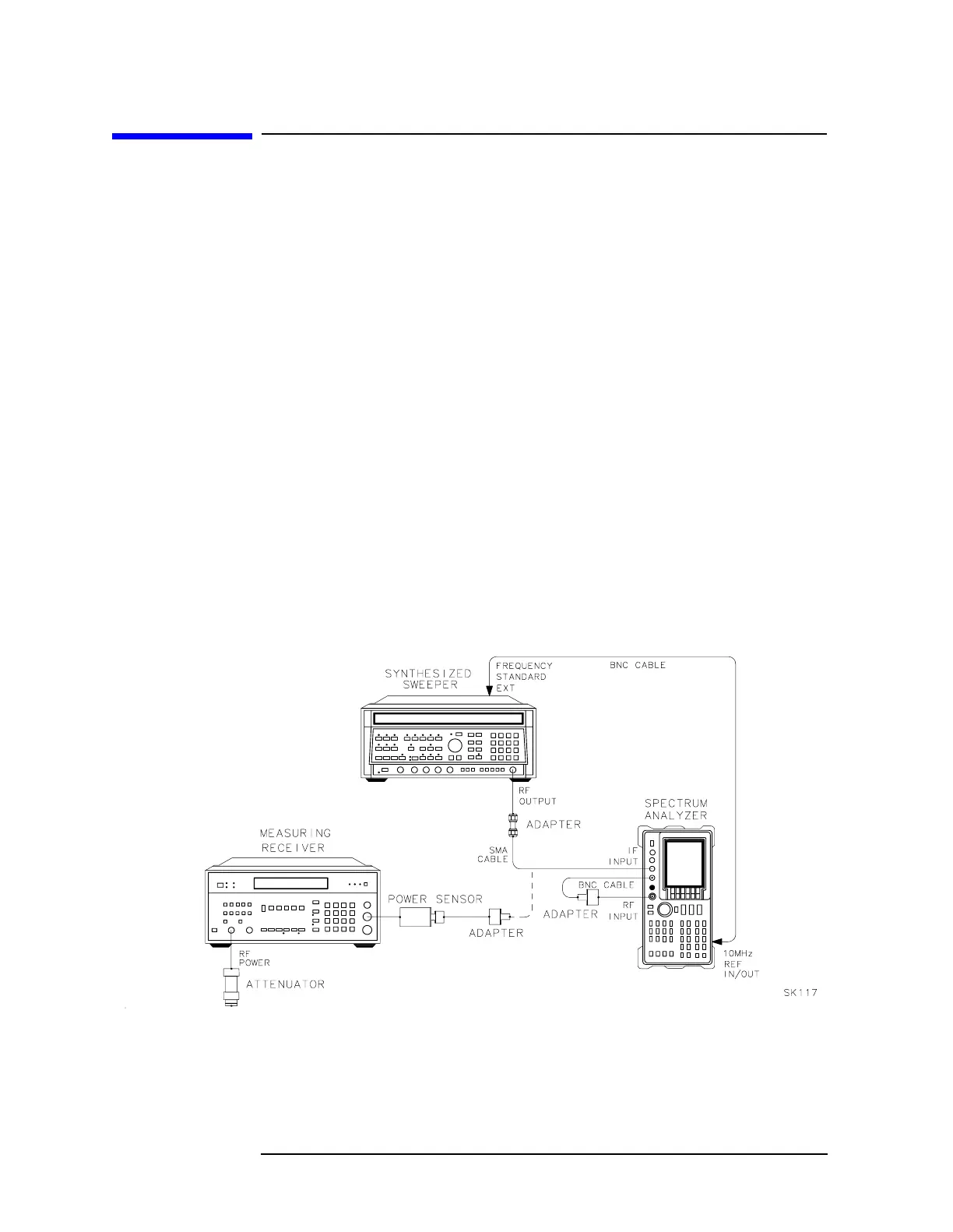

Figure 2-21 External Mixer Amplitude Adjustment Setup
