212 Chapter3
Assembly Replacement
Procedure 14. W3 Line Switch Cable (8560E)
cables for the probe power and line switch, and
d. remove the line switch.

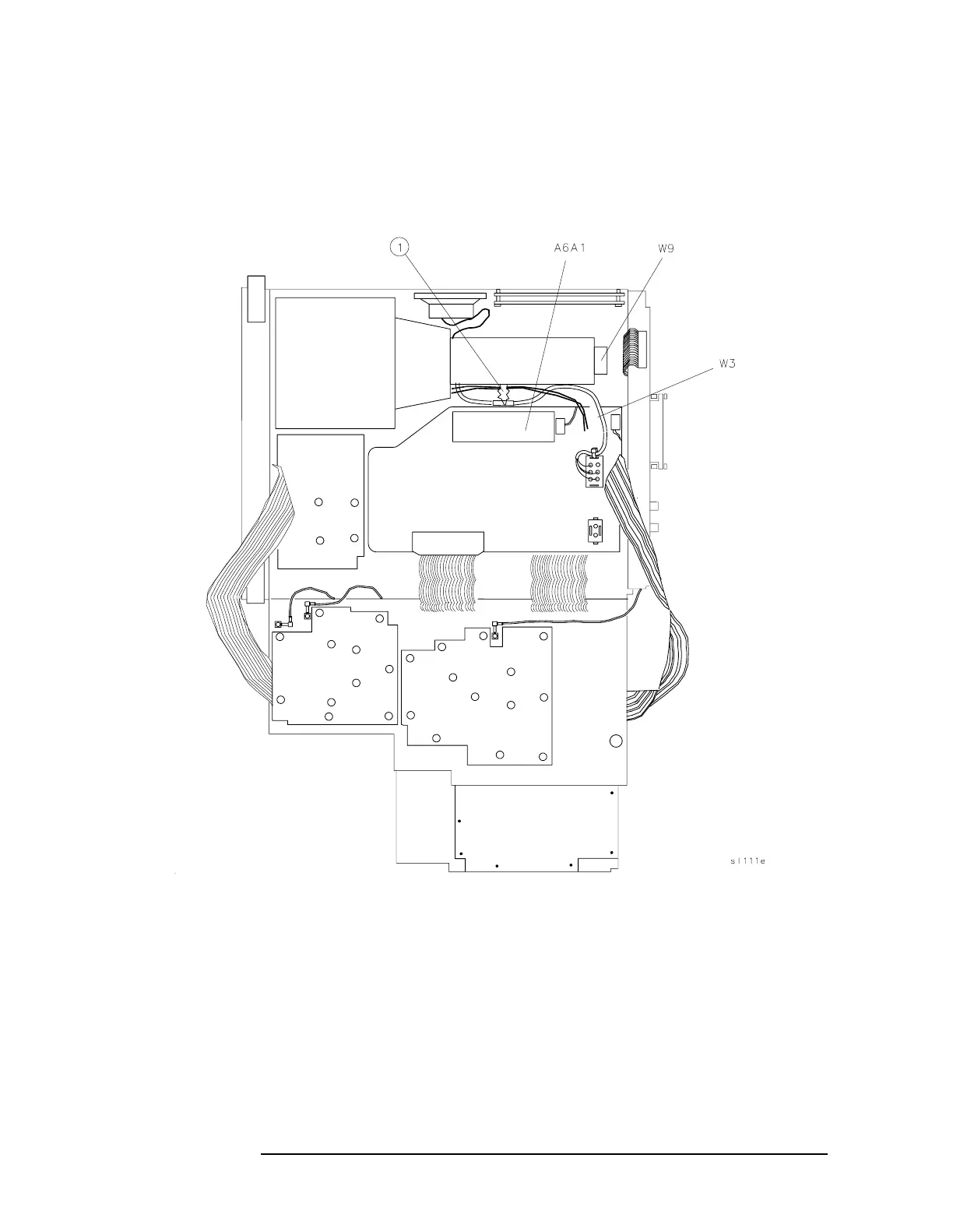

Figure 3-31 W3 Dress and Connection to A6 Power Supply
