566 Chapter10
Synthesizer Section
Sweep Generator Circuit (for Spectrum Analyzers with 100 s max. Sweep Time)

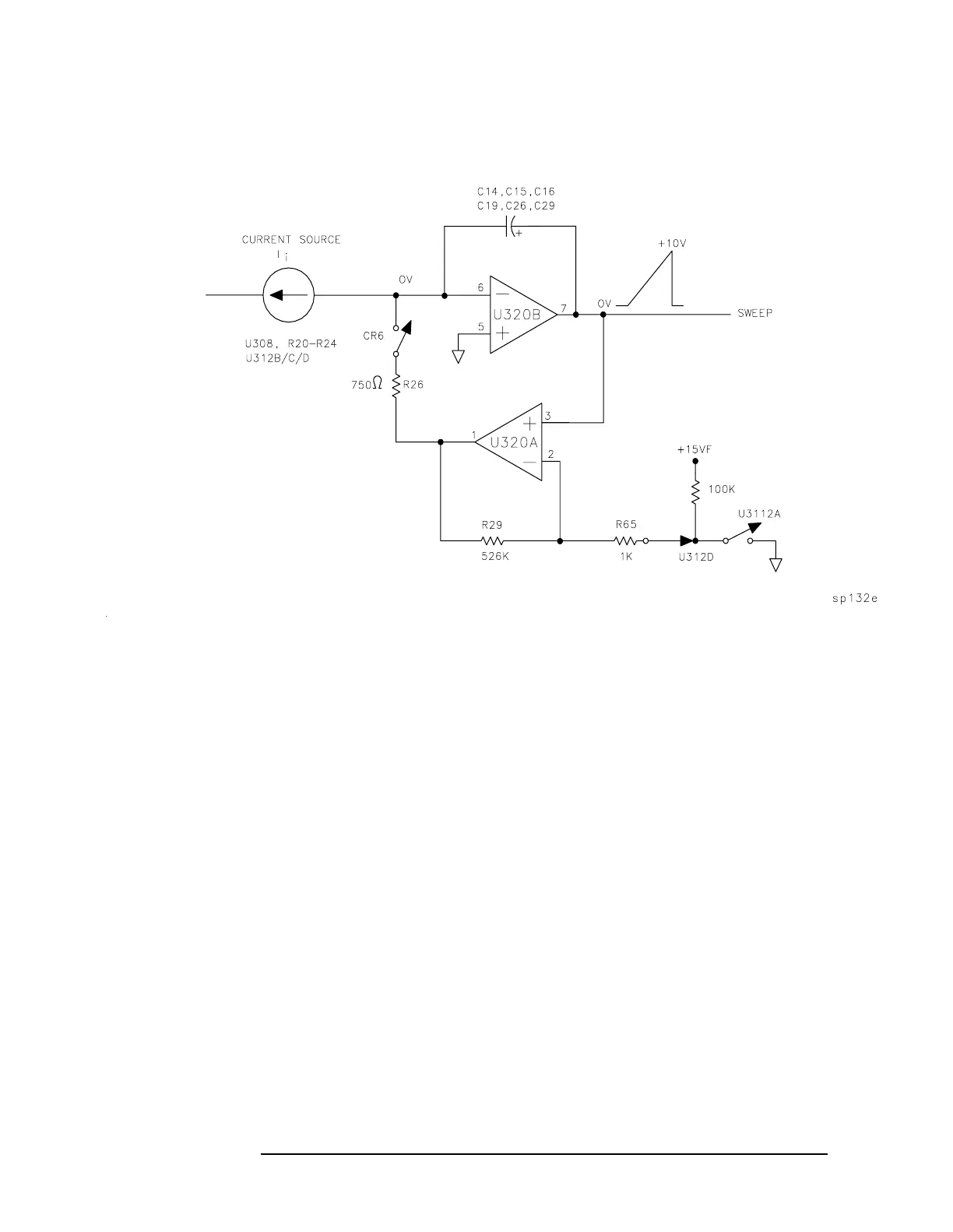

Figure 10-9 Simplified Sweep Generator
