Chapter 2 95
Adjustment Procedures
9. Tracking Generator Power Level Adjustments (Option 002)
Procedure
1. Press LINE to turn the spectrum analyzer off. Remove the spectrum
analyzer cover and place the spectrum analyzer in the service
position as illustrated in Figure 2-14 on page 95.

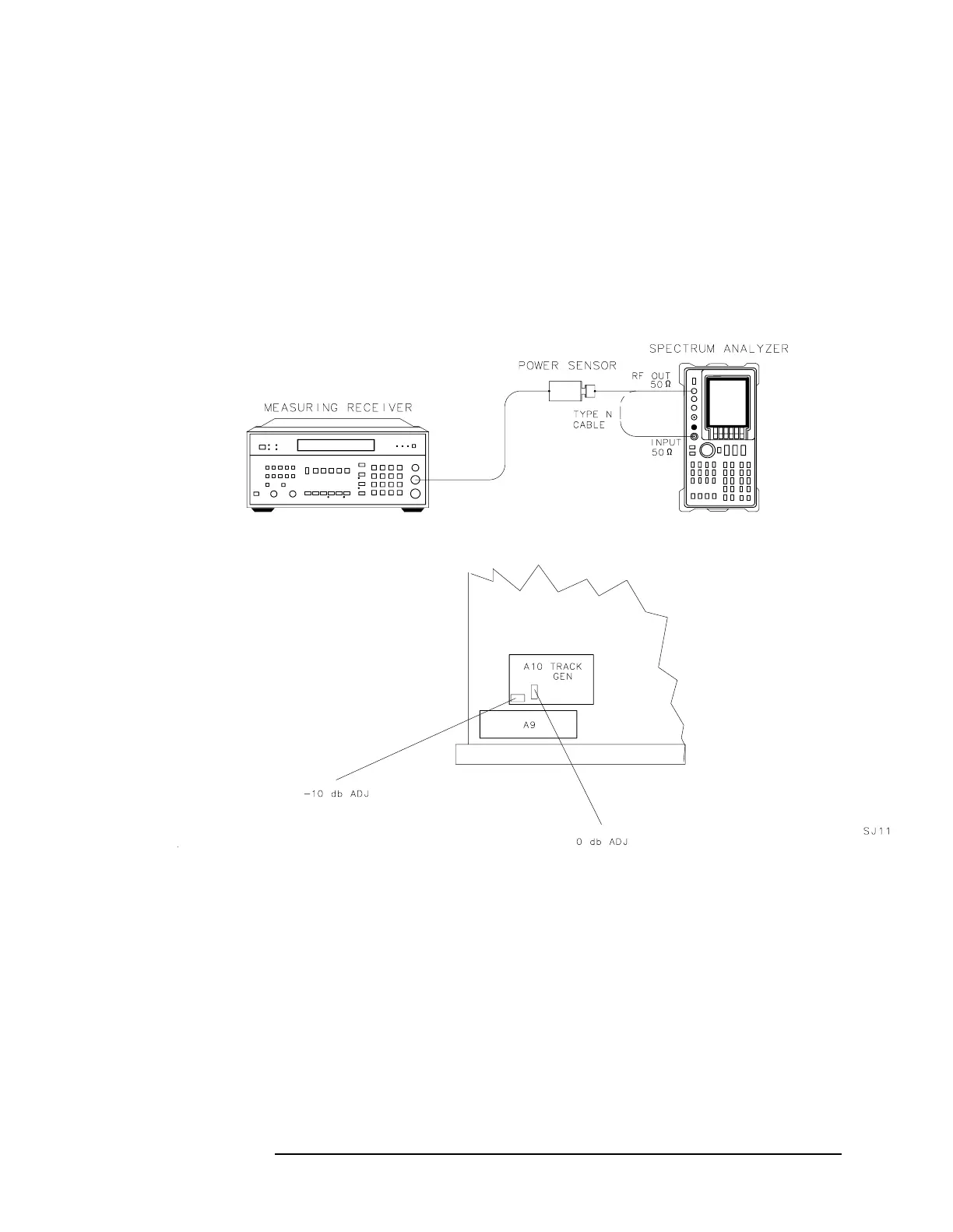

Figure 2-14 Tracking Generator Power Setup and Adjustment Locations
2. Connect the Type N cable between the RF OUT 50Ω and RF INPUT
50Ω connectors on the HP 8560E/EC.
3. Press
PRESET on the HP 8560E/EC and set the controls as follows:
Center frequency ............................................. 300 MHz
Span..................................................................... 0 Hz
