270 Chapter5
Major Assembly and Cable Locations
Introduction
W36 Ext Second IF (coax 86) (Deleted in Opt. 002 and Opt. 327) 5-7
W37 10 MHz Ref 1 (coax 85) .................................................... 5-7, 5-8
W38 Semirigid coax, A11J2 to A7J1 .............................................. 5-9
W39 Semirigid coax, A7J2 to A8J3 ................................................ 5-9
W40 Cal. Out (coax 89) ................................................................... 5-7
W41 Semirigid coax, front panel J1 to A9J1 ................................. 5-9
W42 Semirigid coax, A7J3 to front panel J4 (Standard) .............. 5-9
W43 Semirigid coax, A7J3 to A10J4 (Option 002) ........................ 5-9
W44 Semirigid coax, A9J2 to FL1J1 .............................................. 5-9
W45 Semirigid coax, FL1J2 to A8J1 .............................................. 5-9
W46 Semirigid coax, A10J3 to front panel J4 (Option 002) .......... 5-9
W47 Semirigid coax, A10J2 to front panel J6 (Option 002) .......... 5-9
W48 A10 600 MHz (coax 80) (Option 002) ..................................... 5-7
W49 OCXO 10 MHz output (coax 82) ............................................ 5-7
W50 OCXO power (part of A21 OCXO assembly) ..........................5-7
W51 10 MHz IN (coax 84) ........................................................ 5-5, 5-7
W52 CAL Oscillator Out (coax 9) ................................................... 5-6
W53 Frequency Counter (coax 1) ............................................ 5-4, 5-5
W54 Video (coax 2) ................................................................... 5-4, 5-5
W55 Audio Out ......................................................................... 5-5, 5-6
W56 Semirigid coax, A8J2 to FL2J1 .............................................. 5-9
W57 Semirigid coax, FL2J2 to A13J1 ............................................ 5-9
W58 ALT SWEEP OUT (coax 8) ..................................................... 5-8
W59 FADC clock (coax 839) (8560E with Option 007)................... 5-4
W60 ribbon, A2J8 to A17J1....................................................... 5-2,5-3
W61 coax, A2J9 to A17 J7 ..........................................................5-2,5-3
W62 ribbon, A17J6 to A17A1 .....................................................5-2,5-3
W63 ribbon, A17J5 to A18..........................................................5-2,5-3
W64, A17J4 to J1 on the rear panel (VGA port)........................5-2,5-3

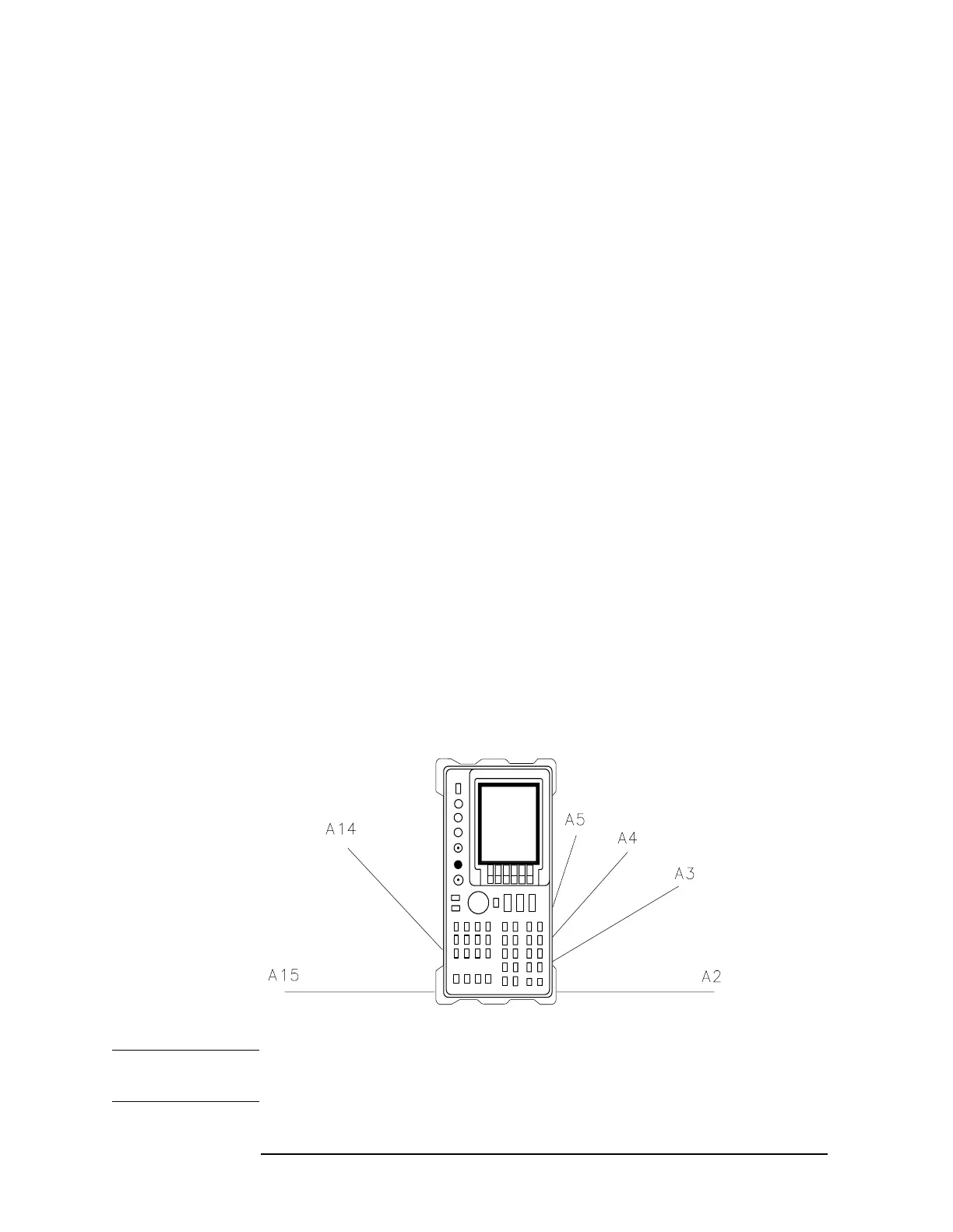

Figure 5-1 Hinged Assemblies
NOTE Figure 5-1 shows an 8560 E-series instrument. The 8560 EC-series
instrument is identical except the A2 board is smaller.
