Chapter 2 123
Adjustment Procedures
18. Tracking Oscillator Adjustment (Option 002)
Procedure
1. Remove the A10 tracking generator assembly as described in
Chapter 3. With the A10 tracking generator positioned next to the
HP 8560E/EC, reconnect W14 (10-wire ribbon cable) to A10J1.
Reconnect W48 to A10J8. Connect the 50 Ω termination to A10J3.
2. Connect the equipment as shown in Figure 2-25 on page 123. The
frequency counter provides the frequency reference for the
synthesized sweeper and the HP 8560E/EC.

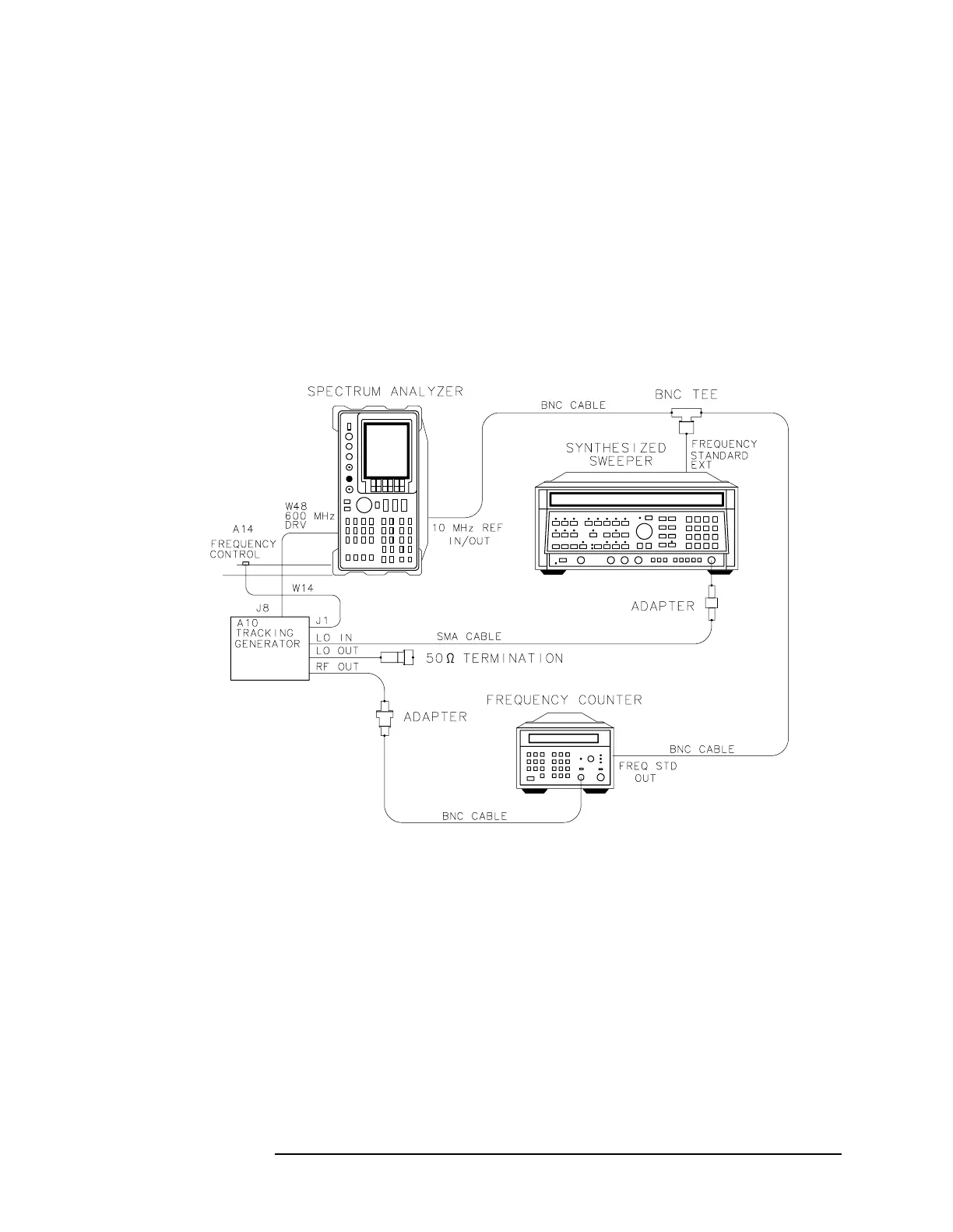

Figure 2-25 Tracking Oscillator Adjustment Setup
