552
Chapter
10
Synthesizer Section
Unlocked Fractional N PLL
Figure 10-8a

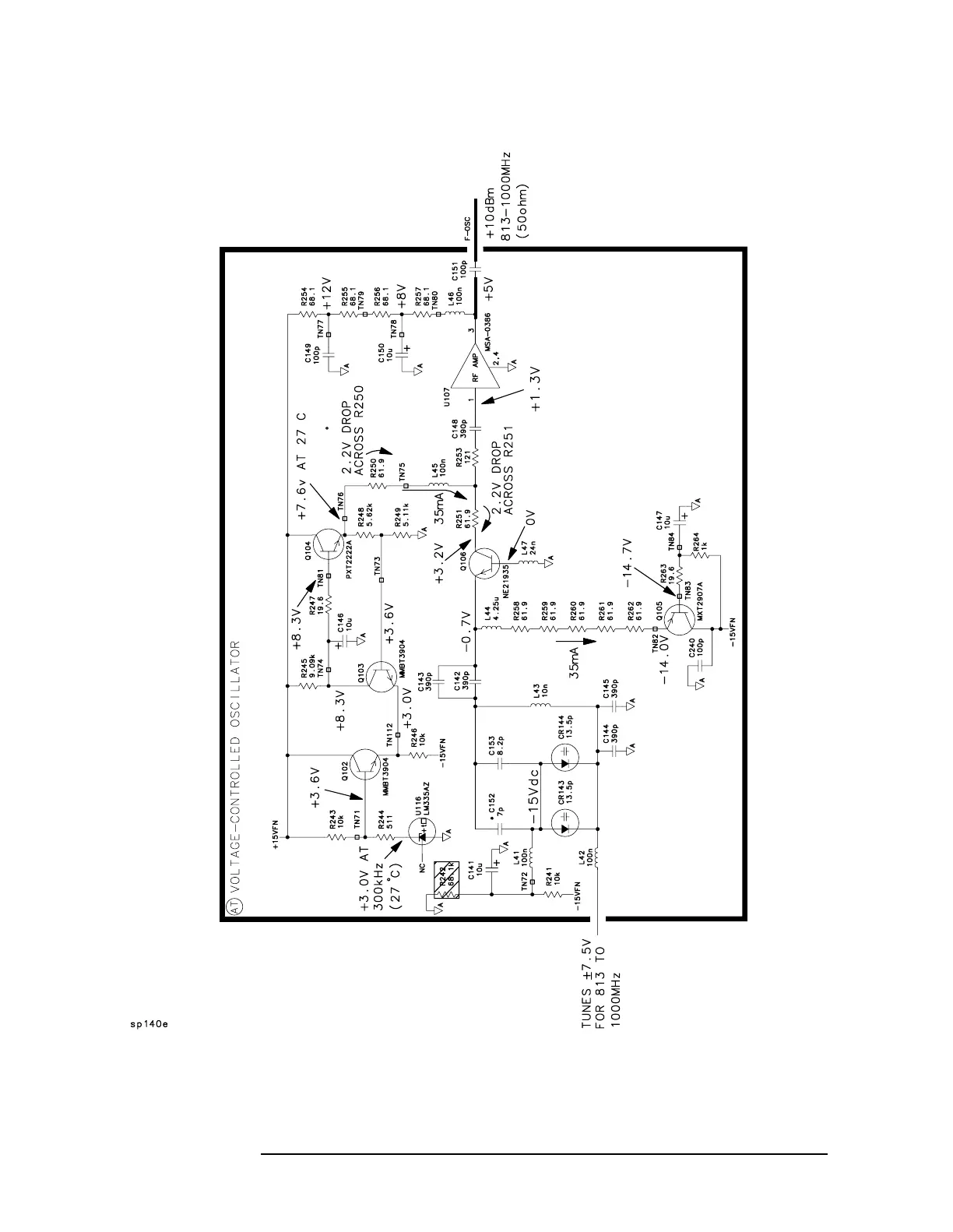

VCO Bias V
oltages for A14 boards(08560-60062 and below)
9.
Divider and integrator troubleshooting: Measure the frequency of
the
pulses
at
TP6
in
block
AO.
Look
up
the
expected
problem
area
in
T
able
10-14 on page
553
and go to the appropriate troubleshooting
552
554
