2.6 Optical Unit
REGIUS MODEL 190 Service Manual Ver.1.00 2004.11.01

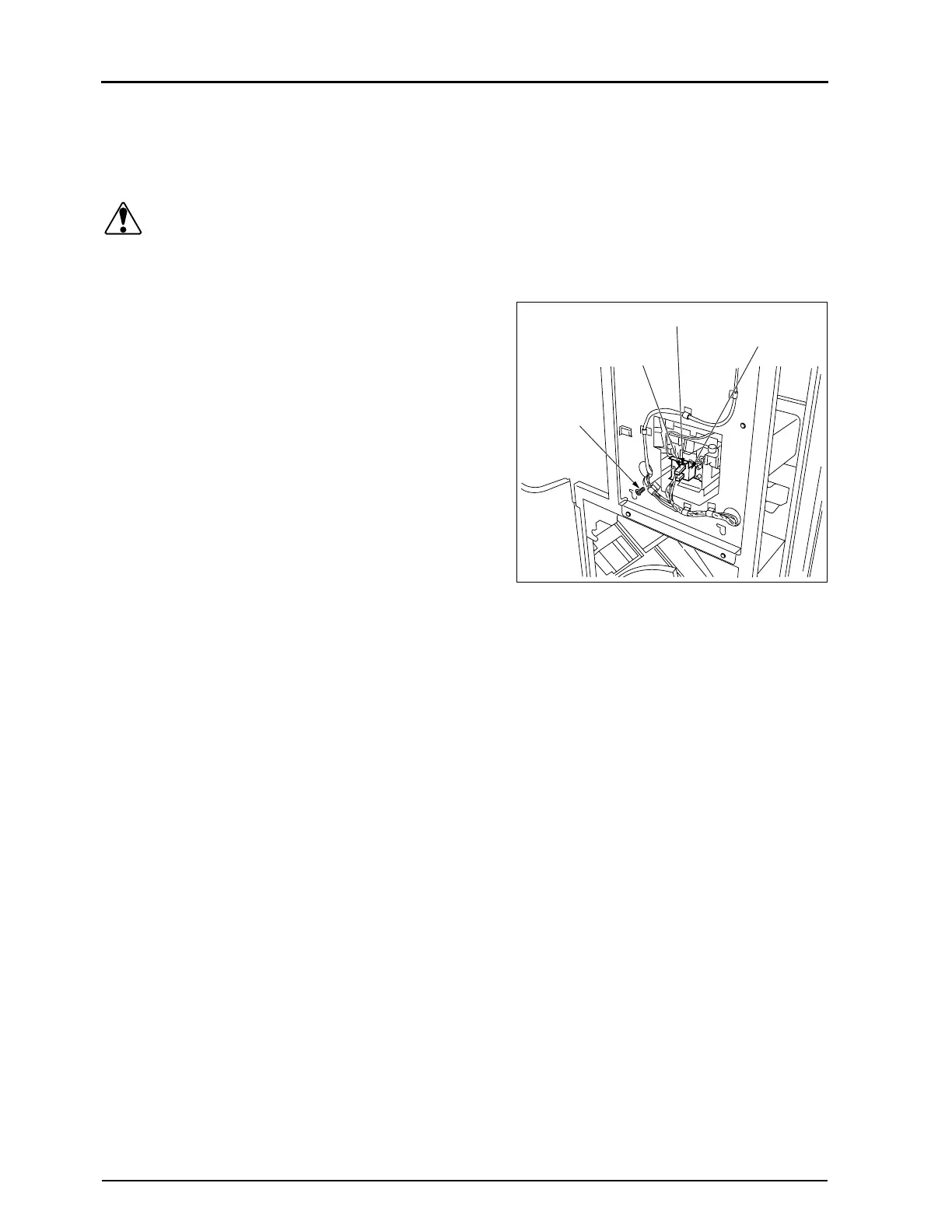

2.6.3 Replacement of Erasing Lamps
The erase lamp unit except the lamps is a reusable part. When
replacing the lamps, always replace two lamps at a time.
Caution To protect from burning, do not touch the erase
lamp immediately after it is extinguished.
1.
Remove the right cover. (See page p.29 )
2.
Unplug two connectors.
• JJ12, JJ13
3.
• If the dust-proof blade is not drawn out, the erase lamp
unit cannot be pulled out because it gets stuck with the
folding of the blade.
4.
Remove a fixing screw, and remove the erasing lamp.
5.
Carry out reassembly in the reverse order to that described
above.
Dust-Proof Blade
Fixing Screw
Connectors (2pcs)
Erasing Lamp
