2.4 Transport Unit
REGIUS MODEL 190 Service Manual Ver.1.00 2004.11.01
2.4.6 Replacement of Transport Motor (PM3)
Caution To protect from burning, do not touch the justifi-
cation motor immediately after it stops. Open the
front door.
1. Open the front door.
2. Remove the two fixing screws, and detach the transport
motor cover.
3. Unplug the connector from the transport motor.
• JJ2830
4. Remove the two fixing screws, and remove the transport
motor.
• The coupling (green) may also become detached when
the cassette feed motor is removed. Care should be
taken to avoid misplacing this component.
5. Carry out reassembly in the reverse order to that described
above.

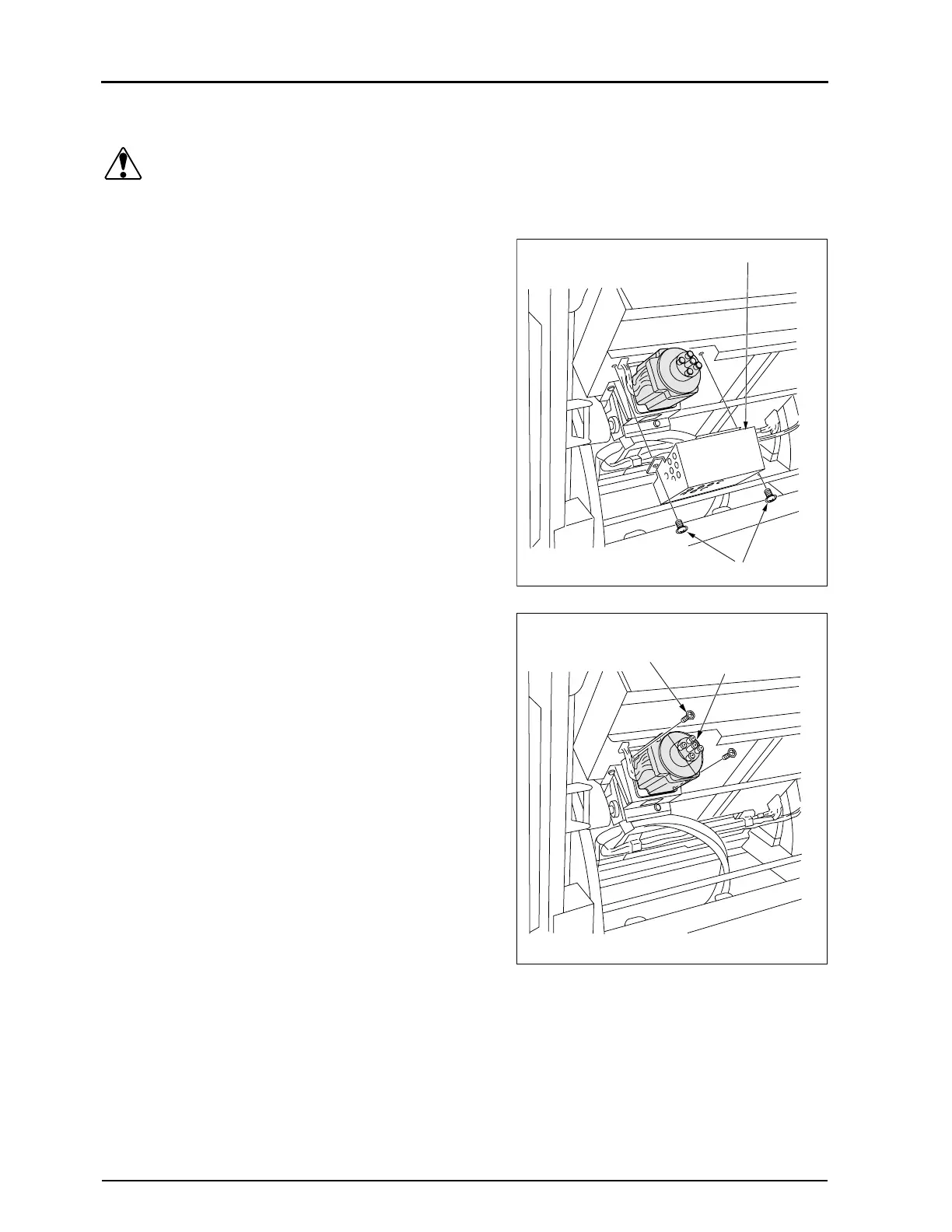

Fixing Screws
Transport Motor Cover
Fixing Screws (2pcs)
Transport Motor (PM3)
