Konica Minolta REGIUS 190 Service Manual

40
2.3 Insertion / Ejection Unit
REGIUS MODEL 190 Service Manual Ver.1.00 2004.11.01

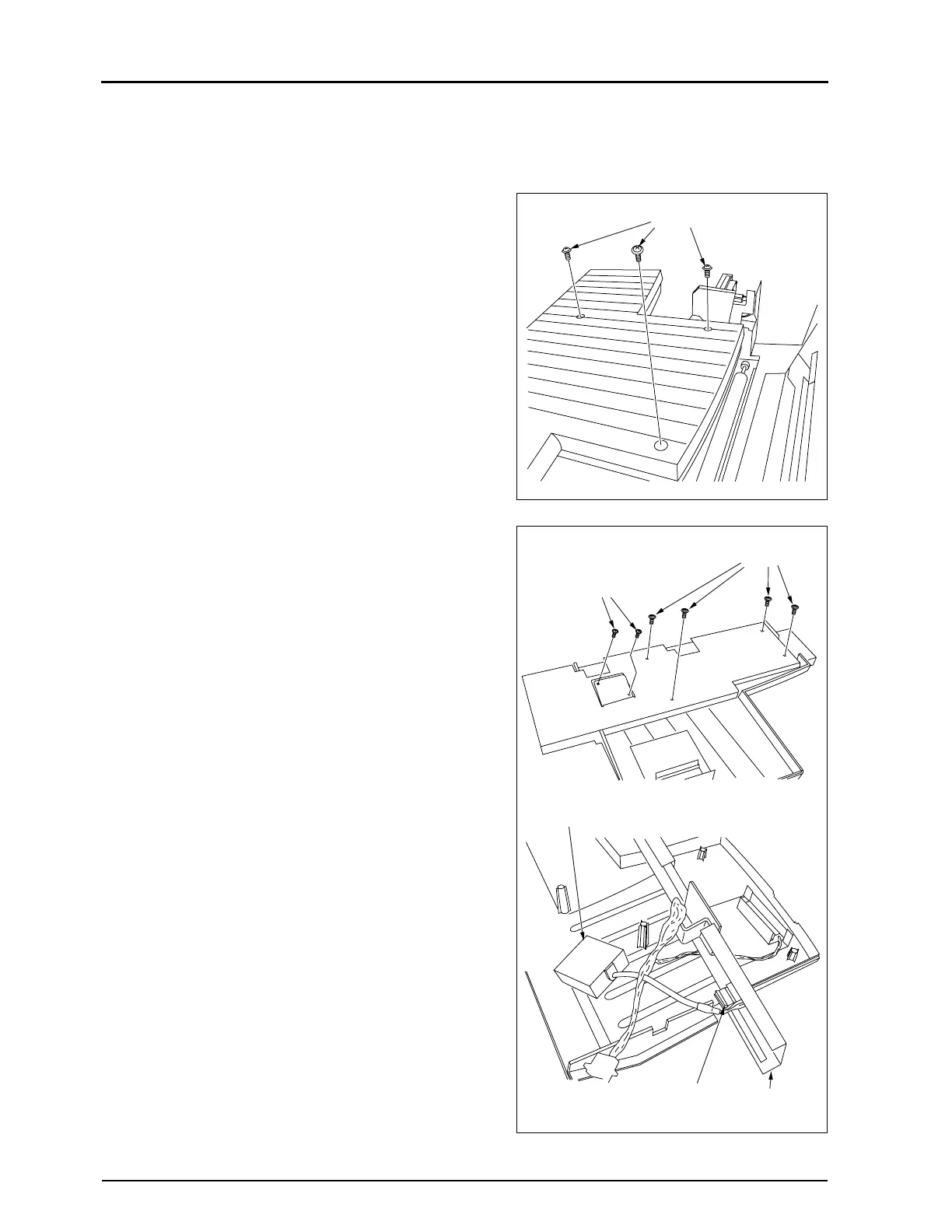

2.3.4 Replacement of Bar Code Reader
1.
Remove the ejection guide assy. ("2.3.3 Removal of
Ejection Guide Assy, p.39")
2.
Remove three fixing screws, and remove the cassette
stacker.
3. Remove 4 fixing screws "a", and remove the stay.
4. Remove two fixing screws "b", and remove the bar code
reader from the stay.
5. Remove the wire bundle from the wire clamp.
6. Carry out reassembly in the reverse order to that described
above.
Fixing Screws
Fixing Screws "a"
Fixing Screws "b"
Stay
Wire Clamp
Bar Code Reader
