A.1 SCB2 Dummy Program Screens
REGIUS MODEL 190 Service Manual Ver.1.00 2004.11.01

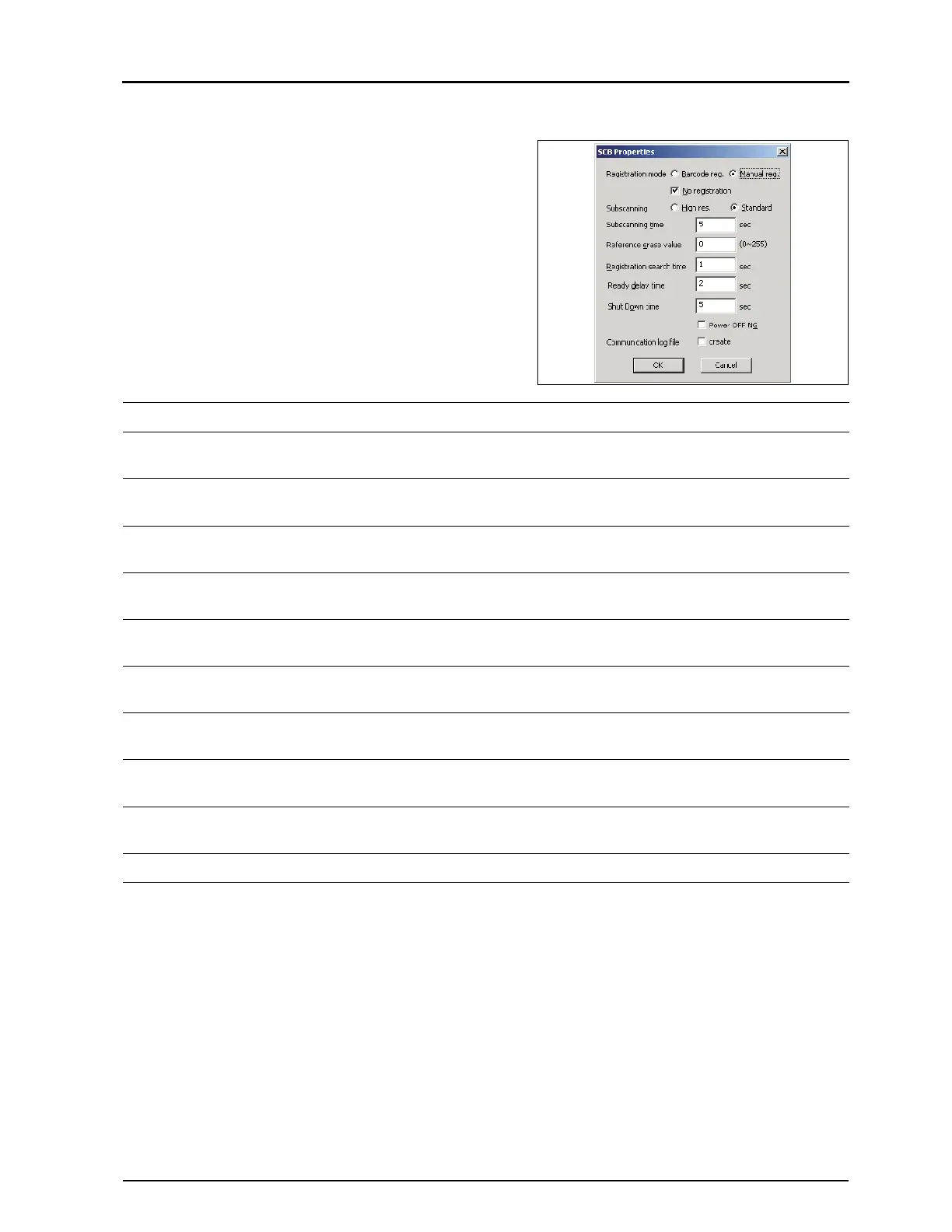

A.1.4 "SCB2 Properties" Dialogue
This dialogue will appear when "SCB2 Set Up" is selected in
"Set Up" menu of the main window. ("A.1.1 Main Window,
p.169")
Do not change the setting unless otherwise instructed.
Item Description
Registration mode Specifies "Barcode Reg." or "Manual reg.". This setting will be sent as a parameter
of "Ready OK" command after initialization is completed.
No registration Checking this item will send "Registration NG" against "Barcode Detect" sent from
the MCB2.
Subscanning Specifies "High res" or "Standard". This setting will be sent as a parameter of
"GoForward".
Subscanning time Specifies the waiting time between the receipt of "Laser ON" status from the
MCB2 and sending "GoBackward" .
Reference erase value Specifies the reference value for erasure. This setting will be sent as a parameter
of "GoBackward", and the MCB2 will set the erase time according to this value.
Registration search time Specifies the waiting time between the receipt of "Barcode Detect" status from the
MCB2 and sending "Registration OK" or "Registration NG".
Ready delay time Specifies the waiting time between the receipt of "Ready" status from the MCB2
and sending "Ready OK".
Shut Down time Specifies the waiting time between the receipt of "Power OFF" status from the
MCB2 and sending "Power OFF OK".
Power OFF NG Specifies the waiting time between the receipt of "Power OFF" status from the
MCB2 and sending "Power OFF NG".
Communication log file Checking this item allows to save all communication result with the MCB2 in file.
