3.3 Verification of Initializing Sequence
REGIUS MODEL 190 Service Manual Ver.1.00 2004.11.01
3.3 Verification of Initializing Sequence

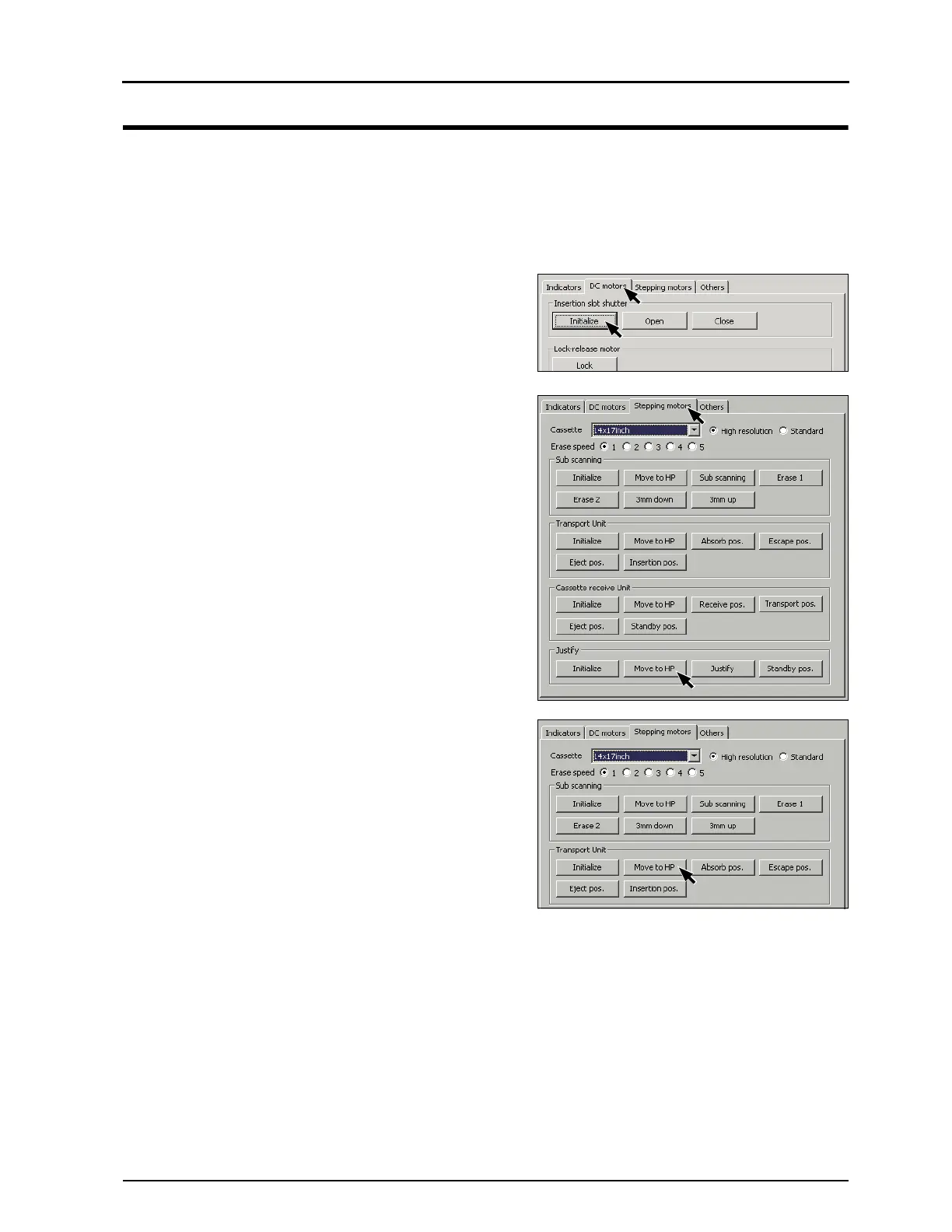

To initiate initialization in the same order as actual sequence using the dummy SBC2 program, follow the proce-
dures below.
1. Start up the dummy SBC2 program, and bring the mainte-
nance window to the screen. ("3.2 Set Up of dummy SBC2
program, p.99")
2.
Check the initializing sequence of the insertion slot shutter.
1) Click [DC motors] tab.
2) Click [Initialize] of "Insertion slot Shutter".
3) Check that "Insertion Slot Initialize ...OK" is shown on
"Information : ".
3.
Move the justification assy to the HP.
1) Click [Stepping motors] tab.
2) Click [Move to HP] of "Justification".
3) Check that "Move to Justification HP...OK" is shown on
"Information : ".
4.
Move the transport unit to the HP.
1) Click [Move to HP] of "Transport Unit"
2) Check that "Move to Transport Unit to HP...OK" is
shown on "Information : ".
