1.5.1 Operation Flow

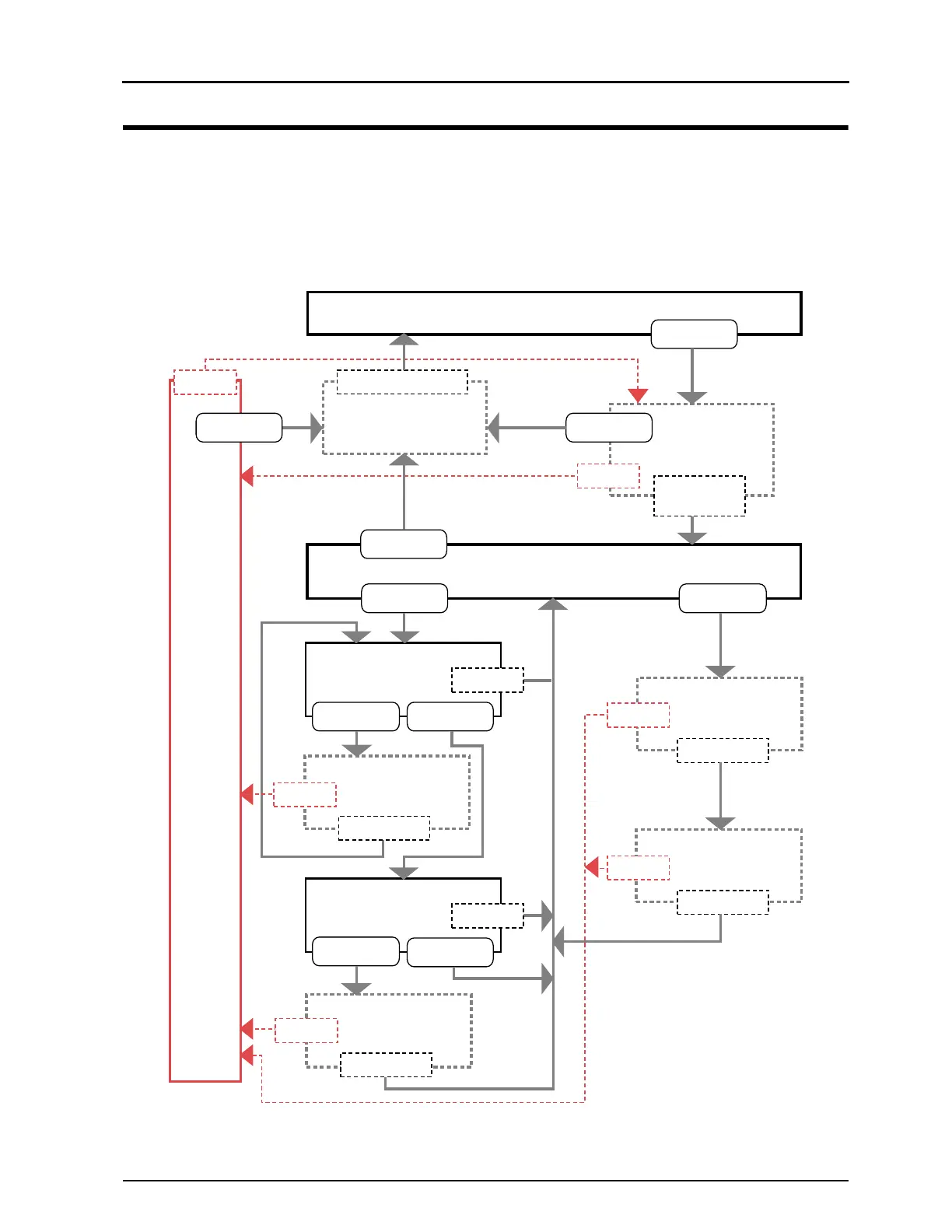

After the REGIUS Model 190 has started up, the status of the device should be one of the following. (Dotted line
shows the status that will automatically transit without user’s operation)
Power OFF
READY Status
Error Status
ERASE MODE 1
(Count Down)
ERASE MODE 2
(Count Down)
Initializing Process
Power OFF Process
Image Reading
Image Erasure
Image Erasure
(High Speed Mode)
Image Erasure
(Slow Mode)
operation ON
"erase" Press & Hold
"erase" Press & Hold
"erase" Press & Hold
Insert Cassette
Insert Cassette
Insert Cassette
Shutdown
ShutdownShutdown
Initialize
Successful
Error Reset
OFF Process Complete
Read Complete
Time-Out
Time-Out
Erase Complete
Erase Complete
Erase Complete
Error
Error
Error
Error
Error
