10
1.2 Name of Parts
REGIUS MODEL 190 Service Manual Ver.1.00 2004.11.01

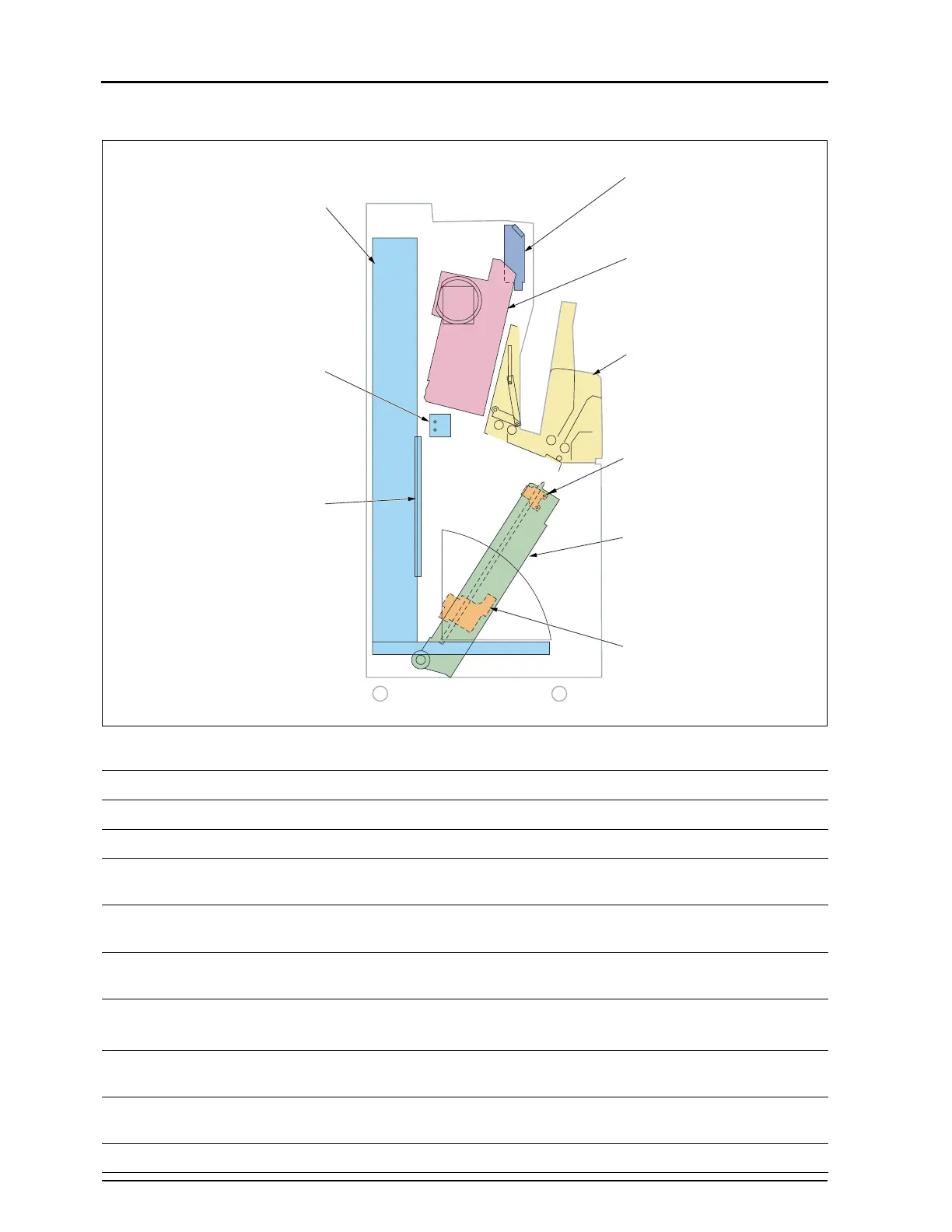

1.2.2 Main Parts inside REGIUS 190
Part Function
Subscan Unit
Actuates the cassette magnetizing plate up and down. (subscanning operation)
Erase Lamp
Erases the remaining image on the plate.
Cassette Magne-
tizing Plate
Retains the back plate magnetically.
Operation Panel
Comprised of LCD panel which displays the device’s status and switches for starting the
device and for erasing the image.
Optical Unit
Scans the plate with laser beam, and collects and converts the light through condenser
tube into the electrical signal.
Insertion / Ejec-
tion Slot
• Draws a cassette into the device, which the operator inserts.
• Ejects the cassette after reading onto the cassette stacker.
Justification
Assy
Sandwiches the front plate of the cassette at both side, and retain it on the transportation
unit.
Transport Unit
Driven on the sector gear to and from the cassette insertion / ejection unit and cassette
magnetizing plate, transports the plate.
Receiver
Moves up and down to fit to the cassette size, and operates lock / unlock of the cassette.
Operation Panel
Subscan Unit
Erase Lamp
Cassette Magnetizing Plate
Optical Unit
Insertion / Ejection Unit
Justification Assy
Transport Unit
Receiver Base
To Next Page
