15
1.3 Layout of Controlling Components
REGIUS MODEL 190 Service Manual Ver.1.00 2004.11.01

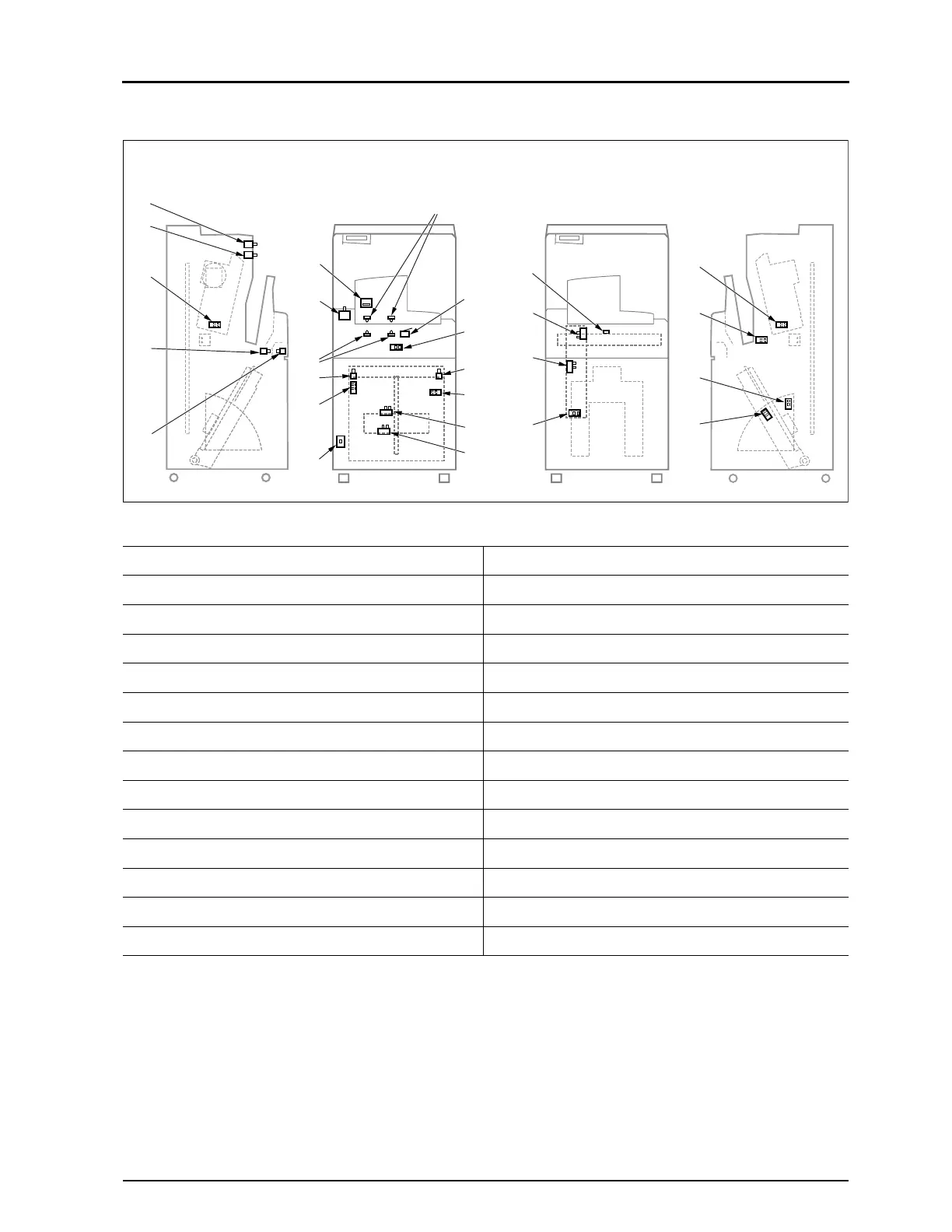

1.3.3 Locations of Sensors and Switches
No. Part Name No. Part Name
1 "operation" SW (SW1) 14 Cassette Back Plate Sensor (S21)
2 "erase" SW (SW2) 15 Justification Sensor-R (S4)
3 Peel Sensor-L (S13) 16 Elevator Sensor-HP (S8)
4 Insertion Shutter Close Sensor (S18) 17 Cassette Receive Sensor (S2)
5 Insertion Shutter Open Sensor (S19) 18 Lock-Release Sensor (S1)
6 Bar Code Reader 19 Thermostat (TM1)
7 "eject" SW (SW5) 20 Sync Sensor (S12)
8 Insertion Slot Sensor Emission (LLB1, LLB2) 21 Absorption (Magnetizing) Detect Sensor (S15)
9 Justification Sensor-L (S3) 22 Subscan HP Sensor (S17)
10 Justification HP Sensor (S9) 23 Peel Sensor-Right (S14)
11 Interlock SW (SW3) 24 Ejection Shutter Close Sensor (S20)
12 Insertion Slot Sensor Receptor (LPB1, LPB2) 25 Feed Escape Position Sensor (S11)
13 Insertion Guide SW (SW4) 26 Feed HP Sensor (S10)
1
7
19
22
23
24
26
25
20
21
13
14
15
16
17
18
8
9
10
11
12
2
3
4
5
6
Left
Front
Right
Front
To Next Page
