Konica Minolta REGIUS 190 - Unlock Motor (M4)

61
2.4 Transport Unit
REGIUS MODEL 190 Service Manual Ver.1.00 2004.11.01

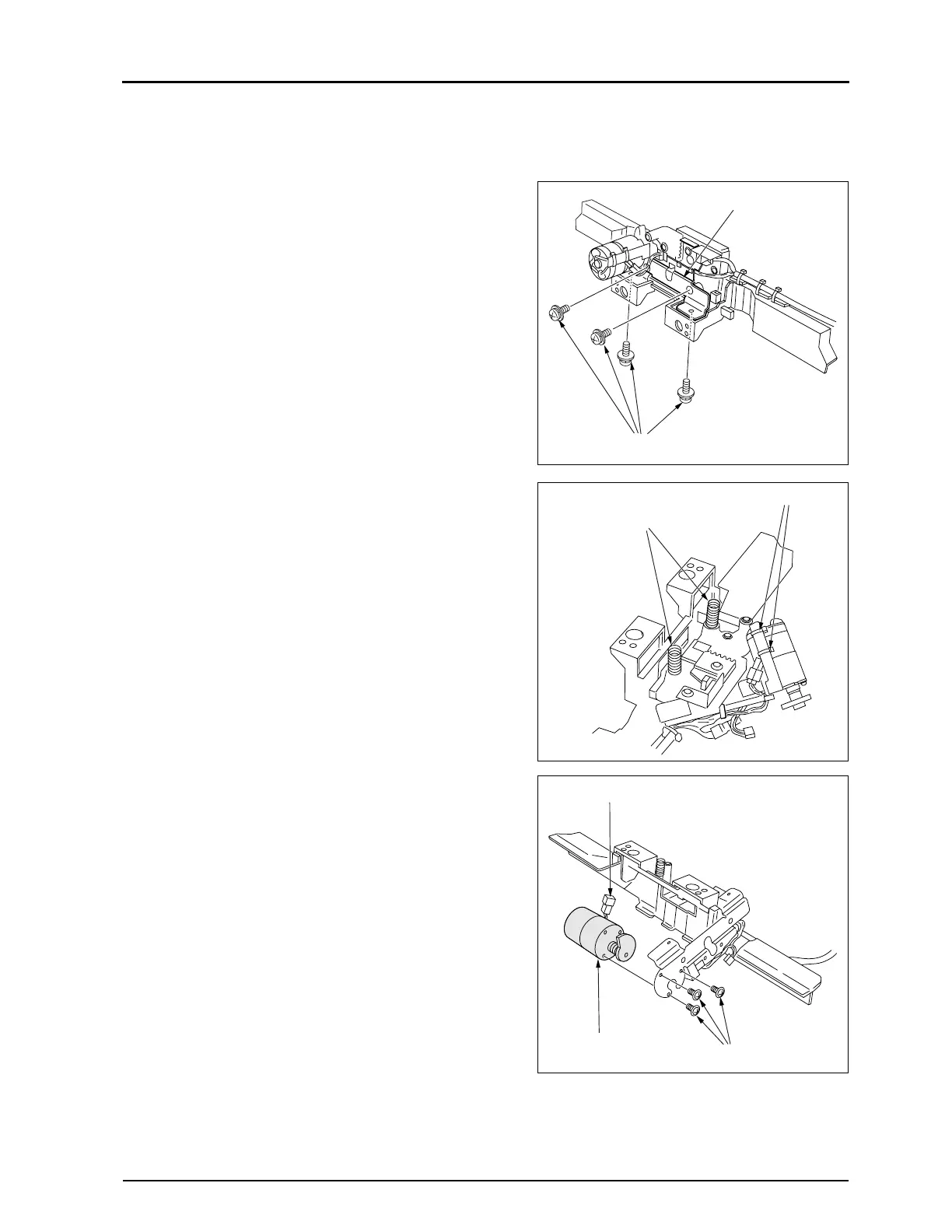

2.4.7 Unlock Motor (M4)
1. Remove the receiver assy. ("2.4.2 Removal of the Cassette
Receive Unit, p.54")
2. Remove the 4 fixing screws, and remove the receiver motor
bracket.
3. Cut the wire bundle of the receiver motor bracket.
4. Unplug the connector.
• JJ19
5. Remove the three fixing screws, and remove the unlock
motor (M4) from the receiver motor bracket.
6. Carry out reassembly in the reverse order to that described
above.
Receiver Motor Blacket
Fixing Screws
Tie Band
Blacket-Press Springs (Vertical)
Unlock Motor (M4)
Connector
Fixing Screws
