2.3 Insertion / Ejection Unit
REGIUS MODEL 190 Service Manual Ver.1.00 2004.11.01
2.3.6 Replacement of Insertion Motor
1. Remove the insertion / ejection unit front cover. ("2.2.4
Removal of Insertion / Ejection Front Cover, p.31"
2. Remove three fixing screws, and remove the insertion
motor (M1).
3. Detach the wire bundle from the wire clamp, and unplug a
connector.
• JJ47
4. Remove an E-ring, and remove the torque limiter.
5. Carry out reassembly in the reverse order to that described
above.

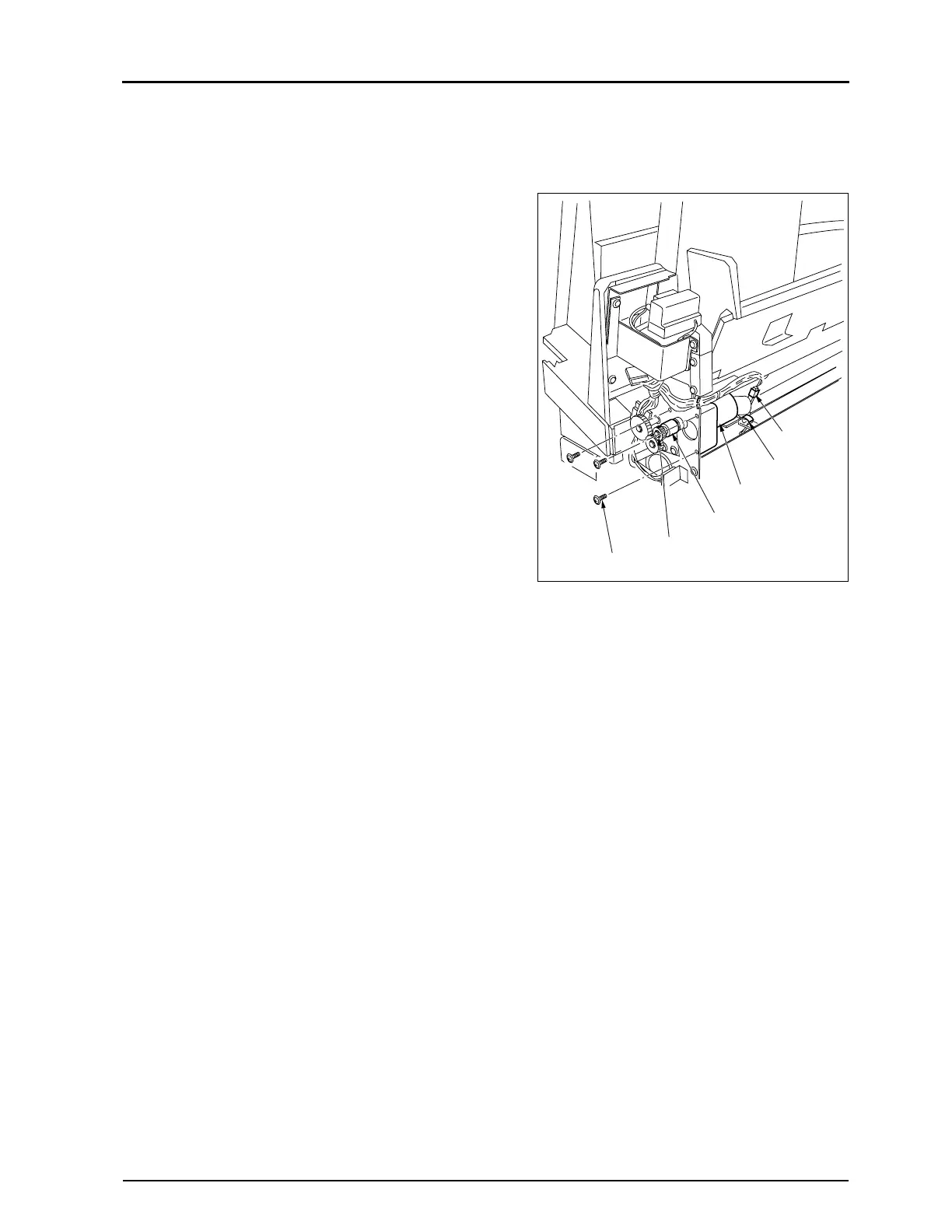

Fixing Screws (3pcs)
E-Ring
Torque Limitter
Insertion Motor (M1)
Wire Clamp
Connector
