3.1 Maintenance Items
REGIUS MODEL 190 Service Manual Ver.1.00 2004.11.01
3.1.4 Lubrication to the release shaft holder
Lubricate the actuator part of the release shaft holder once a
year.
• Recommended grease: PlusGuard No.2 of Kyodo Yushi
Co., Ltd. or equivalent.
1.
Open the front door.
2.
Using the handle for transport unit, lean the transport unit.
3.
Remove the cassette receive unit.(refer to p.54 )
4.
Apply a small amount of grease to the inner side of the
angle groove of the up/down bracket within which the
release shaft holder actuates.
5.
Move the sector gear several times to actuate the release
shaft holder so that the grease spread over the surface.
6.
Reverse the procedure of removal, and install the cassette
receiver unit on the transport unit.

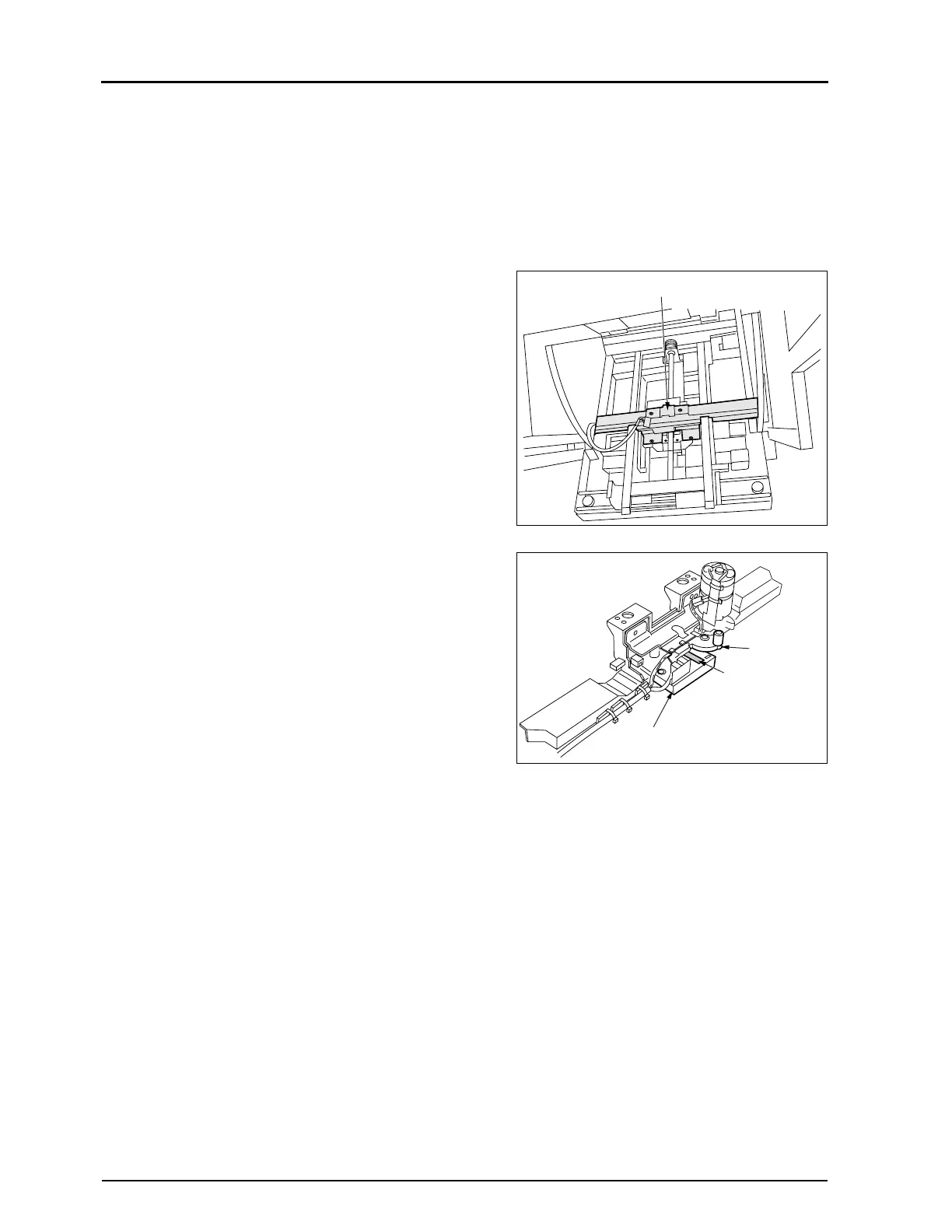

Cassette Receive Unit
Sector Gear
Up/Down Bracket
Lubricate the inner
surface of the
rectangular groove.
