Konica Minolta REGIUS 190 Service Manual

39
2.3 Insertion / Ejection Unit
REGIUS MODEL 190 Service Manual Ver.1.00 2004.11.01

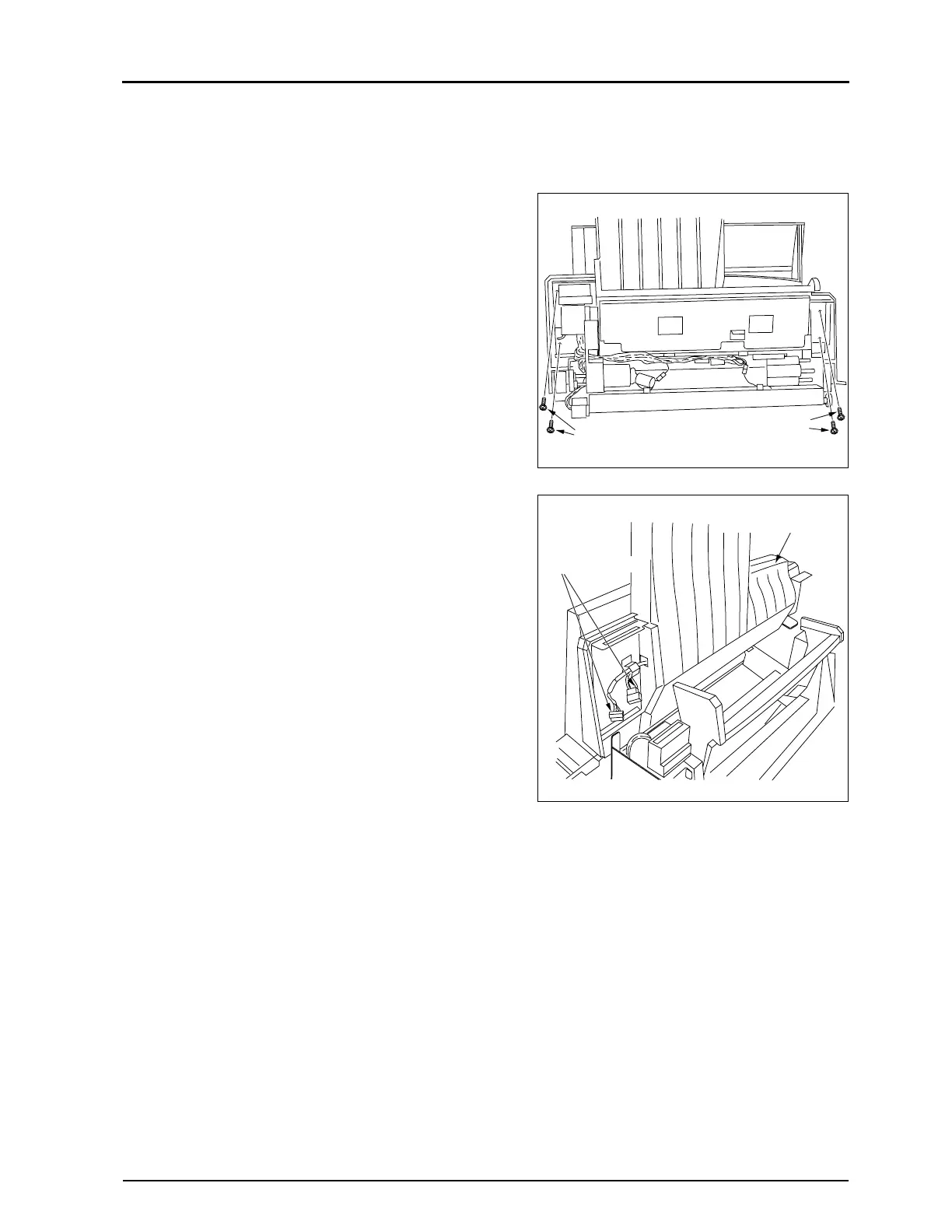

2.3.3 Removal of Ejection Guide Assy
1.
Remove the insertion / ejection unit front cover. ("2.2.4
Removal of Insertion / Ejection Front Cover, p.31")
2.
Remove 4 fixing screws (2 on each side).
3.
Unplug two relay connectors.
• JJ46, JJ59
4.
First, slide the ejection guide assy toward rear of the main
unit, lift it up, and remove from the main unit.
5.
Carry out reassembly in the reverse order to that described
above.
Fixing Screws
Fixing Screws
Relay Connectors
Ejection Guide Assy
