1.3 Layout of Controlling Components
REGIUS MODEL 190 Service Manual Ver.1.00 2004.11.01

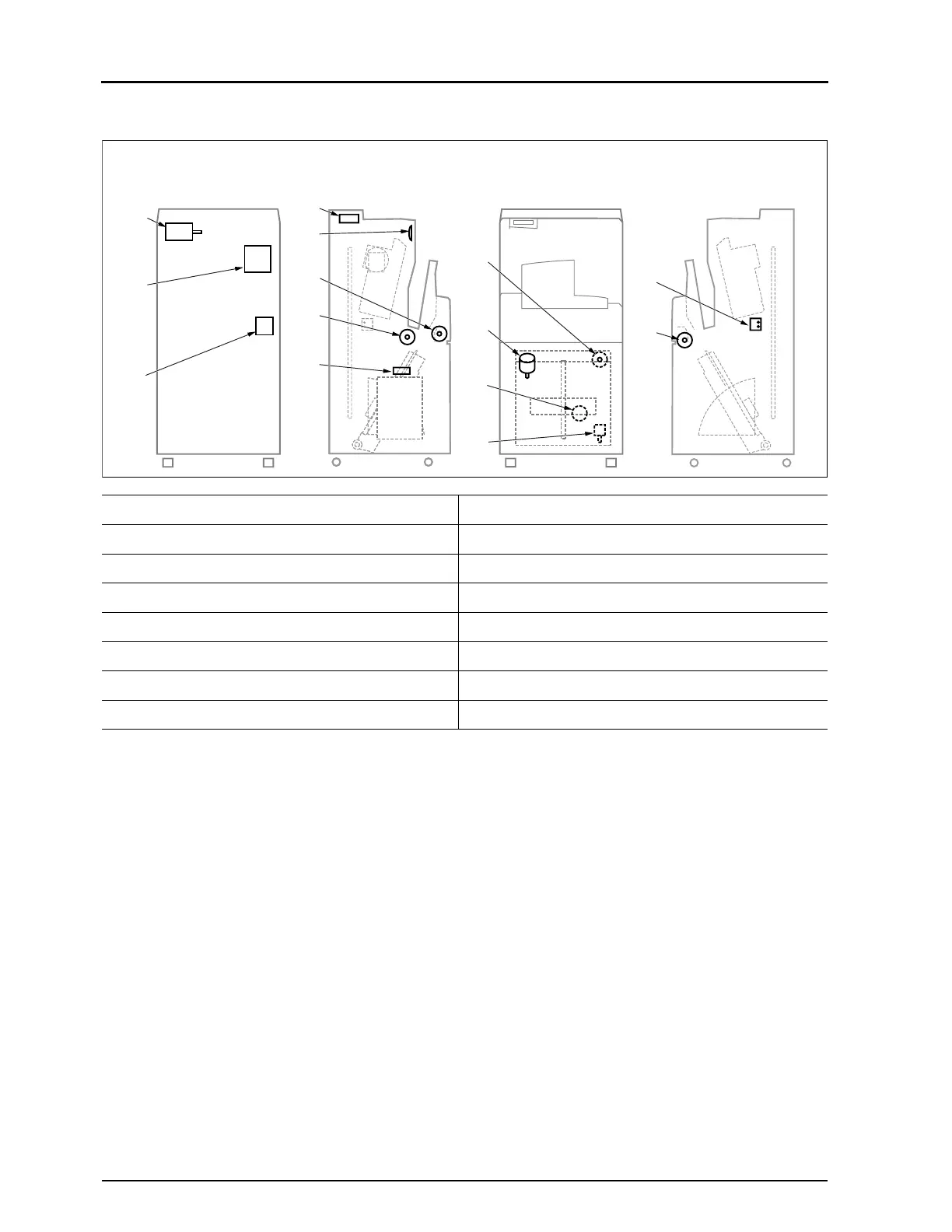

1.3.2 Locations of Motors and Fans
No. Part Name No. Part Name
1 Subscanning Motor (PM4) 8 MCB2 Cooling Fan (FM4)
2 DC Power Supply Cooling Fan (FM2) 9 Justification Motor (PM2)
3 Halogen Cooling Fan (FM3) 10 Transportation Motor (PM3)
4 Main Unit Exhaustion Fan (FM1) 11 Lock Release Motor (M4)
5 Speaker (SP1) 12 Elevator Motor (PM1)
6 Insertion Motor (M1) 13 Erase Lamp x 2 tubes (HL1, HL2)
7 Ejection Motor (M3) 14 Shutter Motor (M2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Rear
Left
Right
Front
