Konica Minolta REGIUS 190 Service Manual

57
2.4 Transport Unit
REGIUS MODEL 190 Service Manual Ver.1.00 2004.11.01

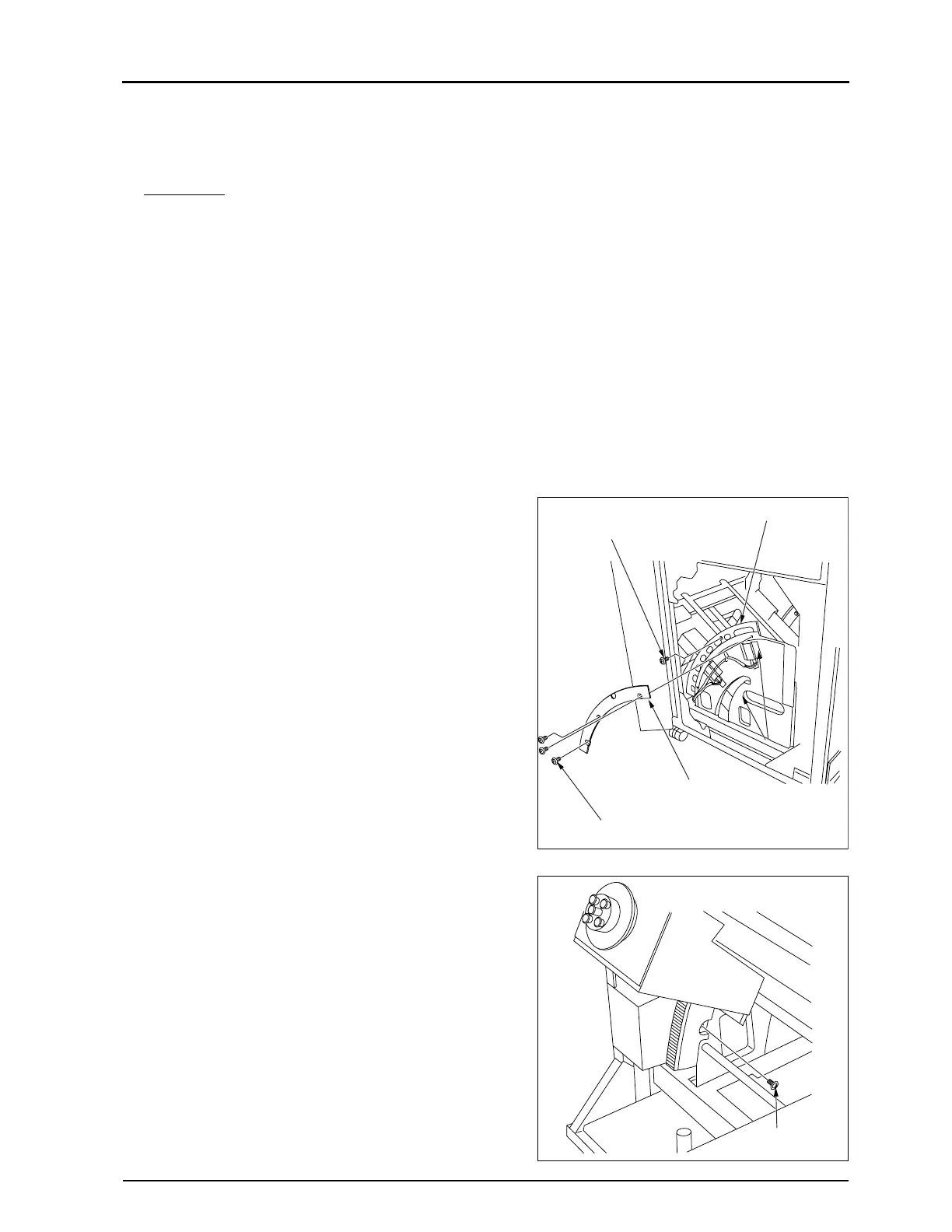

2.4.4 Replacement of Transport Rack Gear
The shape of transport rack gears on the right and left are
same.
Impor
tant When replacing the transport rack gear,
never remove the both (right and left)
gears at the same time. Doing so means
there is nothing left to support the trans-
portation unit, in consequence, it
becomes impossible to install the trans-
port rack gear.
1.
Remove the right cover. ("2.2.2 Removal of the Left & Right
Covers, p.29")
2.
Open the front cover.
3.
Using the handle, tilt the transportation unit until it comes to
stop-end.
• When the Transport Unit is at upright position, the trans-
portation rack gear is being pressed down by the weight
of the Transport Unit, rendering it difficult to remove the
unit
4.
Remove three fixing screws "a", and remove the rack gear
holder pad (right).
5.
Remove a fixing screw "b", and remove the transport rack
gear (right).
6.
Install a new transport rack gear on the right sector plate
with two fixing screws.
7.
Install the rack gear holder pad on the right sector plate with
three fixing screws.
8.
Using the handle, raise the Transport Unit until the fixing
screw on the lowest level of the rack gear holder pad (left) is
located.
9.
Remove the fixing screw on the lowest level of the rack gear
holder pad (left).
10.
Tilt the Transport Unit until it comes to stop-end using the
handle.
Transport Rack Gear (Right)
Rack Gear Holder Pad(Right)
Fixing Screw "b"
Fixing Screw "a" (3pcs)
Fixing Screw
