1. REPLACEMENT AND ADJUSTMENT

1.1 COMMON PROCEDURES

 The finisher must be removed from the machine for these procedures except

"Output Tray Lower Cover" removal procedure. The following covers cannot be

removed while the finisher is attached to the machine.

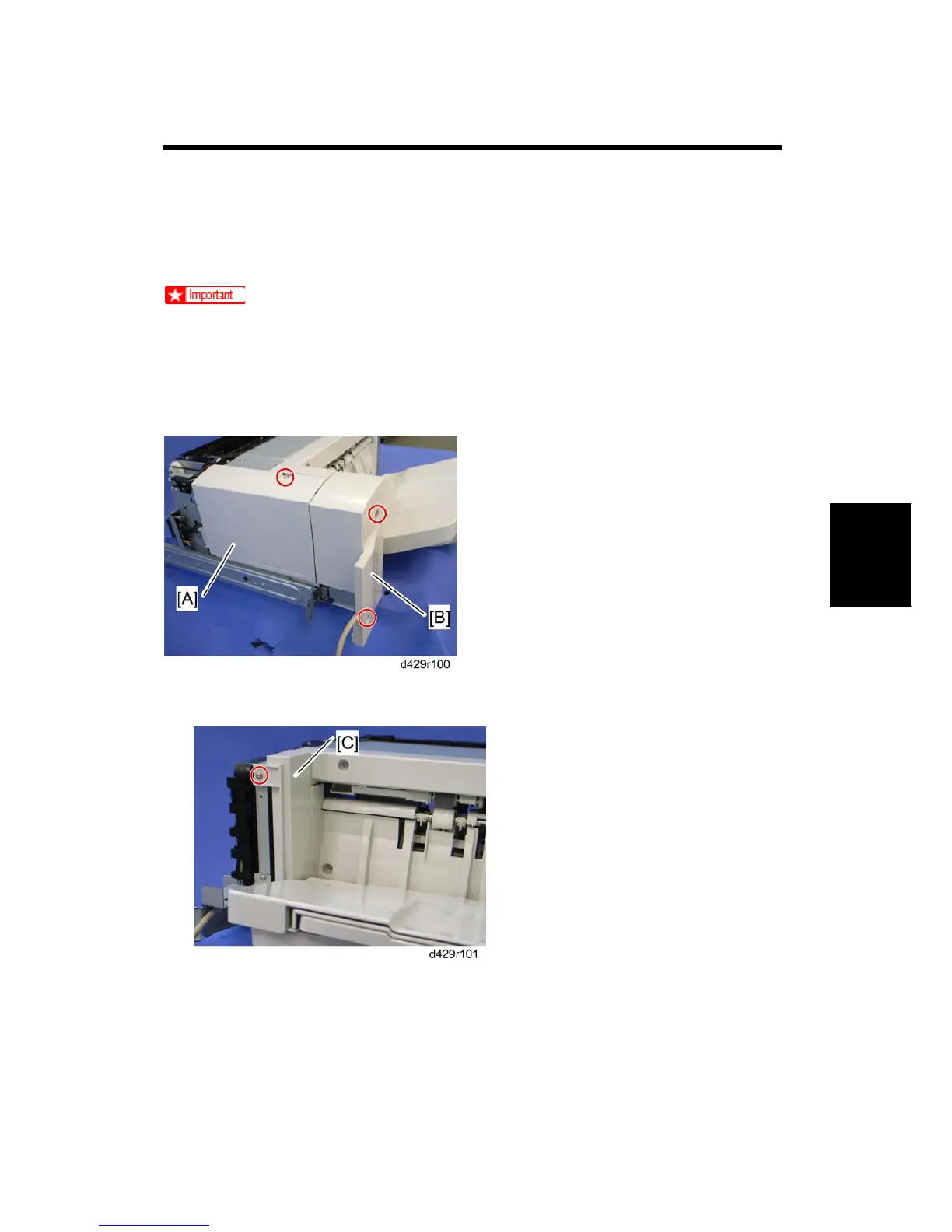

1.1.1 REAR, LEFT REAR AND REAR INNER COVER

1. Rear cover [A] ( x 1)

2. Left rear cover [B] ( x 2)

3. Rear inner cover [C] ( x 1)
