Ricoh Aficio MP C2030 Service Manual

Scanner Unit
SM 4-33 D037/D038/D040/D041
Replacement
& Adjustment

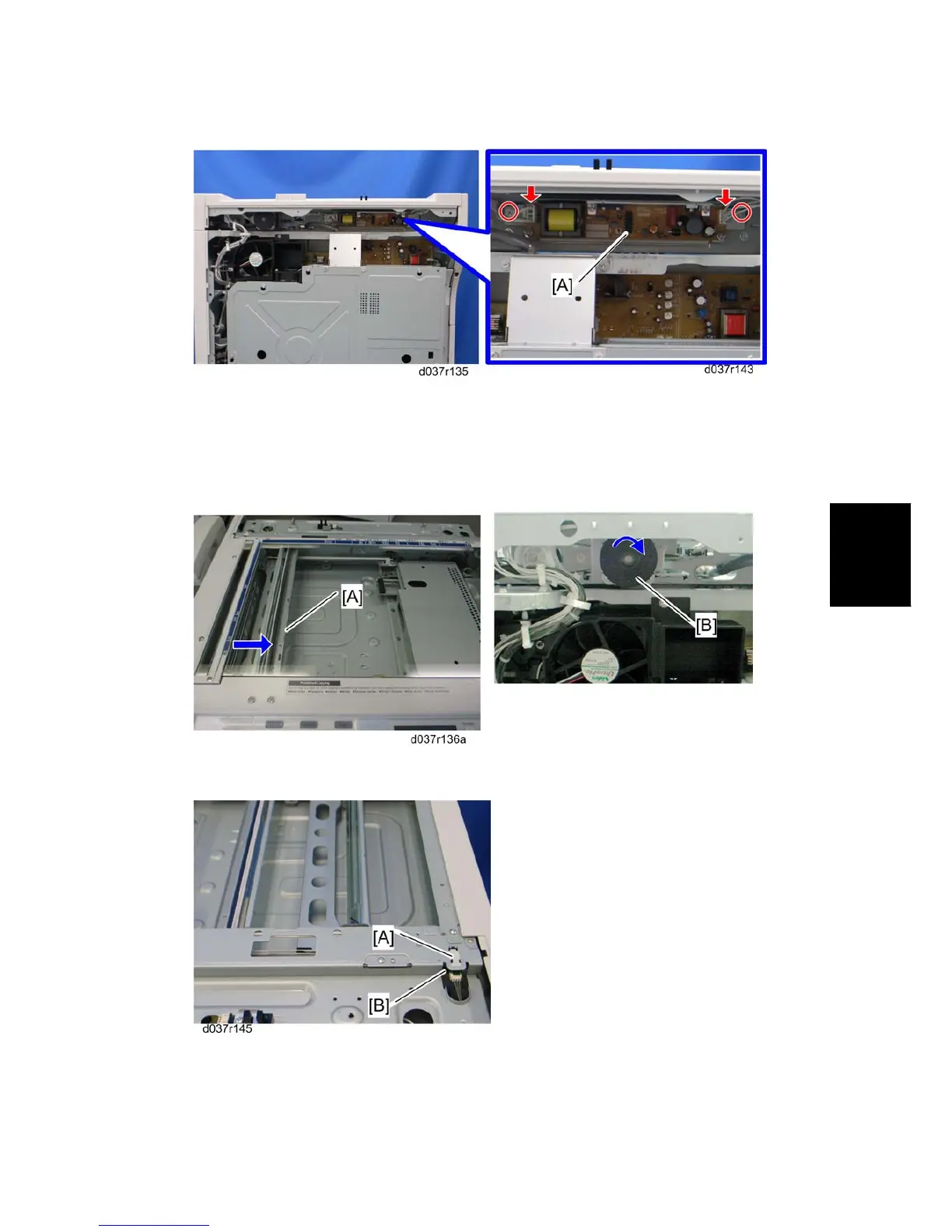

2. Exposure lamp stabilizer bracket [A] ( x 2,  x 2)
4.5.7 SCANNER HP SENSOR
1. Rear Cover ( Section: Rear Cover)
2. Scanner rear cover ( Section: Exposure Lamp)
3. Move the 1st scanner carriage [A] to the right side by rotating the scanner motor [B]
clockwise.
4. Remove the mylar [A].
5. Remove the scanner HP sensor [B] ( x 1, hooks).
