Fusing
D037/D038/D040/D041 4-84 SM

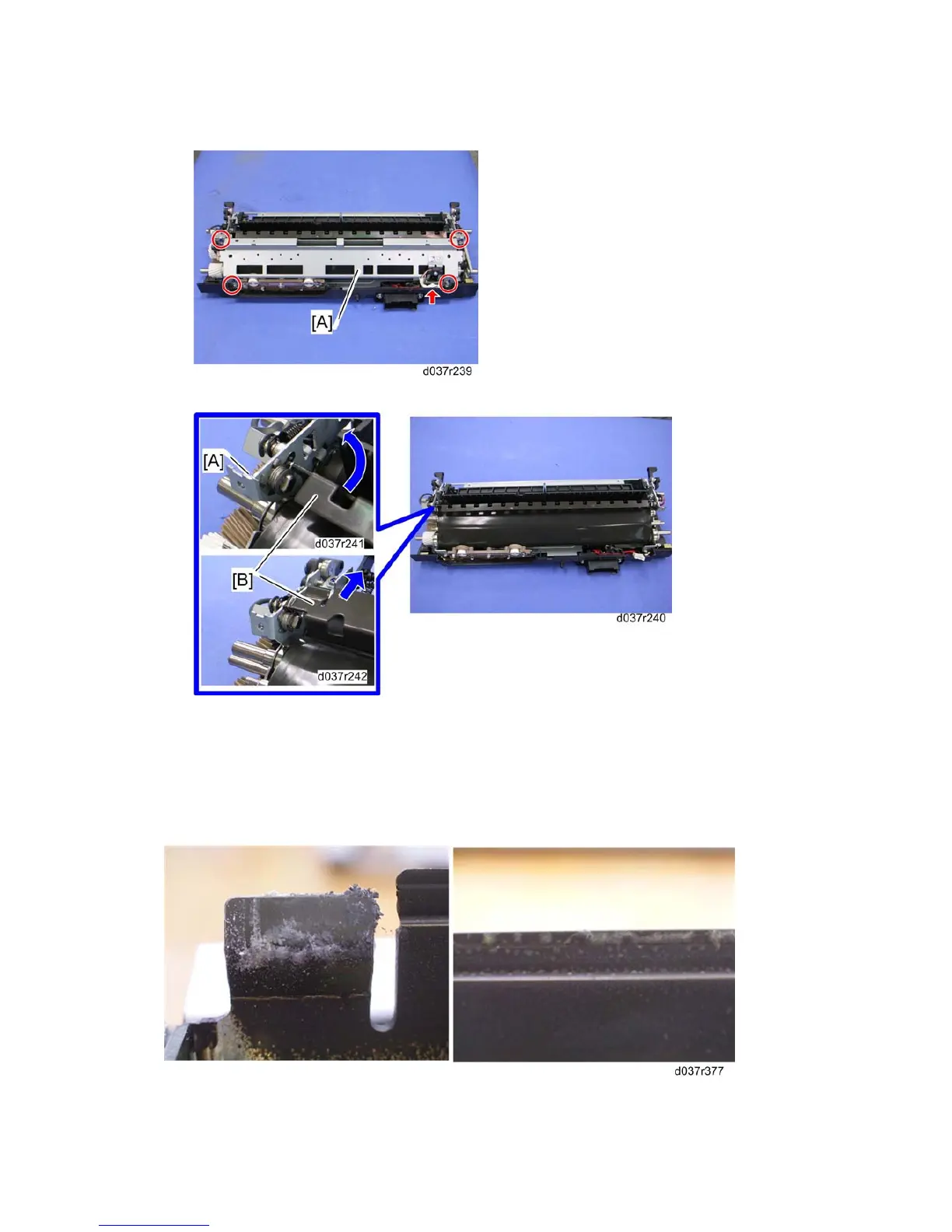

4. Top frame [A] ( x 4, x 1)
5. Release the springs [A] at the front and rear side.
6. Stripper plate [B]
Cleaning Requirement
The stripper plate requires cleaning maintenance at every 60 K interval. Clean the stripper
plate with a cloth moistened with alcohol at the following points.
