Duplex Unit
SM 4-117 D037/D038/D040/D041
Replacement
& Adjustment
guide unit.

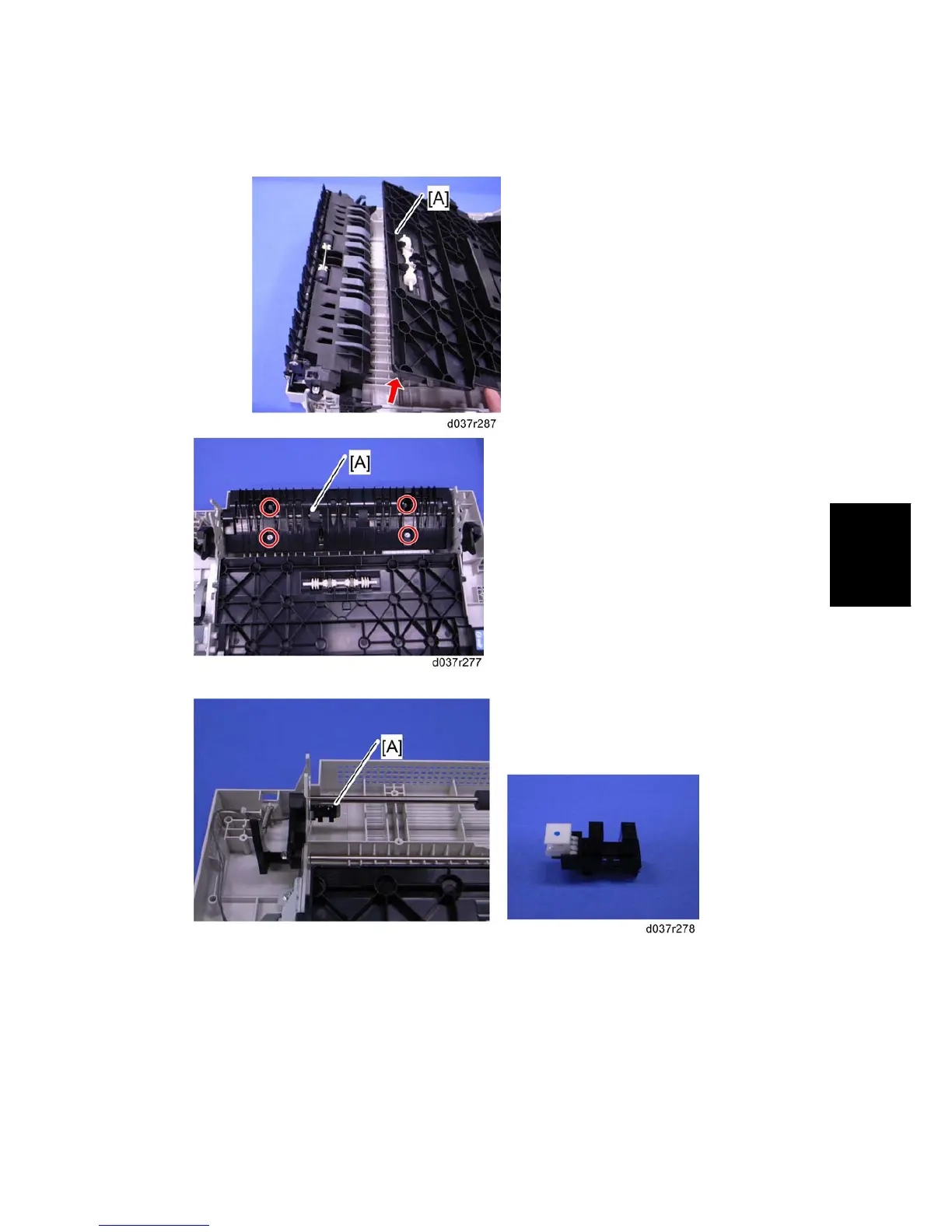

4. Duplex outer guide plate [A] ( x 4)
5. Duplex entrance sensor [A] (hook)
4.14.3 DUPLEX EXIT SENSOR
1. Pull out the 1st tray.
2. Duplex unit ( Section: Duplex Unit)
