Service Program Mode
SM 5-3 D037/D038/D040/D041
System
Maintenance
Reference
Switching Between SP Mode and Copy Mode for Test Printing
1. In the SP mode, select the test print. Then press "Copy Window".
2. Use the copy window (copier mode), to select the appropriate settings (paper size,
etc.) for the test print.
3. Press Start C to start the test print.
4. Press SP Mode (highlighted) to return to the SP mode screen and repeat from step 1.
Selecting the Program Number
Program numbers have two or three levels.
1. Refer to the Service Tables to find the SP that you want to adjust before you begin.
2. Press the Group number on the left side SP Mode window that contains the SP that
you want to adjust.

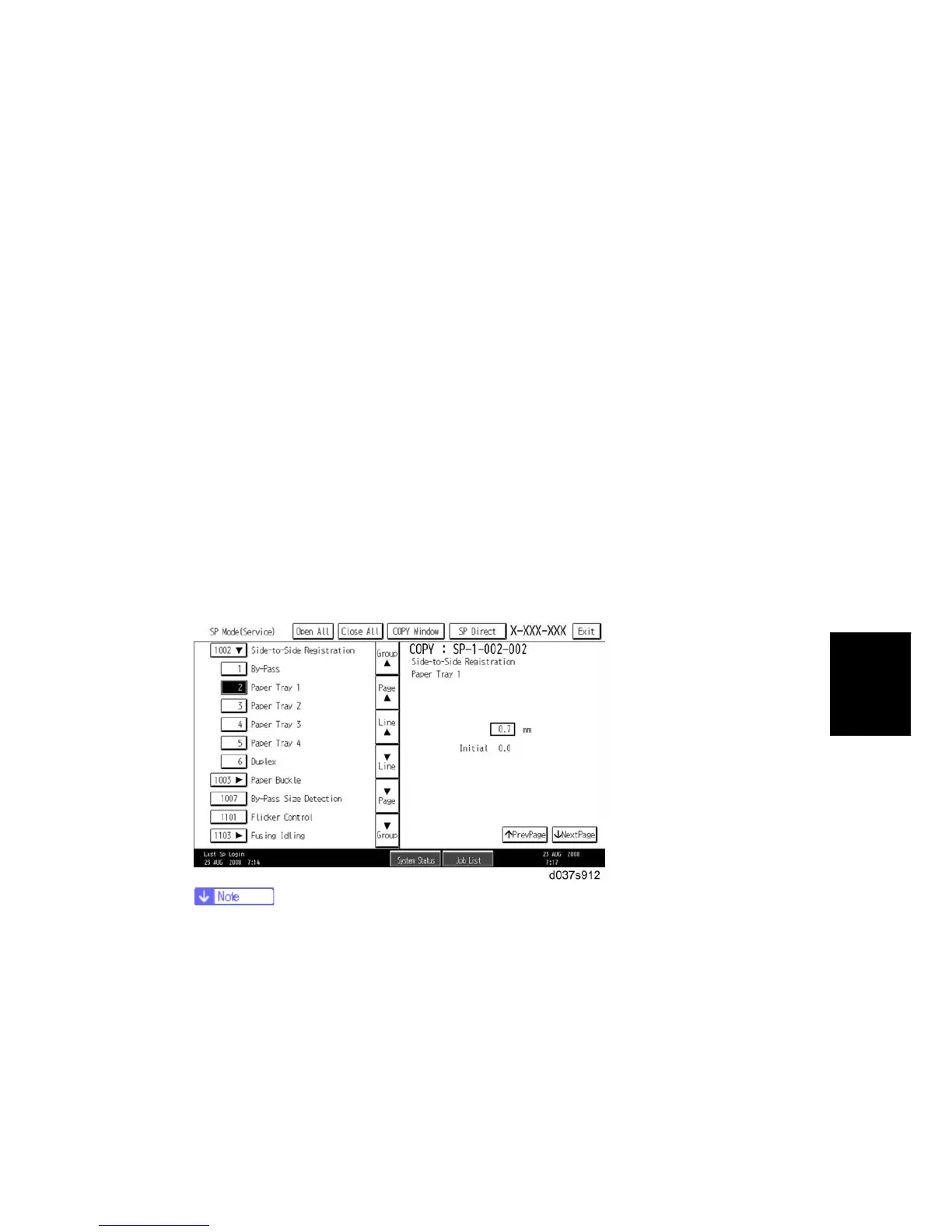

3. Use the scrolling buttons in the center of the SP mode window to show the SP number
that you want to open. Then press that number to expand the list.
4. Use the center touch-panel buttons to scroll to the number and title of the item that you
want to set and press it. The small entry box on the right activates and shows the
below default or the current settings.
Refer to the SP Tables for the range of allowed settings.
1. Do this procedure to enter a setting:
Press to toggle between plus and minus and use the keypad to enter the
appropriate number. The number you enter writes over the previous setting.
Press to enter the setting. (The value is not registered if you enter a number
that is out of range.)
Press “Yes” when you are prompted to complete the selection.
