Ricoh Aficio MP C2030 Service Manual

Component Layout
D366 16 SM
PCBs
PCB1 Main
Interfaces the sensor signals with the copier,
and transfers the magnetic clutch, solenoid
and motor drive signals from the copier.
6

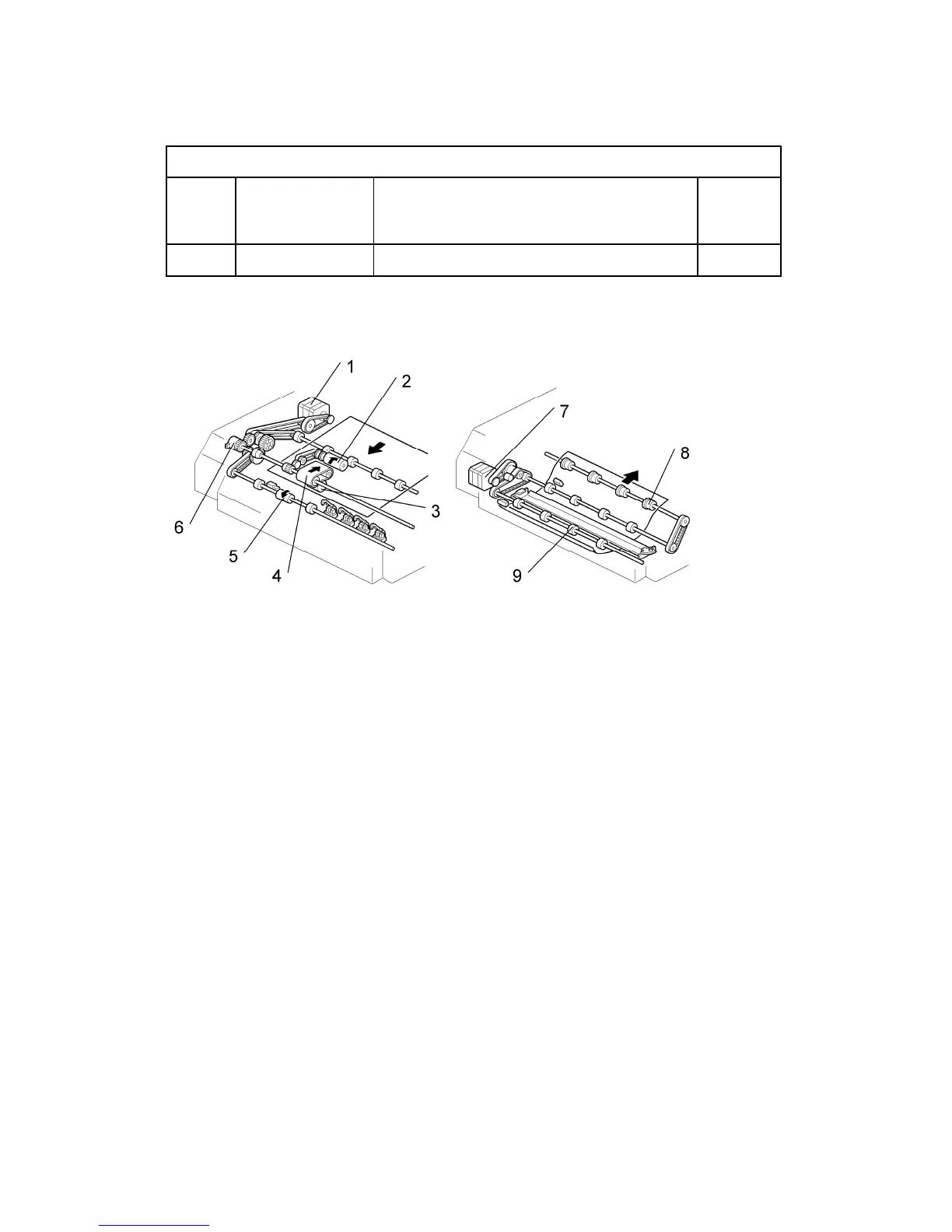

2.1.3 DRIVE LAYOUT
1. Feed Motor
2. Pick-up Roller
3. Separation Roller
4. Feed Belt
5. Skew Correction Roller
6. Feed Clutch
7. Transport Motor
8. Exit Roller
9. Registration Roller
 Feed Motor: Drives the feed belt, separation, pick-up, and skew correction rollers.
 Transport Motor: Drives the registration and exit rollers.
