Paper Feed
SM 4-107 D037/D038/D040/D041
Replacement
& Adjustment

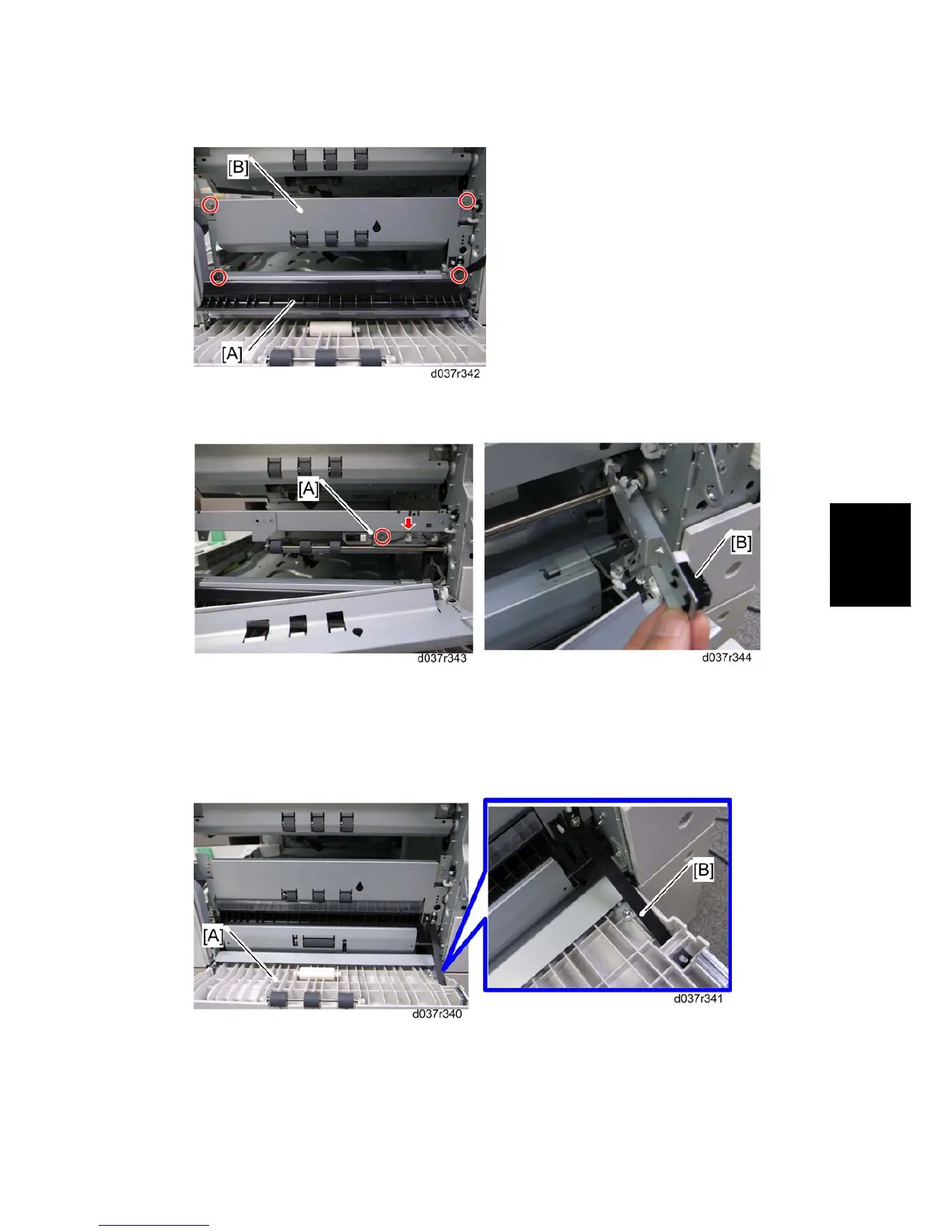

6. Open the lower guide plate [A]
7. Middle guide bracket [B] ( x 4, = x 2, x 1)
8. Sensor bracket [A] ( x 1, = x 1)
9. Vertical transport sensor 1 [B] ( x 1, hooks)
Vertical Transport Sensor 2
1. Duplex unit ( Section: Duplex Unit)
2. Open the lower right door [A].
3. Release the belt [B].
