Paper Feed
D037/D038/D040/D041 4-102 SM

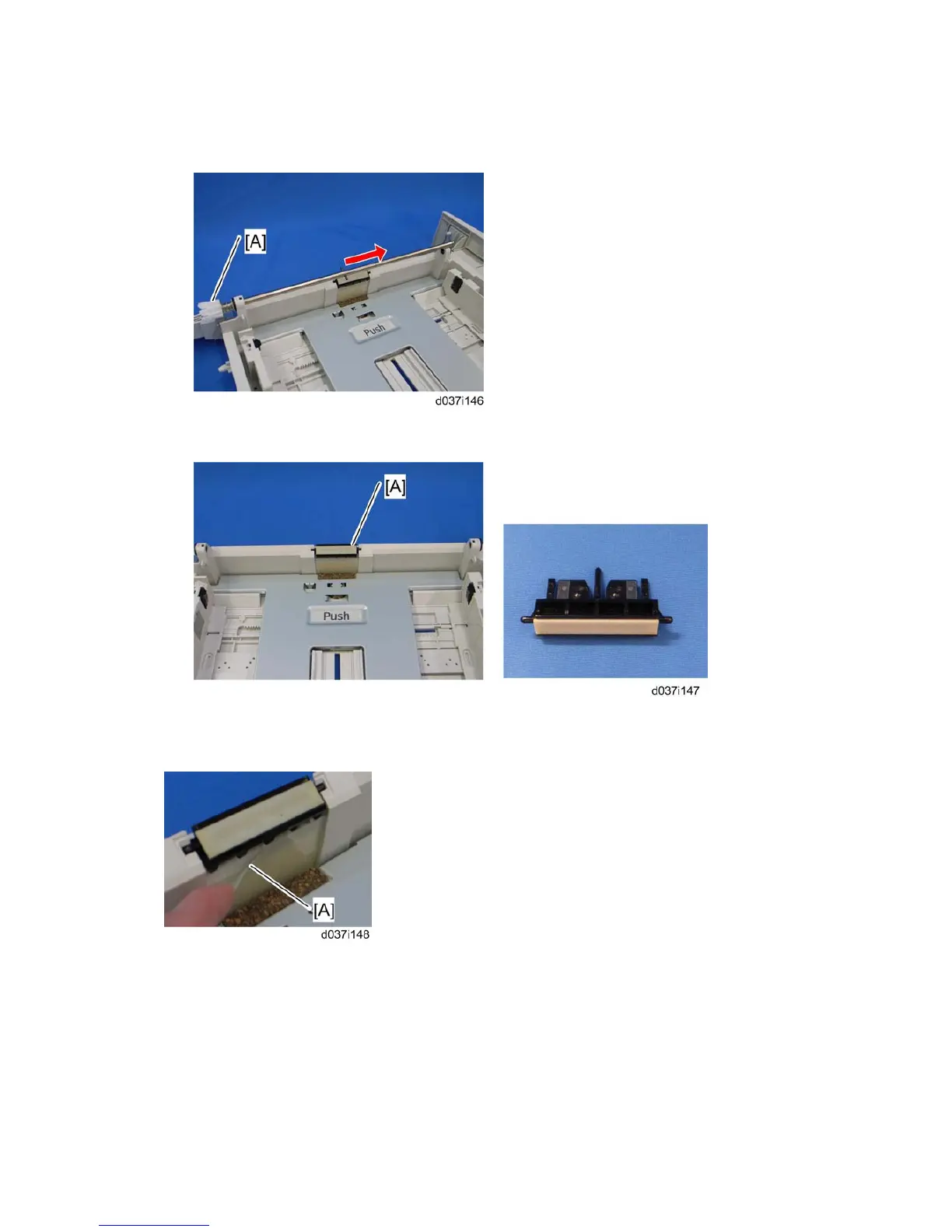

2. Feed roller ( Section: Feed Roller)
3. Remove the coupling gear [A] (pin x 1, spring x 1, x 1).
4. Slide the feed roller shaft to the front side, and then remove it.
5. Friction pad [A] (hooks, spring x 1)
When reinstalling the friction pad
Make sure that the mylar [A] does not go under the friction pad when reinstalling the friction
pad.
Do not touch the feed roller with your bare hands, when replacing it. If you do, clean the
feed roller with a damp cloth or alcohol.
