Component Layout
SM 9 D331
Paper Tray
Unit PB3030
D331
2. DETAILED SECTION DESCRIPTIONS
2.1 COMPONENT LAYOUT

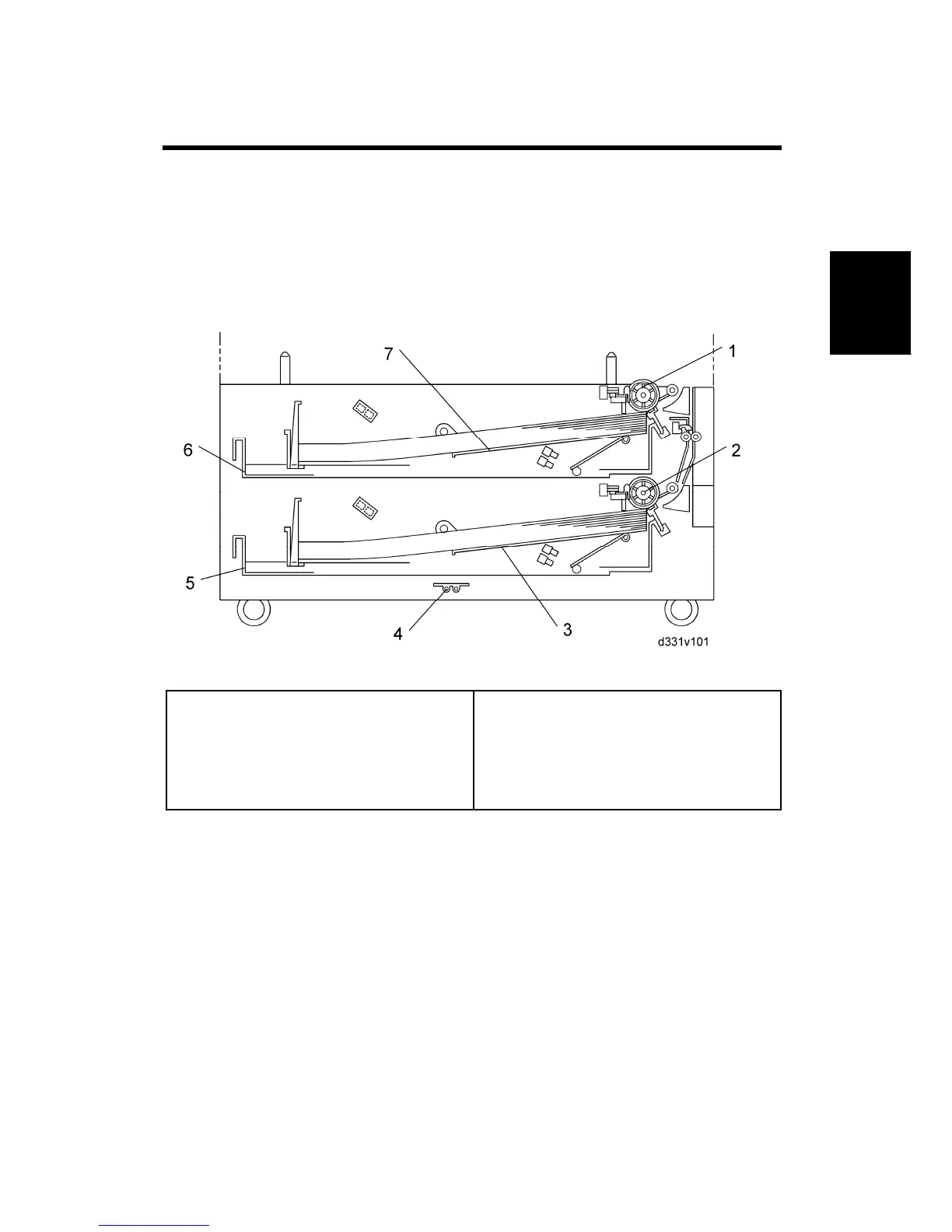

2.1.1 MECHANICAL COMPONENT LAYOUT
1. Upper paper feed roller
2. Lower paper feed roller
3. Lower bottom plate
4. Optional tray heater
5. Lower tray
6. Upper tray
7. Upper bottom plate
