Ricoh Aficio MP C2030 Service Manual

Duplex Unit
D037/D038/D040/D041 4-120 SM

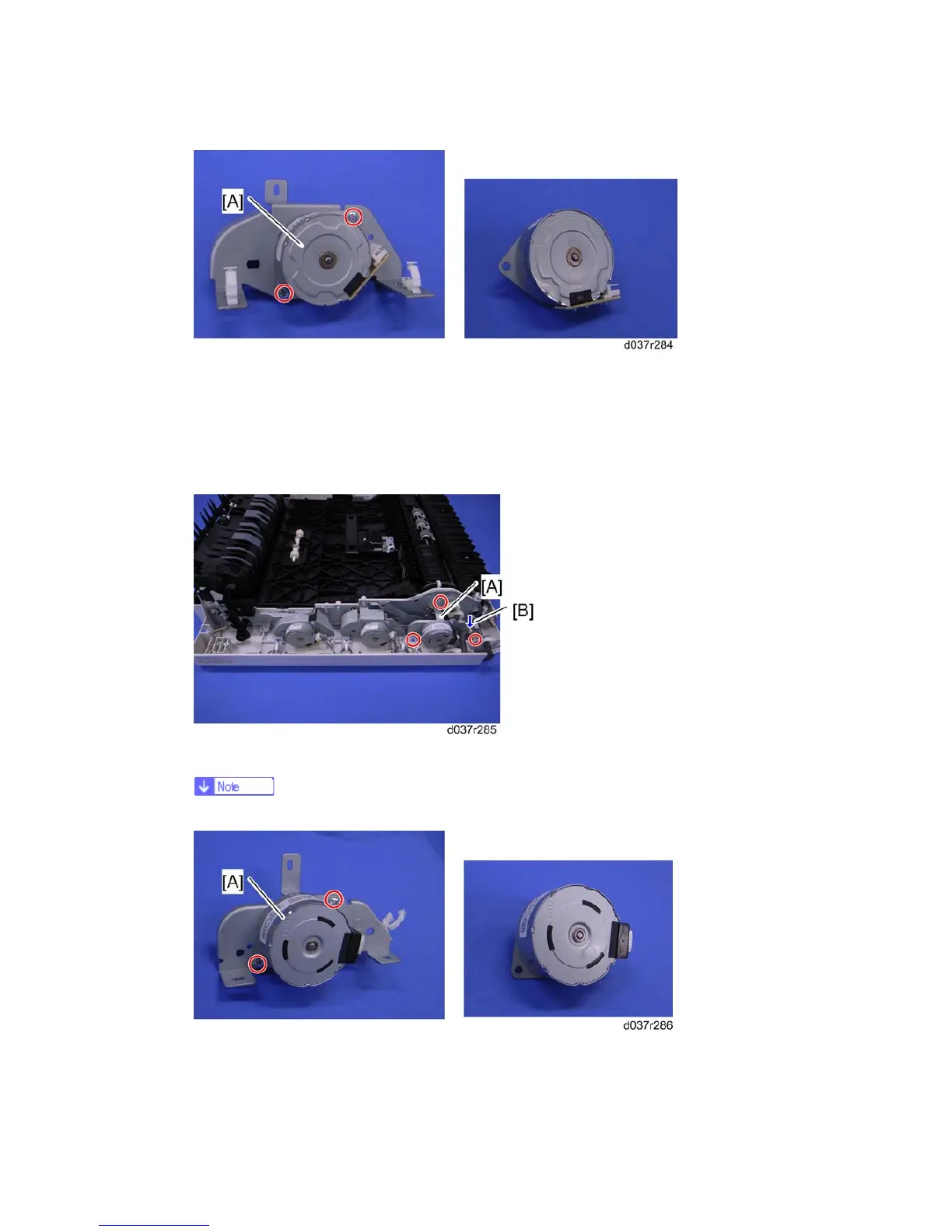

4. Separate the duplex exit motor [A] from the bracket ( x 2)
4.14.6 BY-PASS MOTOR
1. Duplex unit ( Section: Duplex Unit)
2. Duplex inner cover ( Section: Duplex Entrance Sensor)
3. By-pass motor with the bracket [A] ( x 3, = x 2,  x 1)
 Remove the clamp [B] from the bracket to disconnect the harness.
4. By-pass motor [A] ( x 2)
