Fusing
SM 4-83 D037/D038/D040/D041
Replacement
& Adjustment

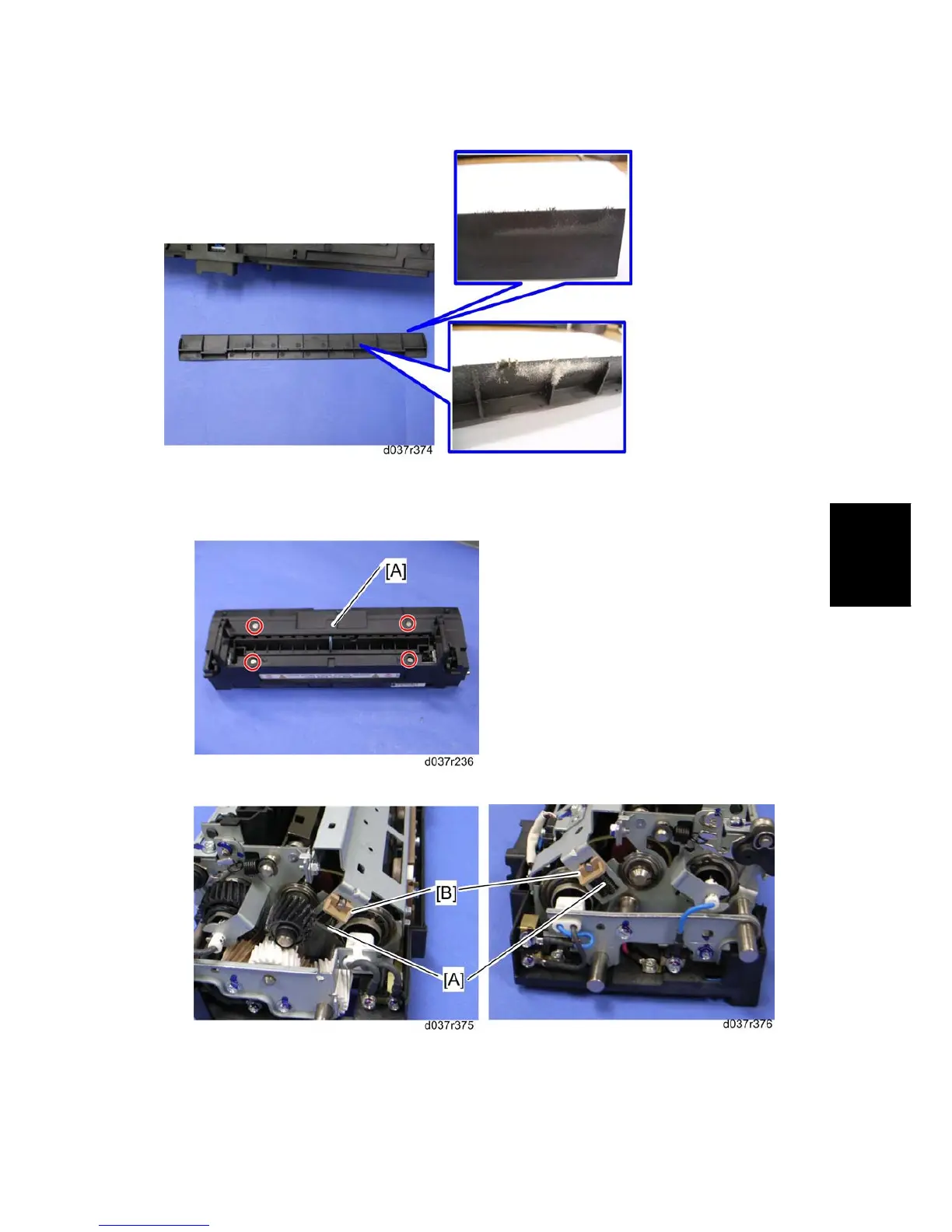

4.11.4 STRIPPER PLATE
1. Fusing unit ( Section: Fusing Unit)
2. Fusing upper cover [A] ( x 4)
3. Spring [A] and bearing [B] at front and rear side
