Ricoh Aficio MP C2030 Service Manual

Punch Unit
D429 14 SM

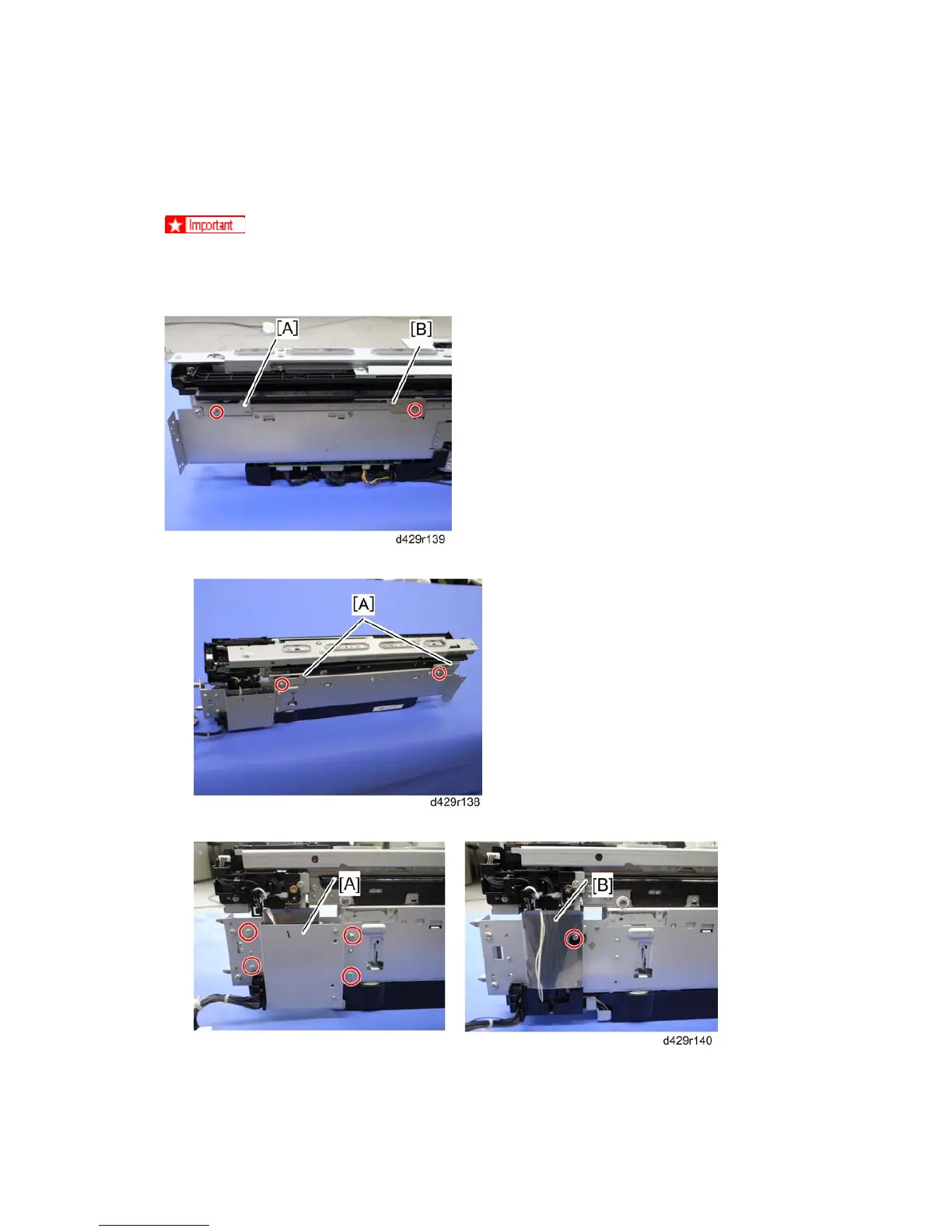

1.7 PUNCH UNIT
 The punch unit must be removed from the internal finisher for this procedure.
1.7.1 PUNCH SLIDER UNIT
1. Brackets [A] and ground plate [B] at the right side of the punch unit ( x 1 each)
2. Brackets [A] at the left side of the punch unit ( x 1 each)
3. Harness bracket [A] ( x 4)
4. Wire guide cover [B] ( x 1)
