Electrical Components
SM 3 D427
D427
Side Tray
Type C2550

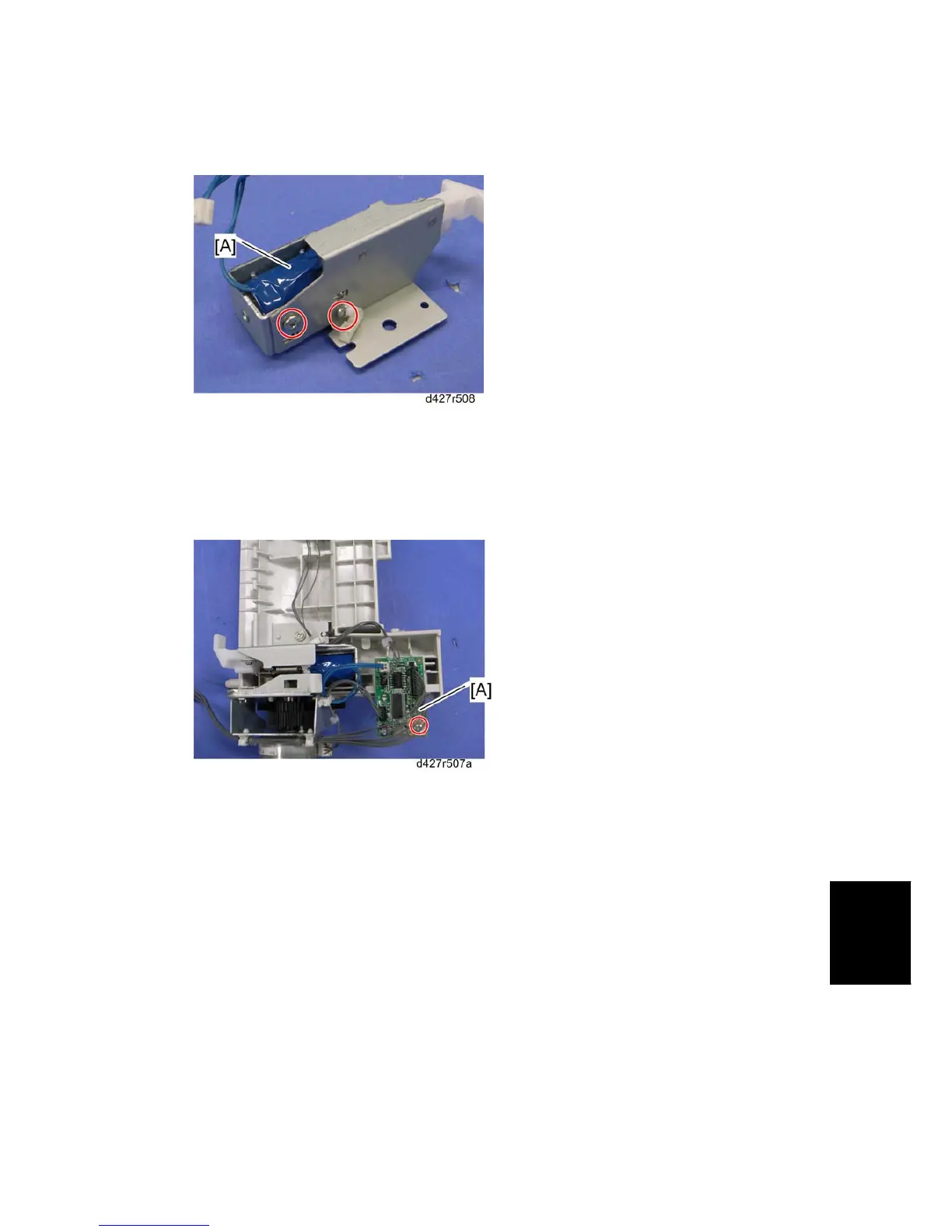

3. Side tray gate solenoid assembly [A] (= x 2, x 1, x 1)
4. Side tray gate solenoid [A] ( x 2, spring x 1)
1.1.4 SIDE TRAY BOARD
1. Side tray paper exit unit
2. Side tray upper cover ( Side Tray Motor)
3. Side tray board [A] ( x 1, x all)
