Motors and Clutch
D425 4 SM

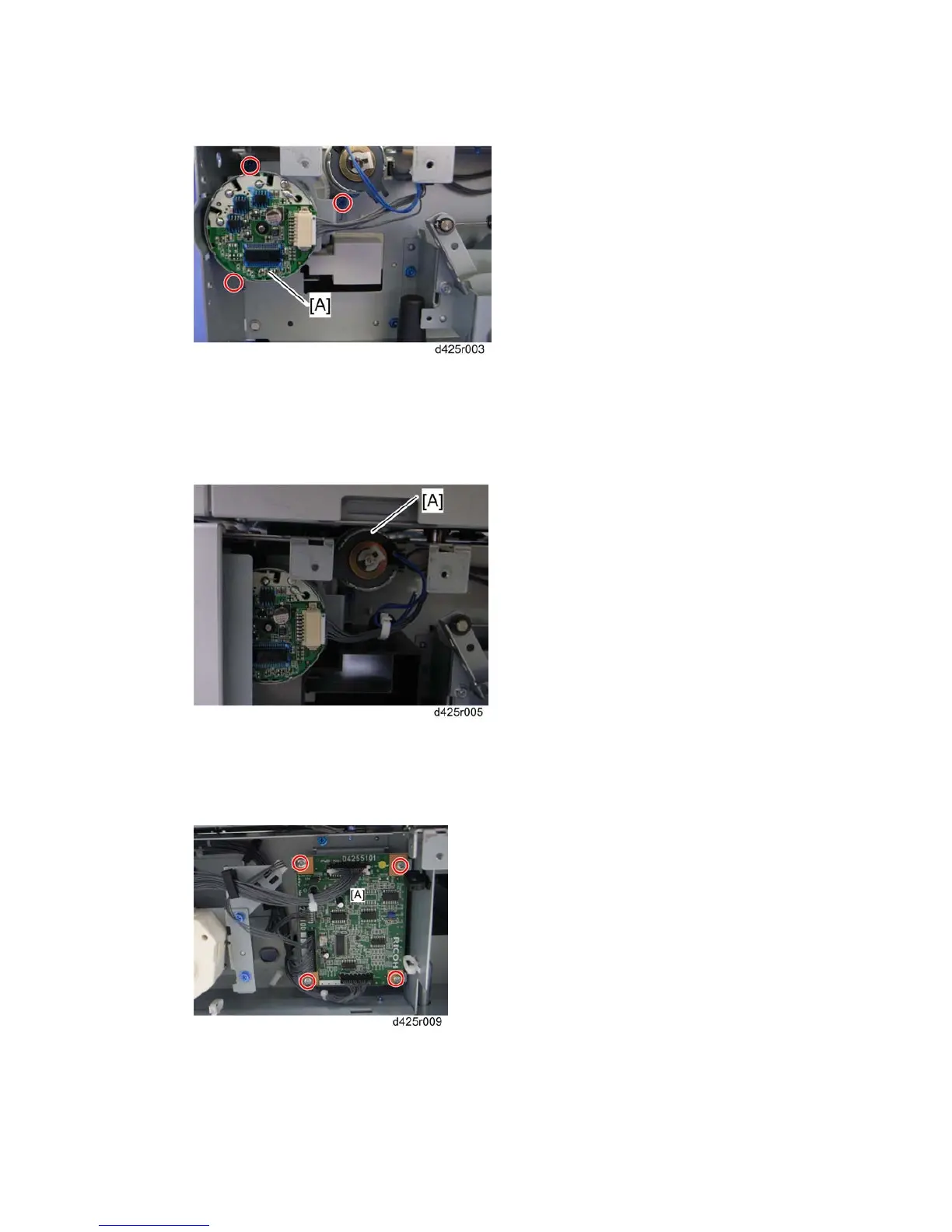

7. Transport motor [A] ( x 3, x 1)
1.2.3 PAPER FEED CLUTCH
1. Rear Cover ( Rear Cover)
2. Rear right bracket ( Transport Motor)
3. Paper feed clutch [A] (= x 1, x 1, x 1)
1.2.4 MAIN BOARD
1. Rear cover ( Rear Cover)
2. Main board [A] (All s, x 4)
