Image Transfer
SM 4-65 D037/D038/D040/D041
Replacement
& Adjustment
14. Image transfer belt [B]
When reinstalling a new image transfer belt
Reset the PM counter

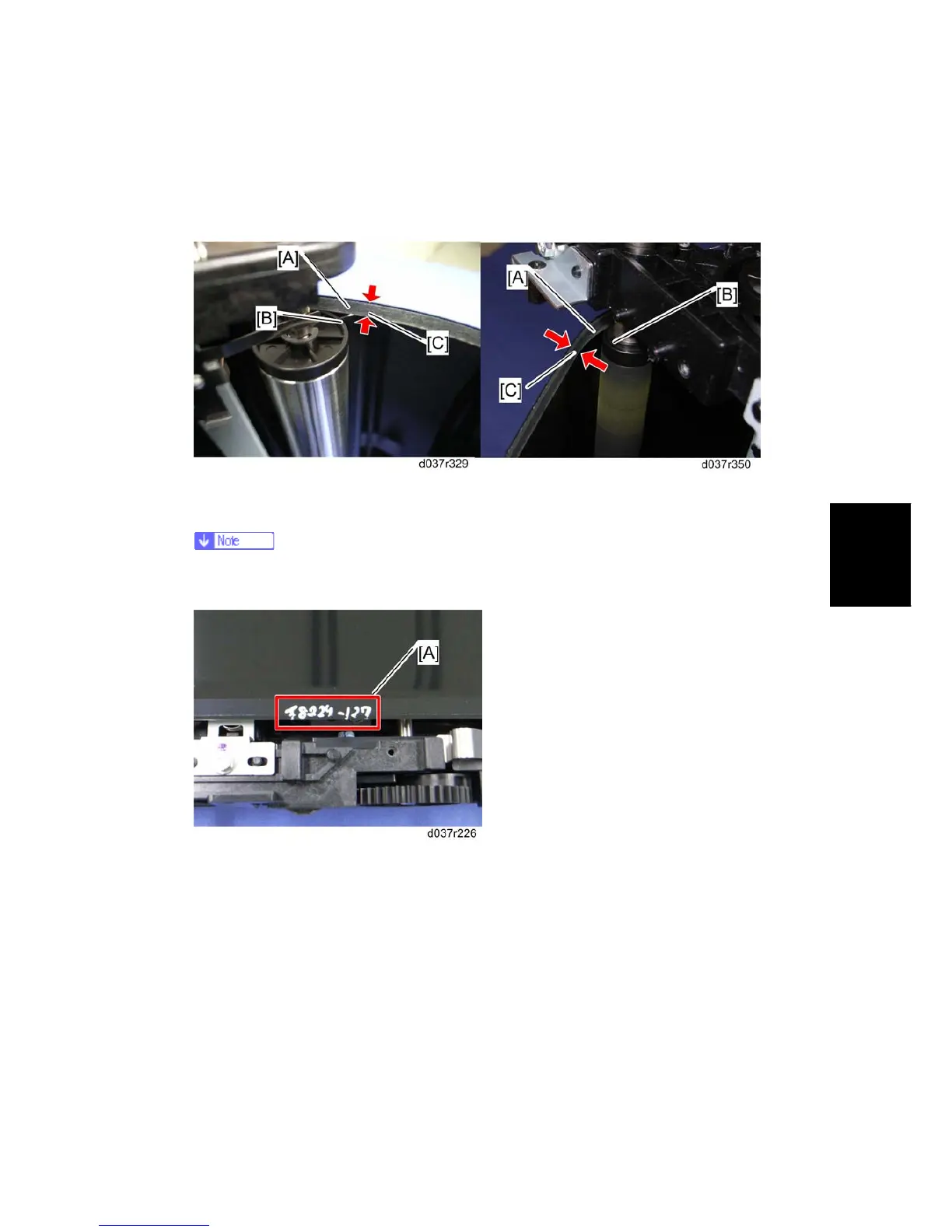

There is a rim [A] at each edge of the transfer belt. The ends of all the rollers ([B] for
example) in the transfer belt unit must be between the two rims.
There are two rims (width [C]: about 5 mm) at the front and rear edges inside
the image transfer belt.
This belt must be installed the correct way around. When you reinstall the image
transfer belt unit, install it with the number [A] on the belt at the rear side of the unit.
4.8.6 ITB CONTACT MOTOR
1. Pull out all the toner bottles.
2. Inverter tray ( Section: Inverter Tray)
3. Inner tray ( Section: Inner Tray)
To Next Page
