Ricoh Aficio MP C2030 Service Manual

Covers and Tray
SM 1 D366
ARDF DF3030
D366
1. REPLACEMENT AND ADJUSTMENT
1.1 COVERS AND TRAY

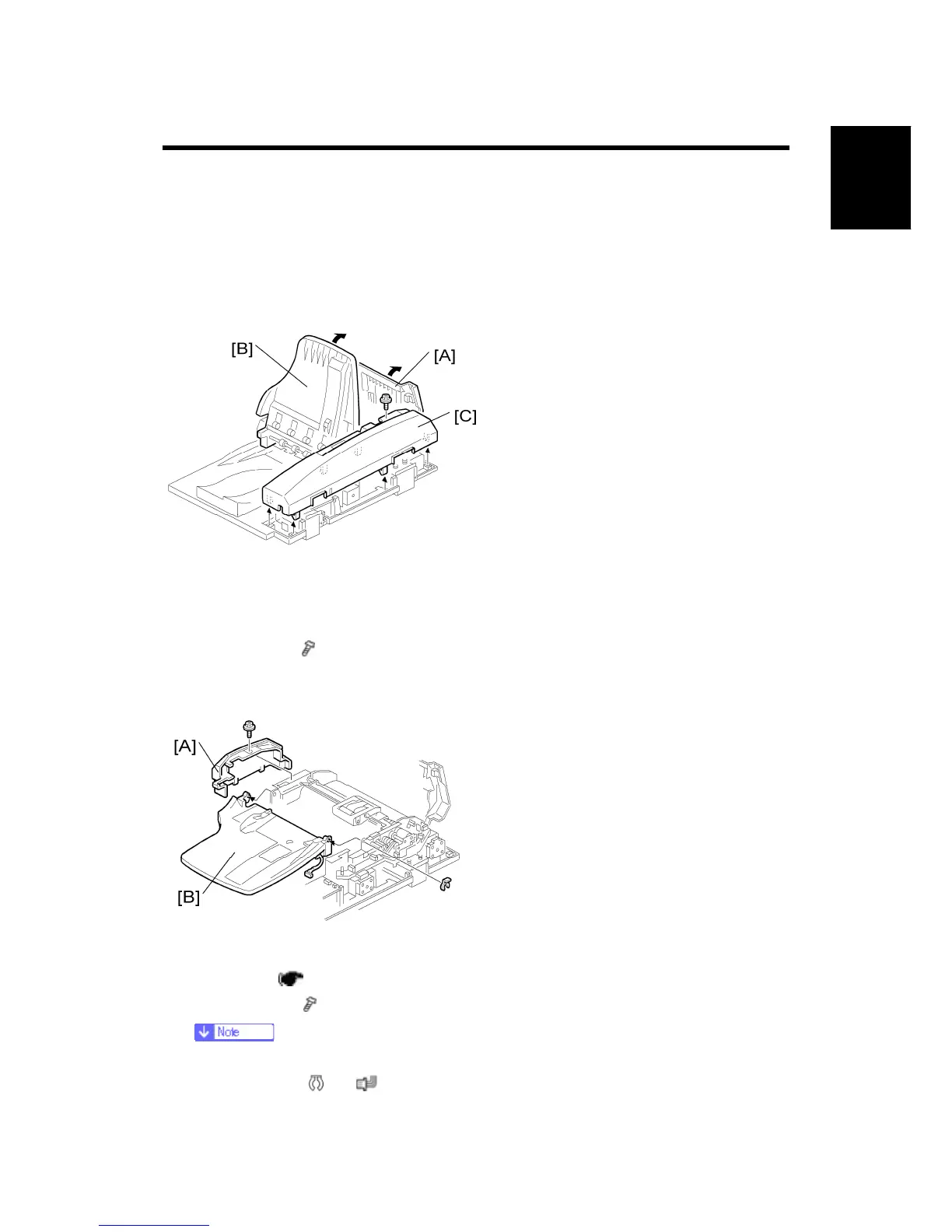

1.1.1 REAR COVER
1. Open the left cover [A].
2. Open the original tray [B].
3. Rear cover [C] (
x 1, hook x 6)
1.1.2 FRONT COVER AND ORIGINAL TRAY
1. Open the left cover.
2. Rear cover (
"Rear Cover")
3. Front cover [A] (
x 1)
 Keep the original tray open when you remove the front cover.
4. Original tray [B] (
x 1, x 1)
