Tray Heater (Mainframe)
SM 2-77 D037/D038/D040/D041
Installaion
2.20 TRAY HEATER (MAINFRAME)
2.20.1 INSTALLATION PROCEDURE
 This heater is supplied as a spare part.

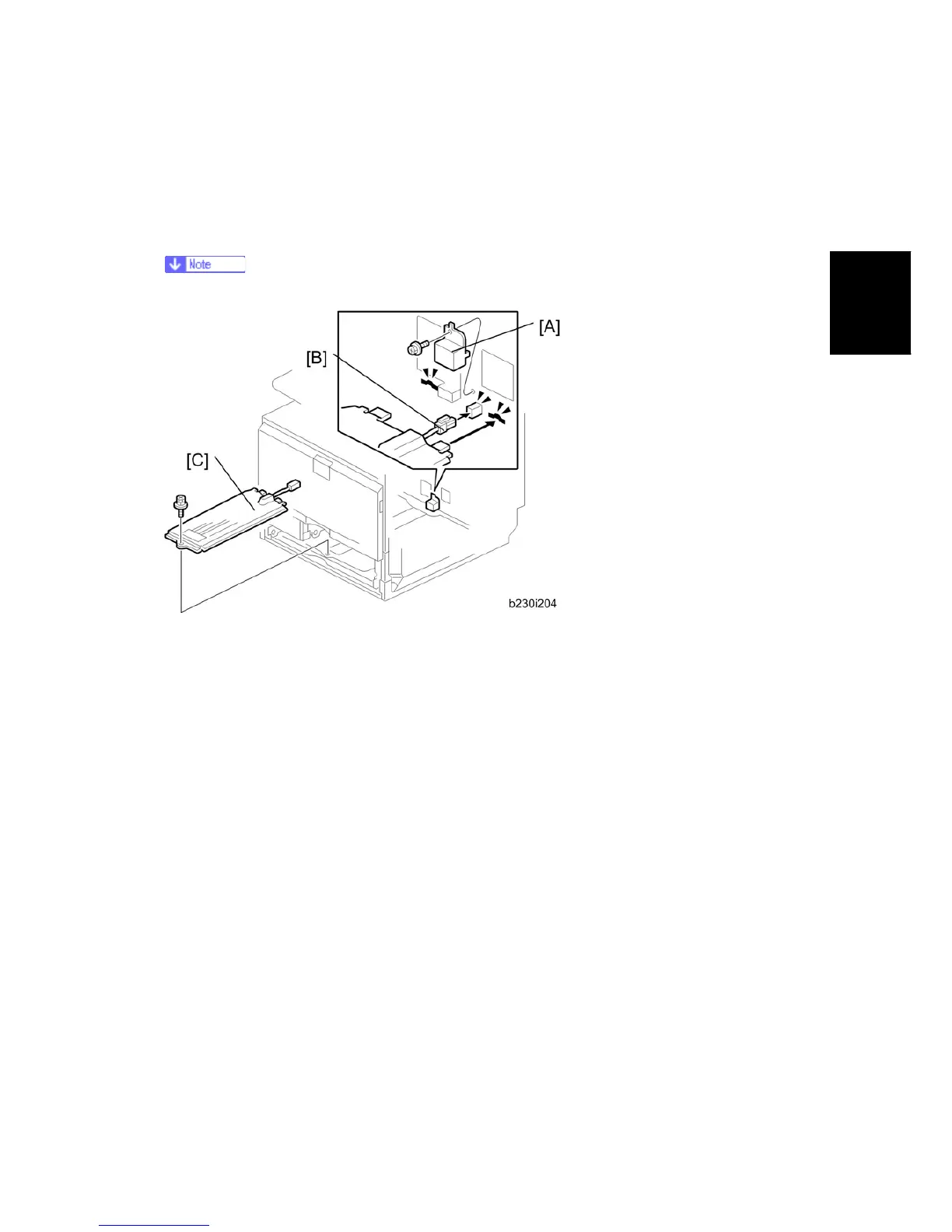

1. Remove trays 1 and 2 from the machine.
2. Remove the connector cover [A] ( x 1).
3. Connect the connector [B] of the heater to the connector of the main machine.
4. Install the heater [C] inside the machine ( x 1)
5. Reassemble the machine.
